Special Features

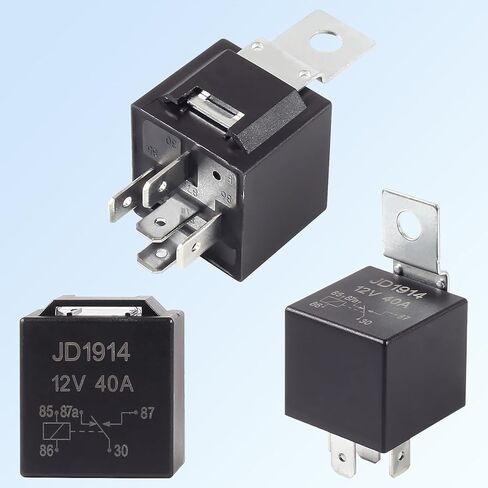

30A/40A Relay: These 5 pin relays are rated at 12v 30A/40A (NO: 40A, NC: 30A), spdt heavy duty design relay switch. built in fuse.

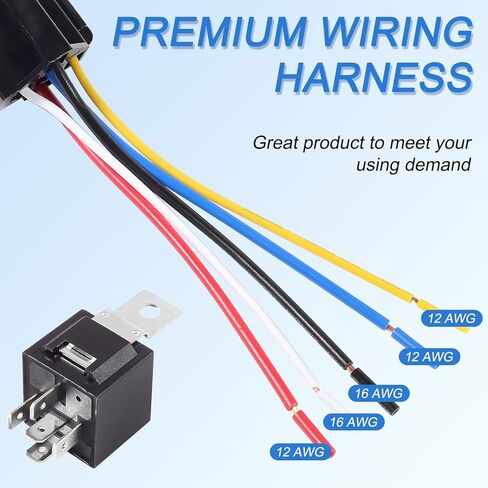

Pre-wired Harness: Heavy duty 12/16 AWG wiring harness. Black - 16AWG Pin85, White - 16AWG Pin86, Red - 12AWG Pin30 Yellow - 12AWG Pin87a, and Blue - 12AWG Pin87
Easy to Installation: The Car Relay interlocking mounting design of unique male and female slot on each socket edge, connect relays together and manage cables easily, offering clean and neat installation.
Waterproof: The 12v 5Pin relays are tightly sealed with strong cap and seal ring, excellent performance of waterproof, dust proof and moisture proof, works well in any weather conditions
Wide Application: The waterproof SPDT relay acts as a bridge between switches and devices, which helps to achieve controlling high rating devices by small rating switches, suitable for auto, car, truck, marine boat, etc.

Description

12V 4PIN Fused Car Relay with Socket Harness for Automotive Truck Van Motorcycle Boat
Specification:
Contact Form: 1A,1B,1C,1U,2A
Contact Material: AgSno2
Max Operating Current: 40A
Max Operating Voltage: 30V DC
NO (Normal Open) 40A 14VDC
NC (Normal Closed) 30A 14VDC Max.
Insulation Resistance: 100MΩ
Dielectric Strength: 500VAC/M（Coil and Contact）
Ambient Temperature: -40°C~+85°C
Operate/Release Time: 10ms/10ms
Terminal Type: Terminal

Features:
Easy Installation Mounting Tab
Fuse Protected. Built-in 30 Amp Fuse
Socket and Harness includes for easy wiring
Color-coded Wires

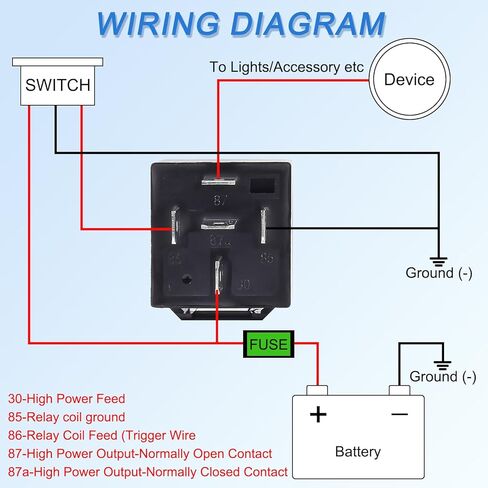

Wire Specifications:
Black-16AWG Ground(85)
Red-12AWG VDC(30A)
White-16AWG Trigger(86)
Blue-12AWG Output N/O(87)
Yellow-12AWG Pin87a

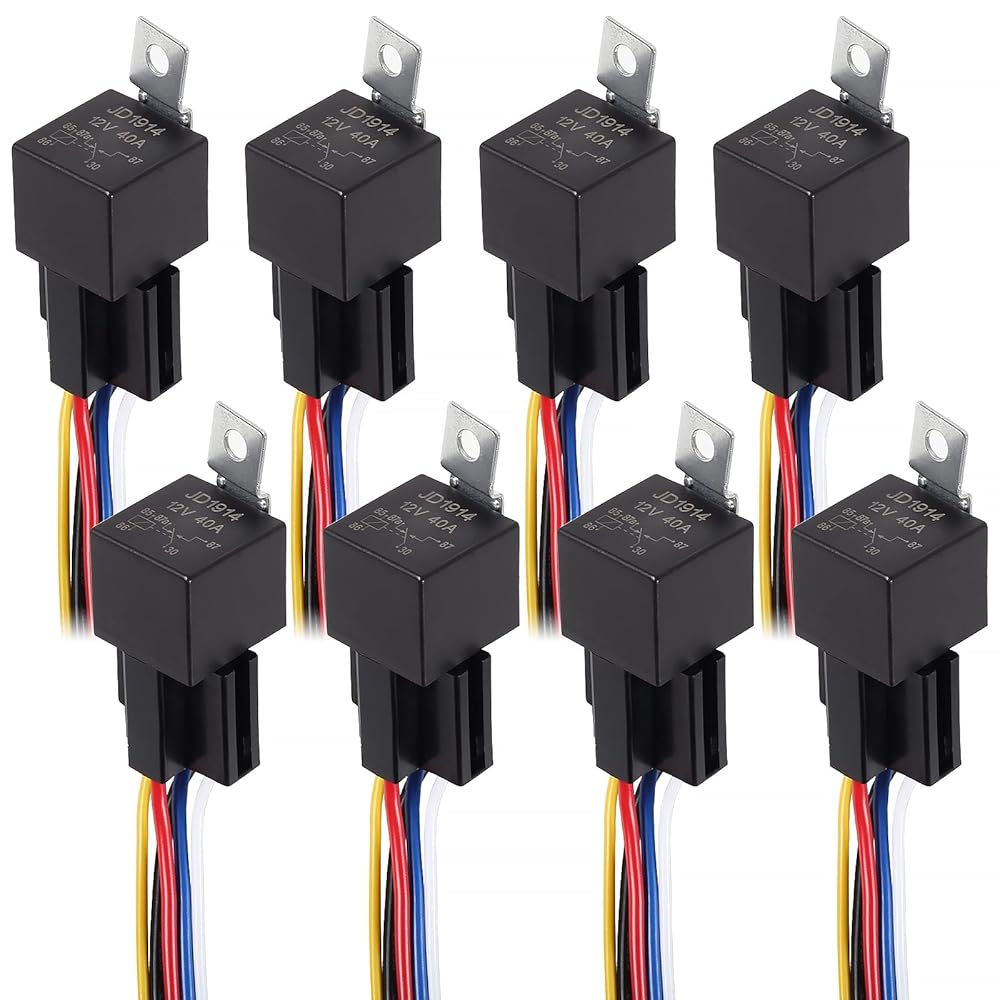

Package includes:
8 x Relays
8 x Harness Sockets
8 x 30Amp blade fuse(built in the fuse)
