Special Features

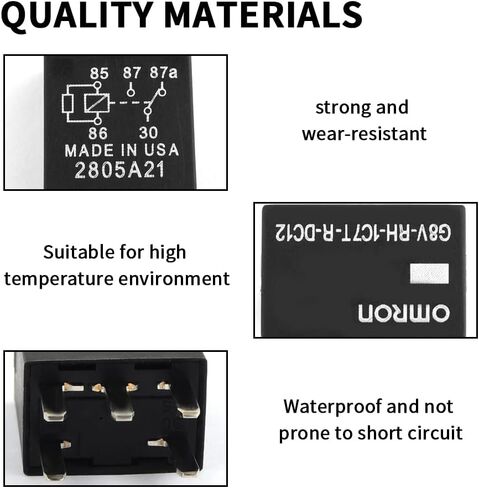

🔌 Quality Materials: The case of the 12V relay is made of quality plastic material, which is sturdy and wear-resistant, and not easy to be deformed or broken. Together with the highly conductive metal pins, they can be used normally under high or low temperature conditions. And our products undergo strict quality control throughout the production process, so each relay is durable.

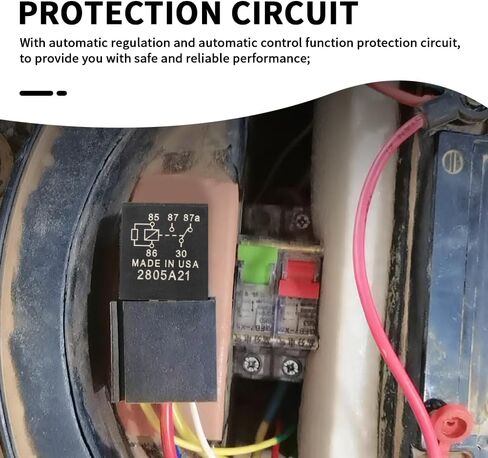

🔌 Protection Circuit: This automotive relay has the function of automatic adjustment and protection circuit, which can provide you with safe and reliable performance, and the connection is more efficient and stable. And our relays are also strong in sealing and water resistant, not easy to short-circuit, long service life, you can rest assured that you can use.
🔌 Wide Application: Our relay model number is G8V-RH-1C7T-R-DC12 with 5 pin design. It is suitable for most 12 VDC electric vehicles on the market, such as automobiles, ships and motorboats. And it is widely used in various electrical systems, such as fuel pumps, spark starters, power windows, door locks and lighting systems.

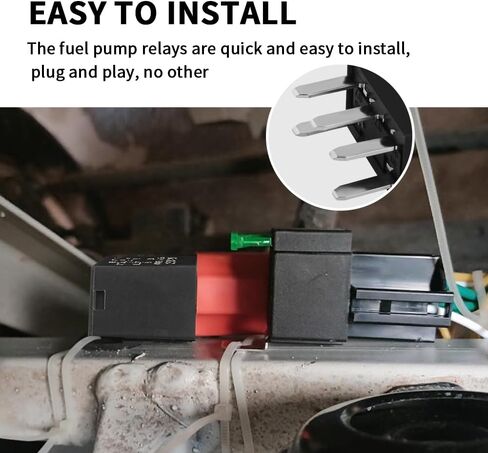

🔌 Easy To Install: The fuel pump relays are quick and easy to install, plug and play, no other installation tools are required. All you need to do is connect our relays to the wires and they are ready to operate. Please check the relay model number and picture carefully before you purchase, our product will be your ideal choice to replace the original relay!

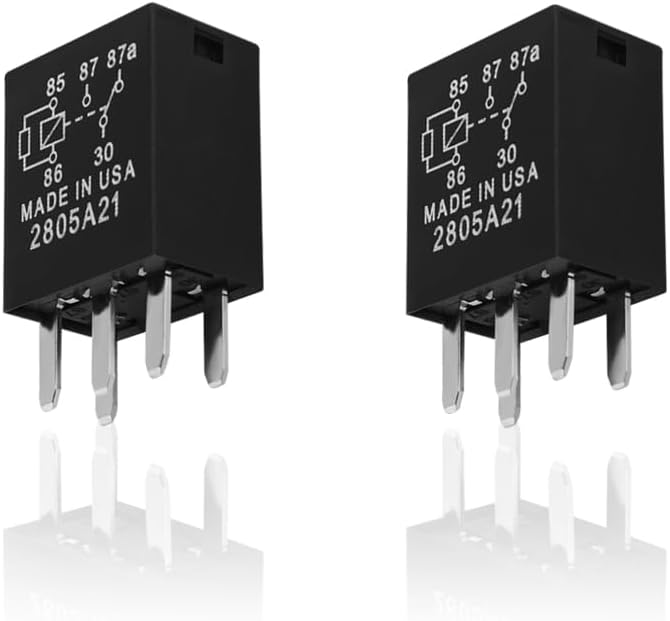

🔌 Buyer's Guide: This 5 pin relay size is 1.40x0.90x0.60 inches, which can be used to directly replace the original old or broken relay. And we have prepared 2-piece pack and 4-piece pack for you to choose, the quantity is sufficient to meet your daily use and replacement needs, and the extra you can spare or share with your family and friends.

Description

IDEAL REPLACEMENT FOR ORIGINAL RELAYS!

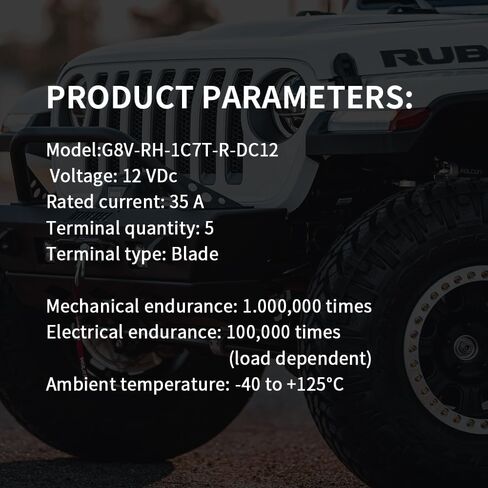

🔌 Product Parameters:
▨ Model: G8V-RH-1C7T-R-DC12
▨ Voltage: 12 VDC
▨ Rated current: 35 A
▨ Terminal quantity: 5
▨ Terminal type: Blade
▨ Voltage drop between terminals:
➯ N.O. side: 150mV or less, 10A
➯ N.C. side: 175mV or less, 10A
▨ Operating time: Max. 10ms at 14V (Normally 4ms)
▨ Release time: Max. 10ms at 14V (Normally 1.8ms)
▨ Insulation resistance:
➯ Between coil and terminal: 20MΩ or more
➯ Between homopolar contacts: 20MΩ or more
▨ Withstand voltage:
➯ Between coil and terminal: AC500V, for 1 minute
➯ Between homopolar contacts: AC500V, for 1 minute
▨ Vibration tolerance:
➯ Durability: 33Hz 43.1m/s2
➯ Malfunction: 20 to 500Hz 43.1m/s2
▨ Mechanical endurance: 1,000,000 times
▨ Electrical endurance: 100,000 times (load dependent)
▨ Ambient temperature: -40 to +125℃
▨ Ambient humidity: 35 to 95%RH

🔌 Product Information:

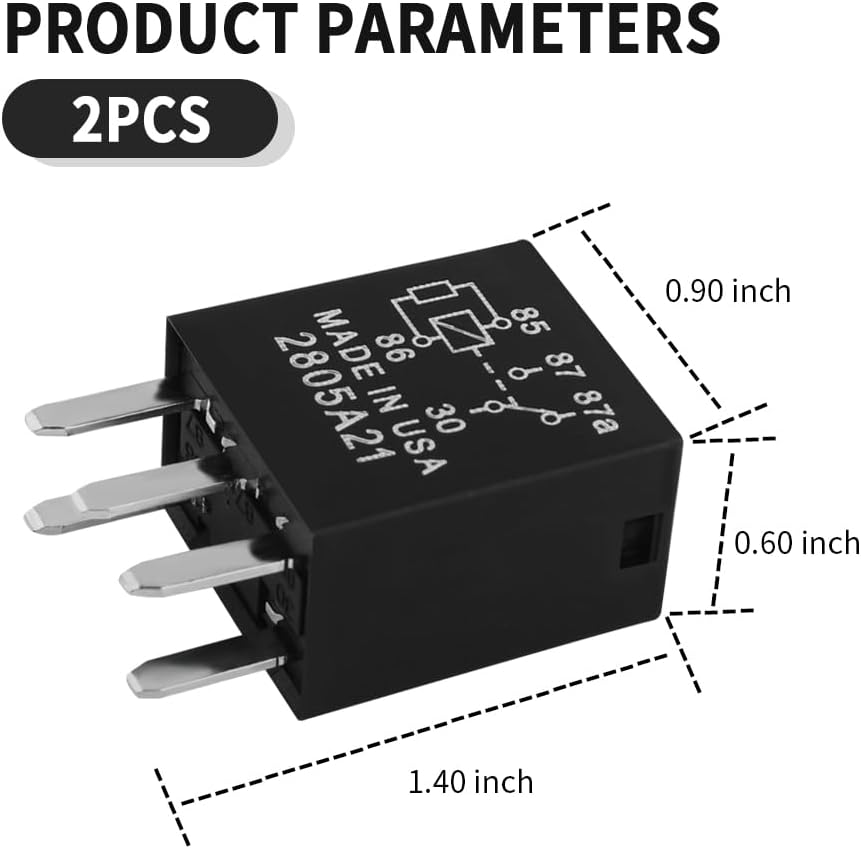

▨ Size: 1.40x0.90x0.60 inch
▨ Weight: 2PCS: 1.39 oz/4PCS: 2.73 oz
▨ Material: Plastic, Metal
▨ Color: Black

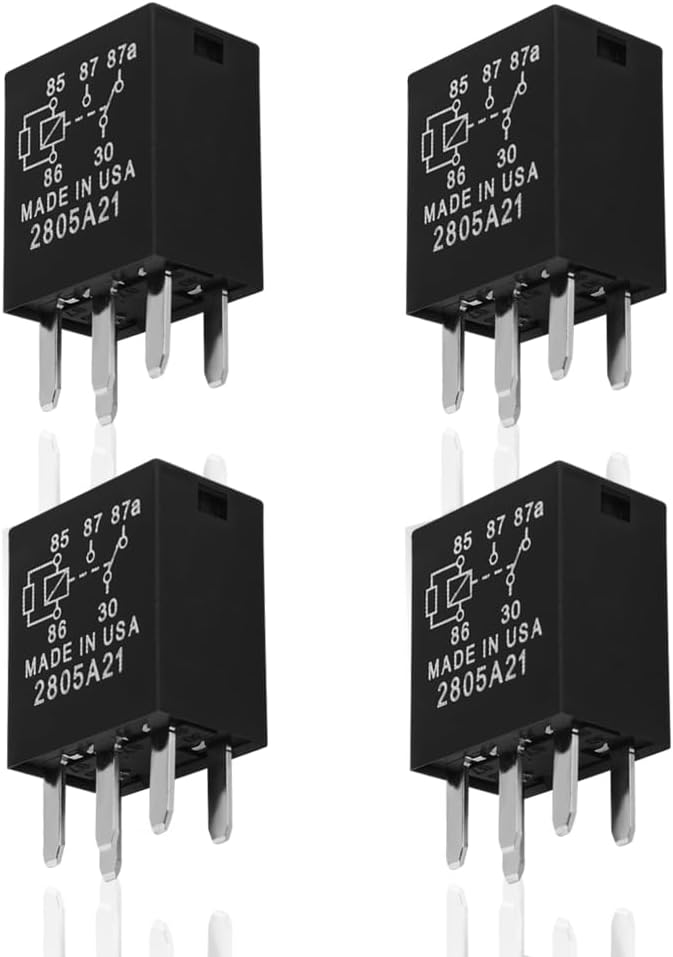

▨ Package: 2PCS/4PCS 35A 5 Pin Relay

🔌 Product Feature & Function:
▨ Feature: 5 pin, sturdy and wear-resistant, highly conductive, plug and play.
▨ Function: For the replacement of relays in various electrical systems.
