Core Control Module
The control module is the core electronic control unit of the electric scooter, responsible for battery power supply, throttle input, motor output and safety protection functions

Power and Speed Control
Throttle response: Receive the input signal of the throttle handle and respond quickly to the motor speed command>
24V system support: Provide 24V high voltage support and provide higher power output

Safety Protection Function

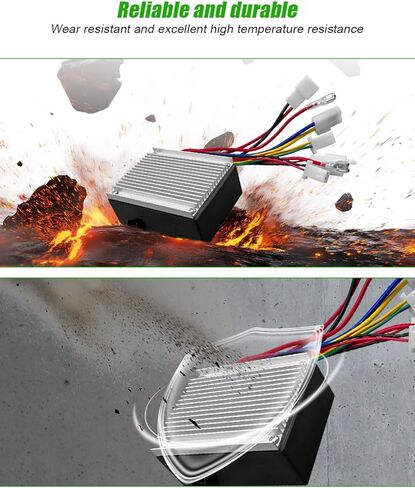

Overheat protection: Monitor the controller temperature to avoid damage due to overload or long-term high-load operation
Overcurrent/short circuit protection: prevent circuit abnormality and provide a safe operating environment

Instructions for Use:
1. Make sure the throttle rotates in a reasonable direction (usually inward rotation accelerates) and does not conflict with the brake handle
2. Left-handed users can try to modify the throttle to the left, but the line and controller need to be adjusted
3. Check whether it is sensitive after turning on to avoid poor contact

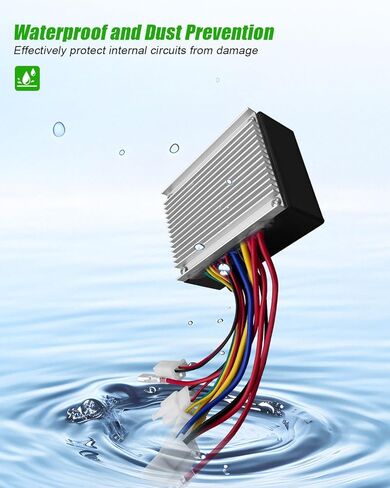

4. Waterproofing (such as silicone seal or waterproof box) is required to avoid water ingress and short circuit in rainy days. Poor heat dissipation requires additional heat sink. Avoid wrapping the controller with insulation material, high temperature will trigger protection shutdown
5. Avoid violent plugging and unplugging during charging, which may damage the pins. Pay attention to the positive and negative directions when inserting
>
Compatible Models
Widely suitable for 24V electric scooters
Fit for Razor E200 E300 electric scooter
Fit for MX350 (V33+) SUV
Fit for E300 (V13+) E200 (V13+) electric scooter control module
