Special note:
While not in use, the red handle shall always be at the off position.
Features:
1.Uses shop air.
2.Nitrogen compatible.
3.Quick smoke generation.
4.Environment friendly and non-hazard smoke. 5.Smoke flow control

Instruction:

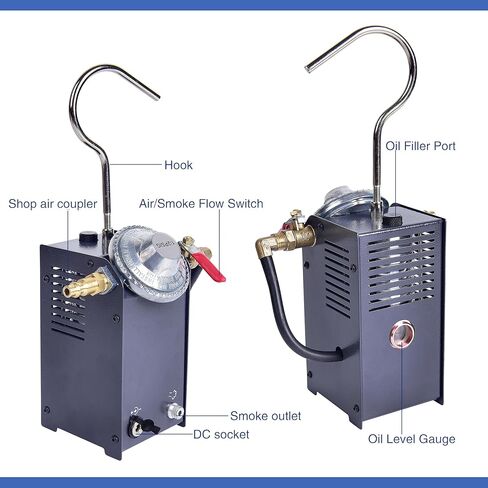

1. Mount the hook on to the unit
2. Mount the shop air adapter to the unit
3.Plug the power cord into the socket
4. Screw on the smokehose to the unit
5.Fill ( mineral oil based ) smoke juice into the unit from the refill port on the top
6. Connect shop air supply
7. Connect 12V vehicle power supply then the unit will generate smoke
8. Turn the red handle anti-clockwise to adjust the flow rate to a proper level

Factor:
1.Output pressure:0.5PSI
2.Output Volume: ＜8LPM
3. Power Supplier: DC 12V
4. Current: 6AMP

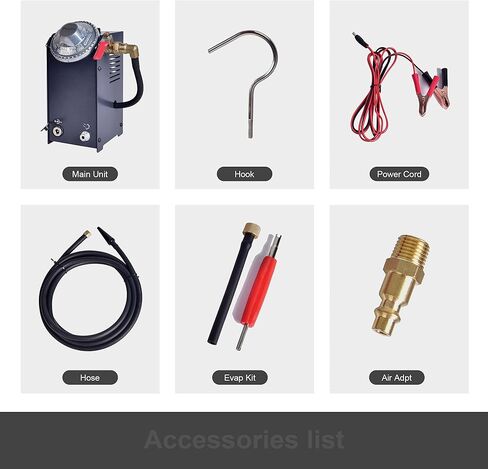

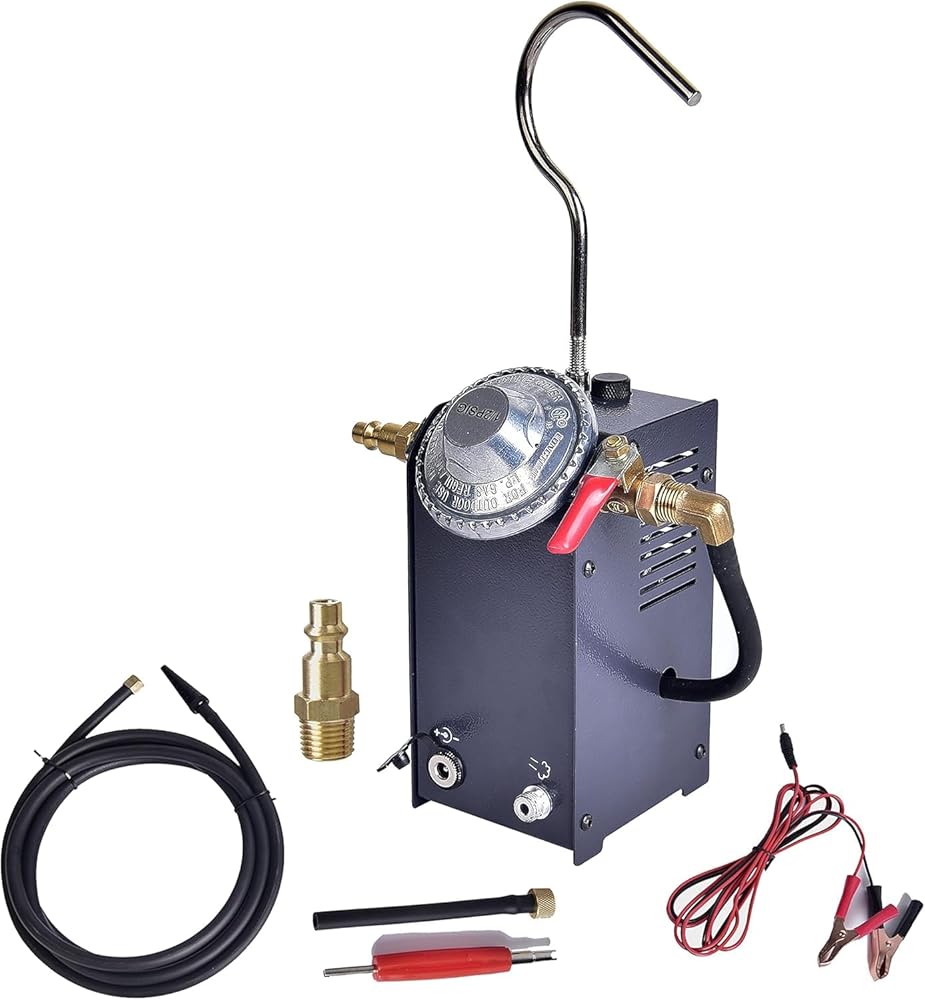

Package Includes:
1. 1 X Main Unit
2. 1 X Hook
3. 1 X Power Cors
4. 1 X Hose
5. 1 X EVAP Kit
6. 1 X Air ADPT
