Package Includes:

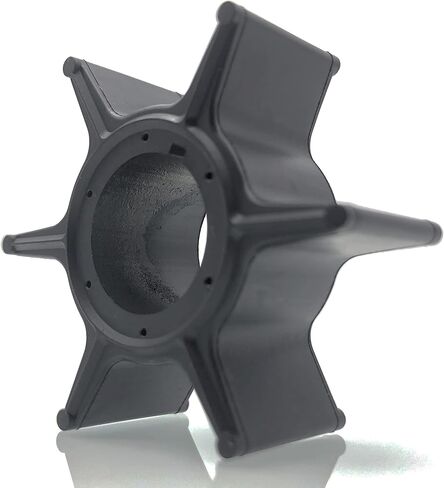

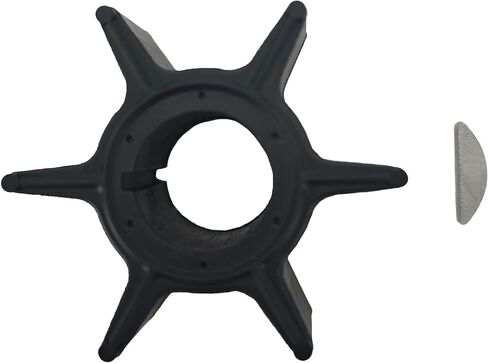

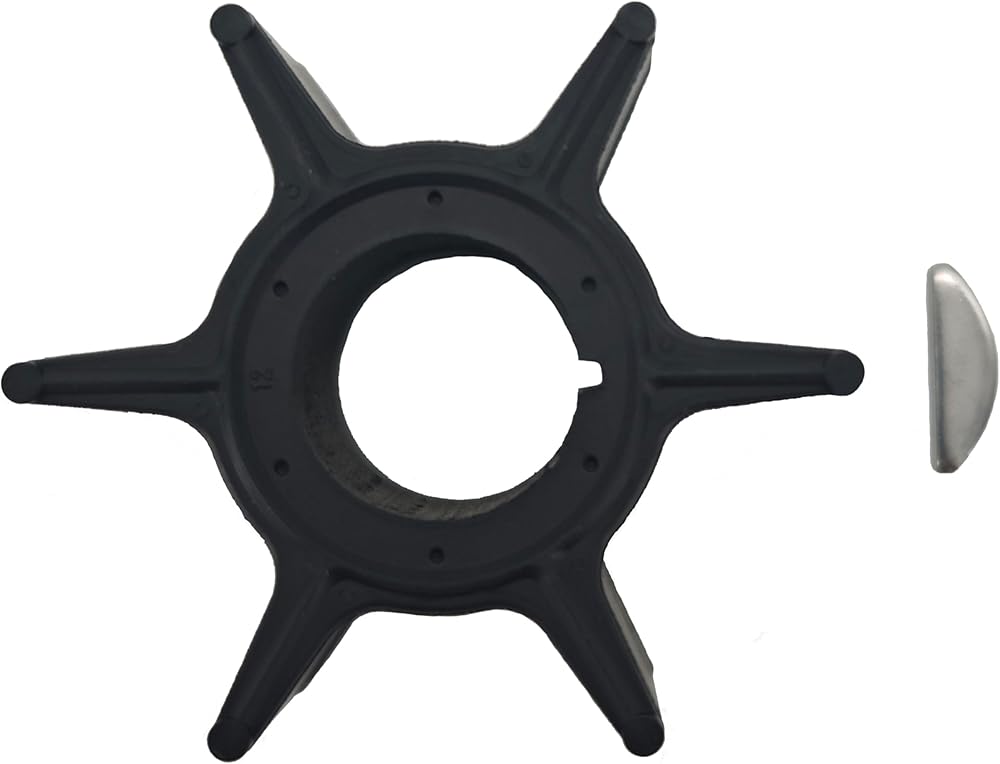

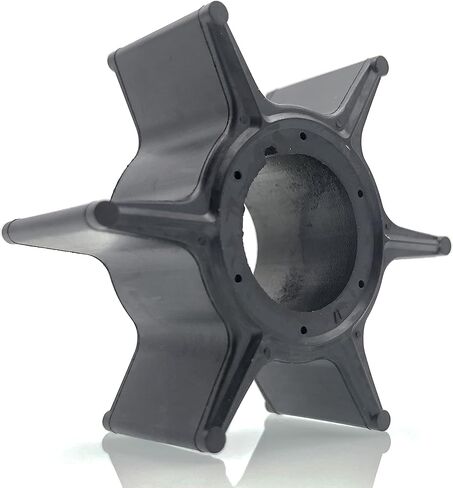

1* Water Pump impeller
1* Key
Dimension ：
Number of Blades:6
Height:20.00mm
Overall Diameter:50.00mm
Shaft Diameter:17.00mm
Net Weight:15g
Replace:
For Nissan Tohatsu 3C8-65021-0,3C8-65021-1,3C8-65021-2,3C8-65021-2M
Sierra 18-8922
Mercury 161542
CEF 500379

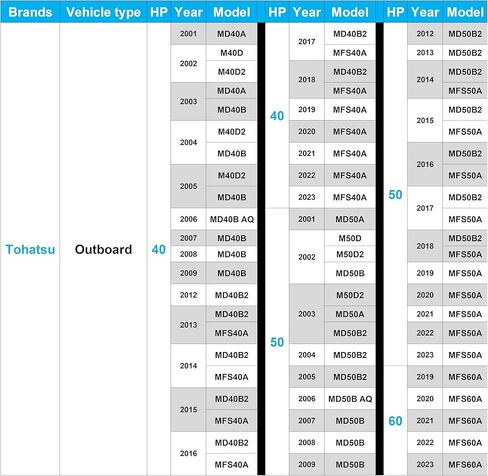

APPLICATION(For reference only):
Fits Tohatsu outboard engines:
Nissan Tohatsu 40 HP 3-cyl (D models)
Nissan Tohatsu 40 HP TLDI 2-Stroke(All models)
Nissan Tohatsu 50 HP 3-cyl (D models)
Nissan Tohatsu 50 HP TLDI 2-Stroke (All models)
Nissan Tohatsu 70 HP TLDI 2-Stroke
Nissan Tohatsu 90 HP TLDI 2-Stroke
Tohatsu 2-Stroke - M40D, M40D2, M50D & M50D2
Tohatsu 2-Stroke TLDI - MD30B2, MD40A, MD40B, MD40B2, MD50A & MD50B2

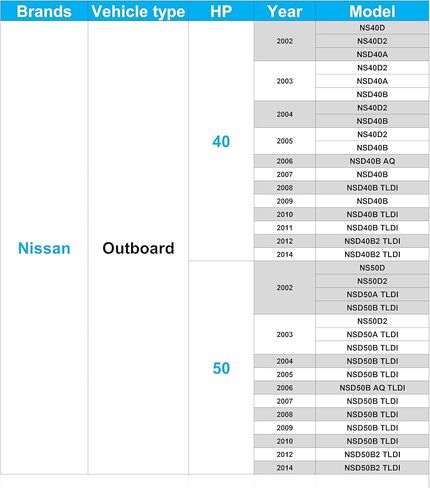

Nissan 2-stroke NSD40 NSD50 NS40 NS50
Installation steps：
1.Before installing the new impeller, lightly coat the wear plate and the inside of the pump housing with marine grease to lubricate the impeller until water is flowing through the pump.
2.Press the pump housing down over the impeller while turning the drive shaft clockwise to get the impeller vanes facing the proper direction
3.Before reinstalling the lower unit, lubricate the drive shaft splines with marine grease.
Pay attention:During installation, take care to properly align the shift linkage mechanism with the lower. This is an easy mistake for newbies to make
Kind tips:This product does not come with an instruction manual.Please find a professional to install it. If there is
a product problem, please contact me
