Cylinder Piston Gaskets Top End Kit

Replacement for
Replacement for Big Red 700 MUV700 2009-2013
Replacement for Pioneer 700 SXS700M2 2009 2014-2020
Replacement for Pioneer 700 SXS700M2D 2017-2021
Replacement for Pioneer 700-4 SXS700M4 2014-2021
Replacement for Pioneer 700-4 SXS700M4D 2017-2021
Replacement for Rincon 680 TRX680FA5 2019-2022
Replacement for Rincon 680 TRX680FA 2018
Replacement for Rincon 680 TRX680FA Camo 2017
Replacement for Rincon 680 TRX680FA 4x4 2006-2015
Replacement for Rincon 680 TRX680FGA 4x4 2006-2010

Replacement for Part Number
12100-HN8-A60
12100-HN8-A58
13101-HN8-A60
13111-HN8-A60
13010-HN8-A59
12251-HN8-A59
12191-HN8-002
90602-MBN-668

Tips
Please verify the model and part number before purchasing to make sure they meet the requirements

Specifications

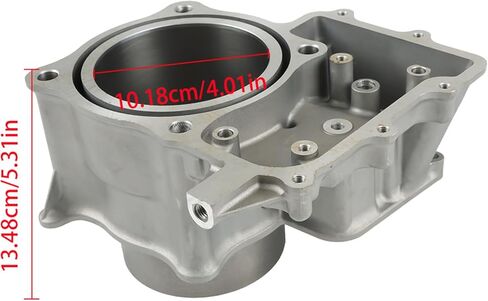

Cylinder Inner Diameter: 4.01 / 102mm
Cylinder Height: 75.25 / 310mm
Cylinder Length: 5.31 / 135mm
Cylinder Width: 7.95 / 202mm
Piston Height: 0.74 / 19mm

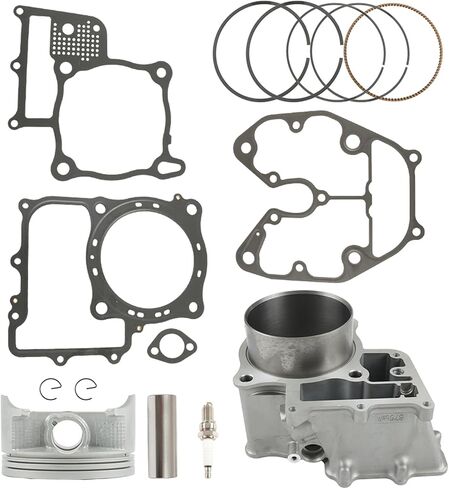

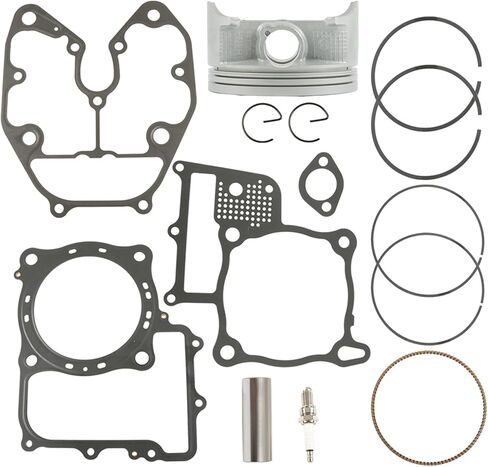

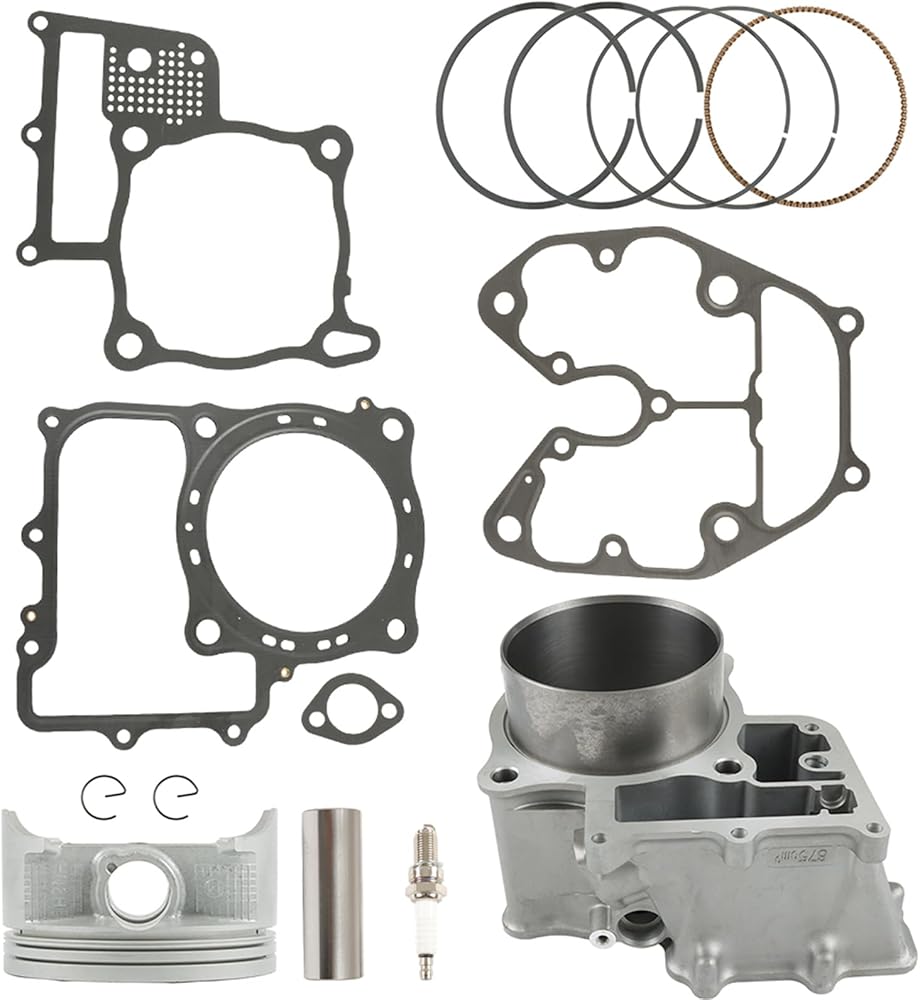

Package Includes

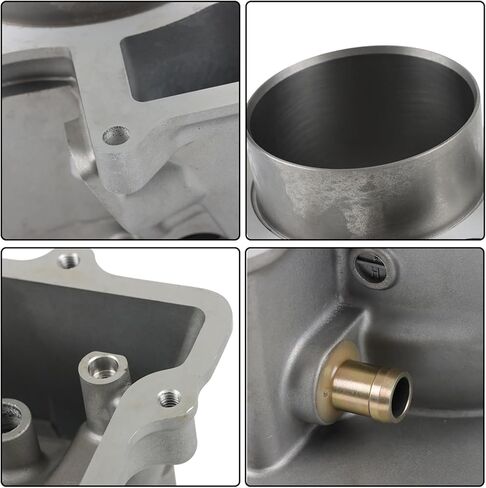

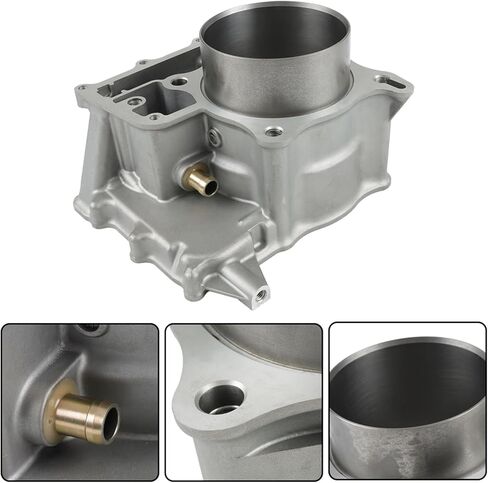

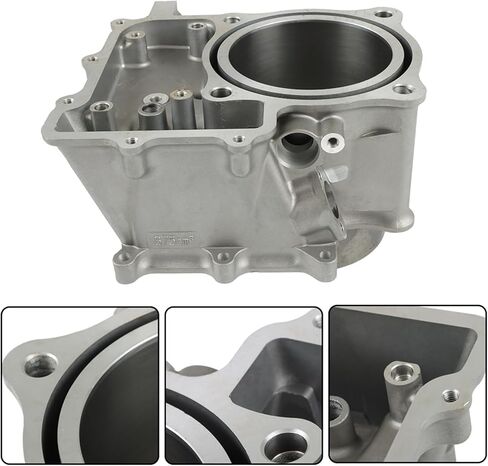

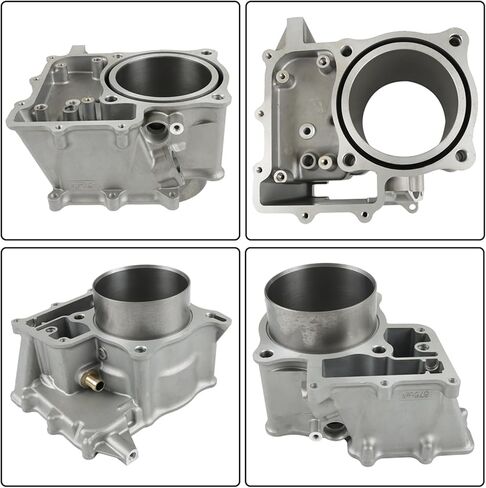

1x Cylinder

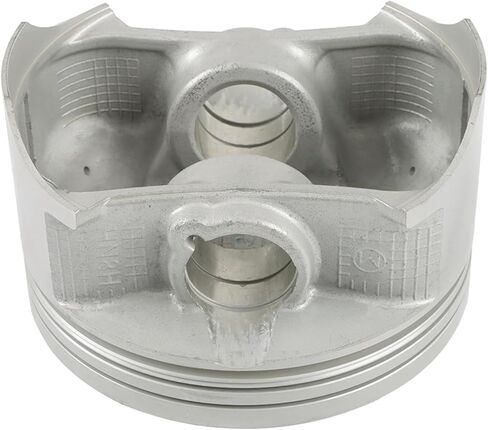

1x Piston
1x Base gasket
1x Head gasket
1x Wrist pin clips
(parts as shown)
