Package Includes:

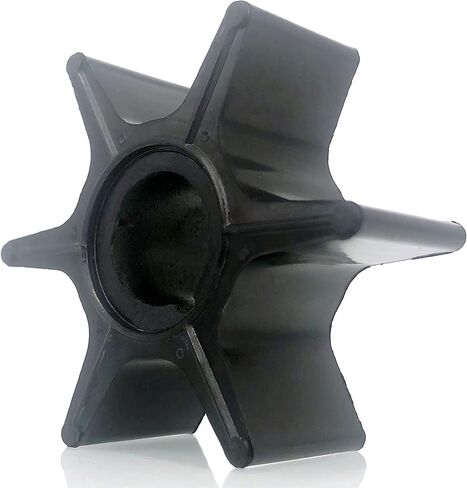

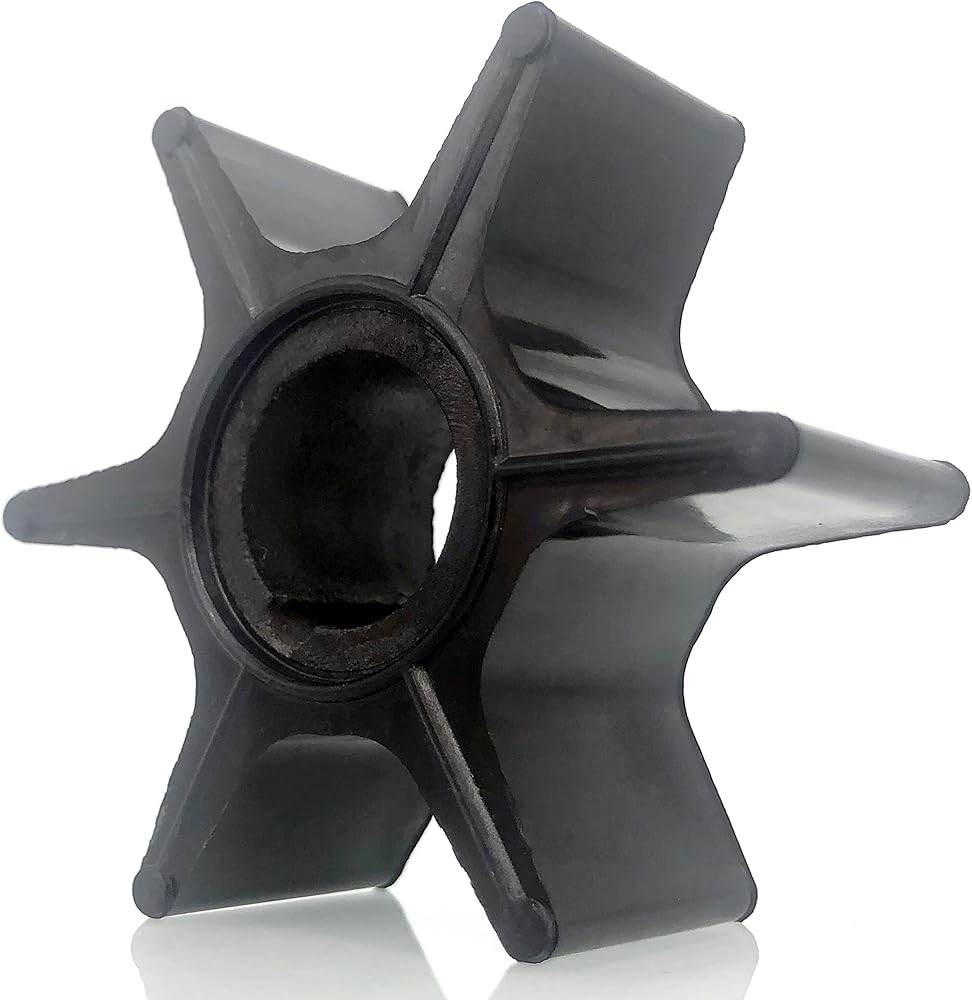

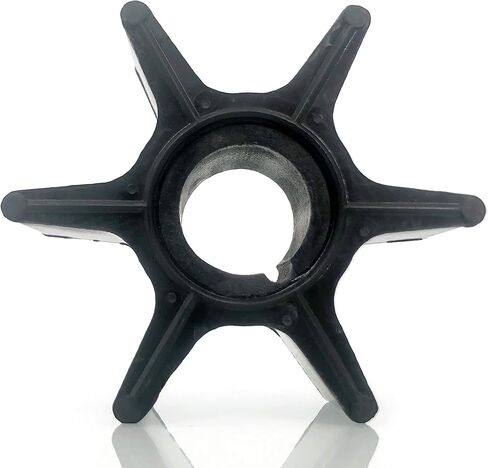

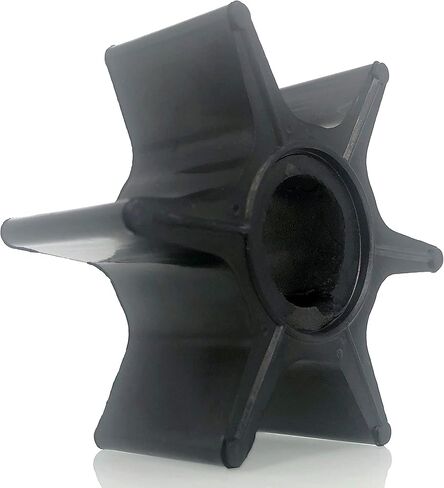

1* Water Pump impeller
Dimension ：
Number of Blades:6
Height:23.30mm
Overall Diameter:60.84mm
Shaft Diameter:17.20mm
Net Weight:32g
Replace:
For Nissan Tohatsu 353650210,53650210M
Sierra 18-45404

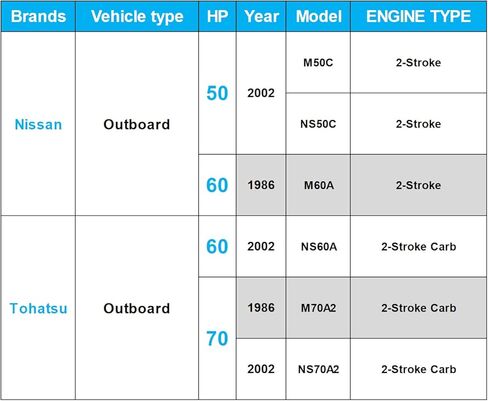

APPLICATION(For reference only):
Nissan:
50HP 2002 M50C NS50C 2 Stroke
60HP 1986 M60A 2 Stroke
Tohatsu:
60HP 2002 NS60A 2-Stroke Carb
70HP 1986 M70A2 2-Stroke Carb
70HP 2002 NS70A2 2-Stroke Carb
Installation steps：
1.Before installing the new impeller, lightly coat the wear plate and the inside of the pump housing with marine grease to lubricate the impeller until water is flowing through the pump.
2.Press the pump housing down over the impeller while turning the drive shaft clockwise to get the impeller vanes facing the proper direction
3.Before reinstalling the lower unit, lubricate the drive shaft splines with marine grease.
Pay attention:During installation, take care to properly align the shift linkage mechanism with the lower. This is an easy mistake for newbies to make.
Kind tips:This product does not come with an instruction manual.Please find a professional to install it. If there is
a product problem, please contact me.
