Package Includes:

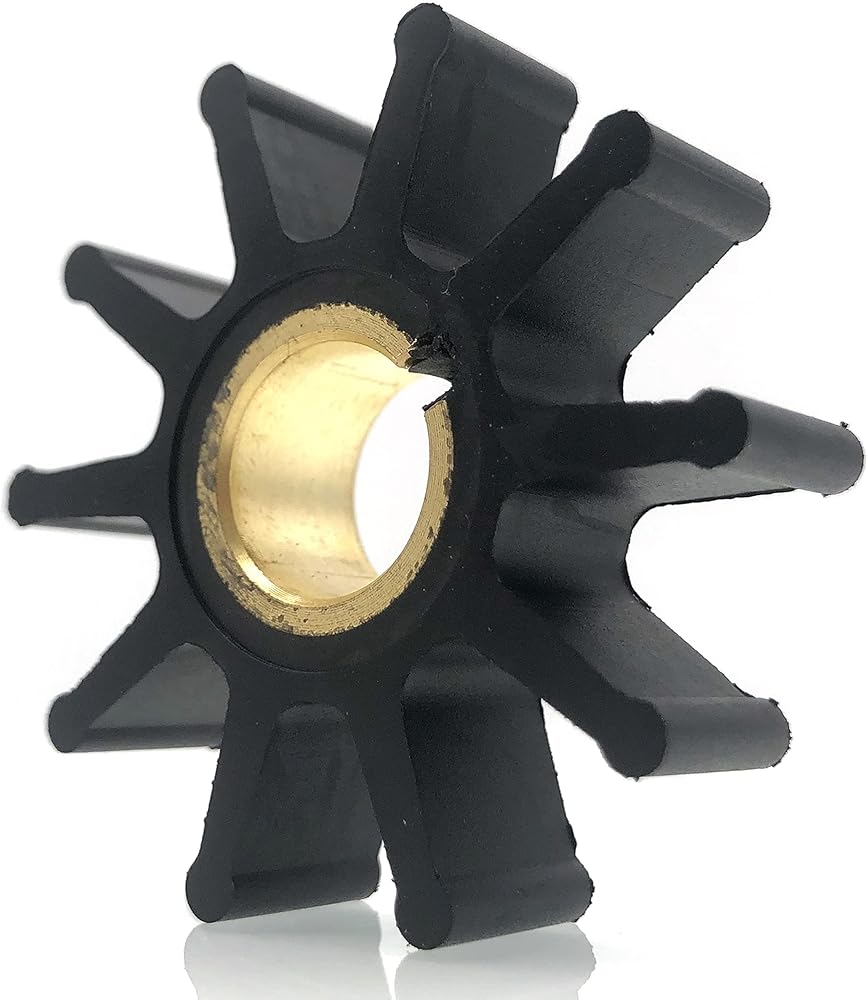

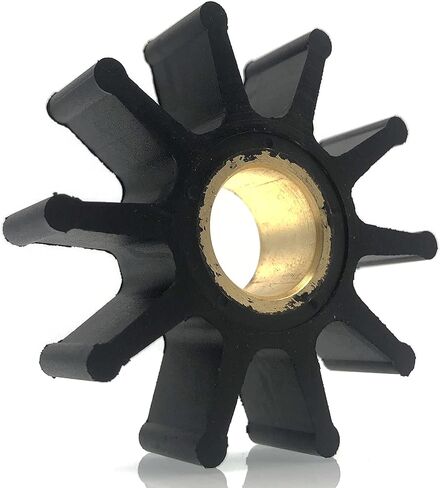

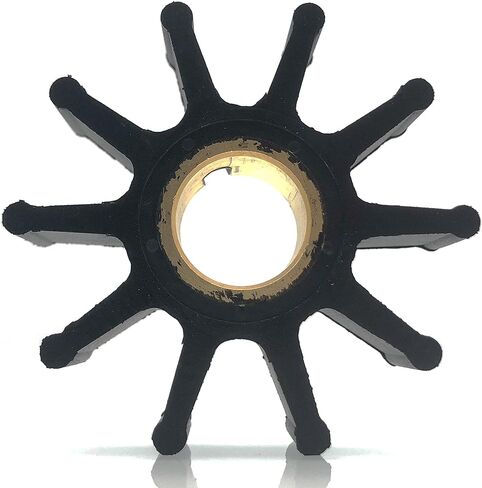

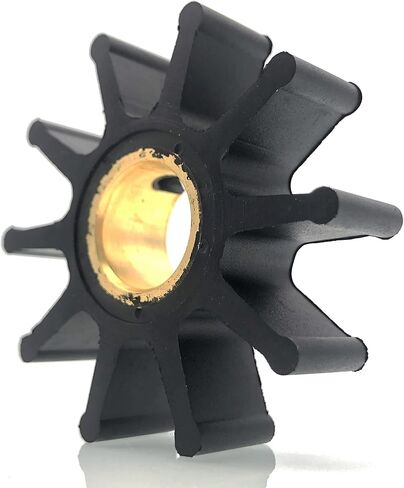

1* Water Pump impeller
Dimension :
Number of Blades:10
Net Weight:23g
Height:14.62mm
External Impeller Overall Diameter: 57.26mm
Internal Shaft Insert Diameter:16.05mm
Replace:
Mercury Chrysler Force 47-F40065-2,F40065-1,F40065
Sierra 18-3084
APPLICATION(For reference only):
Fits Chrysler Force Outboard models:Chrysler/Force 2 stroke
35hp , 1972-1982
45hp, 1972-1982
55hp, 1976-1982
CHRYSLER 35HP/45HP
CHRYSLER 55HP (554 thru 559HA, HD)
Installation steps:
1.Before installing the new impeller, lightly coat the wear plate and the inside of the pump housing with marine grease to lubricate the impeller until water is flowing through the pump.
2.Press the pump housing down over the impeller while turning the drive shaft clockwise to get the impeller vanes facing the proper direction
3.Before reinstalling the lower unit, lubricate the drive shaft splines with marine grease.
Pay attention:During installation, take care to properly align the shift linkage mechanism with the lower. This is an easy mistake for newbies to make
Kind tips:This product does not come with an instruction manual.Please find a professional to install it. If there is
a product problem, please contact me
