(SEE PRODUCT IMAGES FOR INSTRUCTIONS WITH IMAGES, 2 PAGES)

INSTRUCTIONS- ADDING ZIGBEE TEMPERATURE SENSOR TO SMARTTHINGS

ATTENTION – PLEASE FOLLOW THESE STEPS TO PROPERLY ADD THE TEMPERATURE SENSOR TO SMARTTHINGS

DO NOT INSTALL AAA BATTERIES UNTIL INSTRUCTED

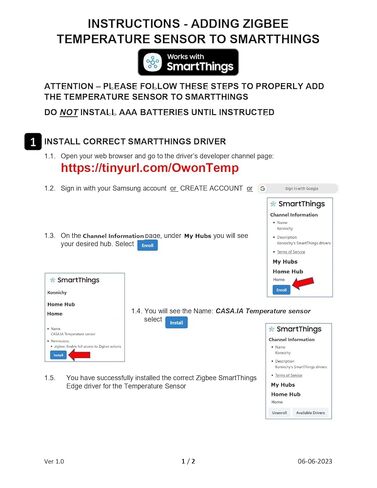

1 - INSTALL CORRECT SMARTTHINGS DRIVER

1.1. Open your web browser and go to the driver's developer channel page: (SEE INSTRUCTIONS IN IMAGES FOR LINK)
1.2. Sign in to your Samsung account (which you use for your SmartThings Hub)
1.3. On the CHANNEL INFORMATION page, under MY HUBS, you will see your desired hub, select ENROLL
1.4. You will see the Name: CASA.IA Temperature sensor, select INSTALL

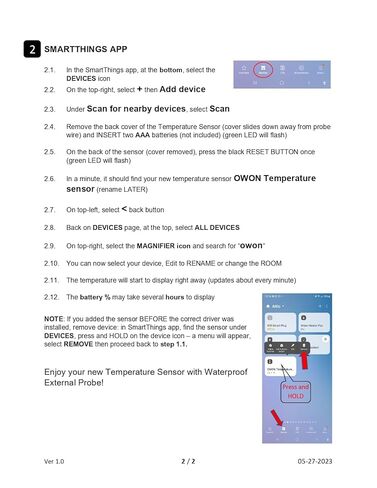

2 - SMARTTHINGS APP

2.1. In SmartThings app, at the bottom, select the DEVICES icon
2.2. On the top-right, select + then Add device
2.3. Under Scan for nearby devices, select Scan

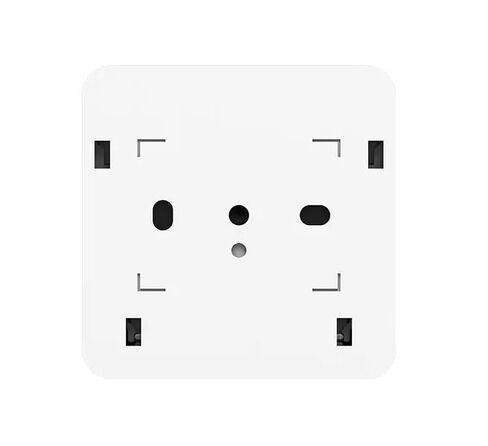

2.4. Remove back cover of the Temperature Sensor (cover slides down away from probe wire) and INSERT two AAA batteries (not included) (green LED will flash)
2.5. On the back of sensor (cover removed), press the black RESET BUTTON once (green LED will flash)
2.6. In a minute, it should find your new temperature sensor OWON Temperature sensor (rename LATER)
2.7. On top-left, select back button
2.8. Back on DEVICES page, at the top, select ALL DEVICES
2.9. On top-right, select the MAGNIFIER icon and search for “owon”
2.10. You can now select your device, Edit to RENAME or change the ROOM
2.11. The temperature will start to display right away
2.12. Battery % may take several hours to display

Enjoy your new Temperature Sensor!
