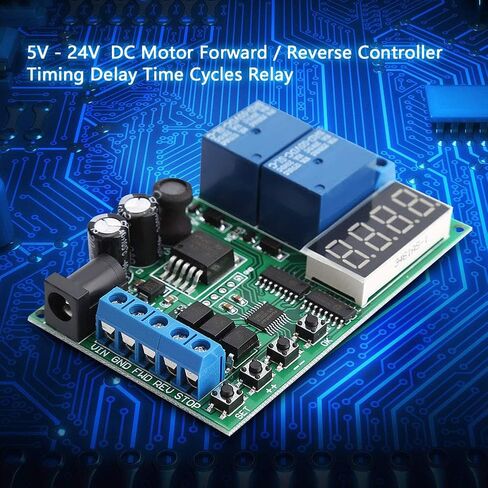

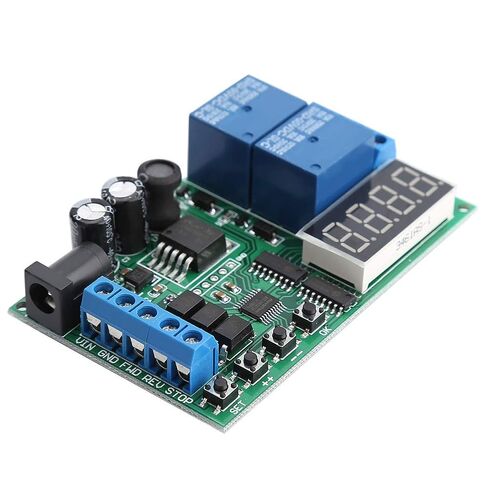

Time Delay Relay, Timer Relay, 5V - 24V Motor Forward/Reverse Controller Timing Delay Time Cycles Relay Motor Controller Board Delay Relay Module Smart Home Controller

KWD 2.500
Brand
Cosiki
– 1 +

Special Features

  • Working current: Time delay relay, (Normal Mode) standby current 41mA, working current 83mA; (Energy-Saving mode) Standby current 7mA, working current 44mA.
  • power supply (two power supplies cannot be powered at the same time): Power supply 1, DC 6.5-25V; Power supply 2, DC 5V
  • There are three input control port: Time delay relay, forward control(FWD), reverse control(), and stop control(STOP).

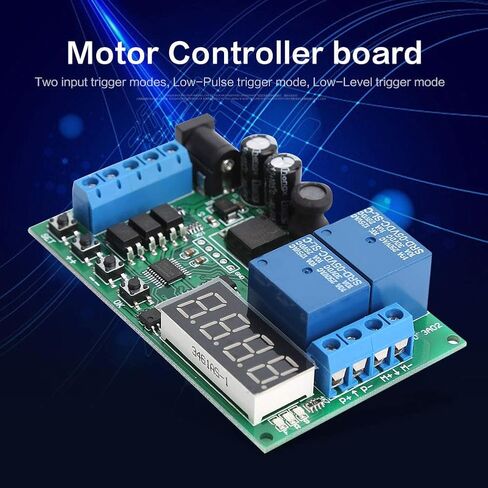

  • Timer relay,Two input modes, Low-Pulse mode, Low-Level mode
  • Delay time: 0.1-.9 seconds, 1-9999 seconds, 1-9999 minutes.

Description

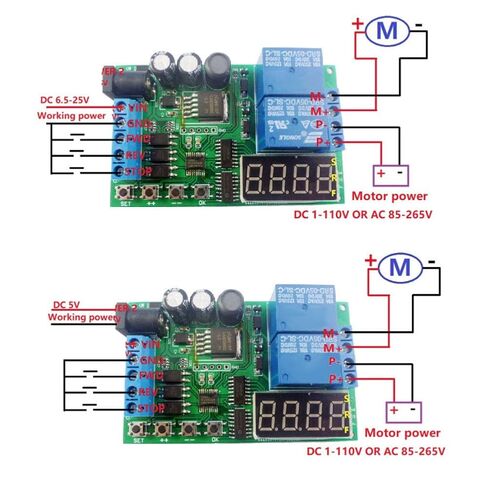

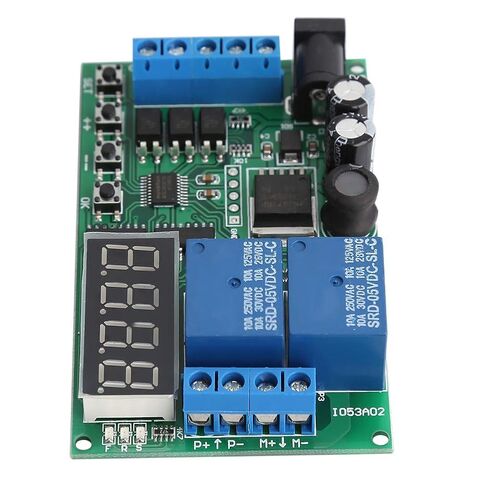

Port:

DC 5.5MM female : Power supply 1, DC 5V power supply.
VIN: Power 2 positive, DC 6.5-25V power supply
GND: Power supply 2 negative
FWD: Forward input control (partial Function-Mode is invalid)
: Reverse input control (partial Function-Mode is invalid)
STOP : Stop input control (partial Function-Mode is invalid)
M+: Motor positive
M-: Motor negative
P+: Positive terminal for motor power supply
P-: negative terminal for motor power supply
Specification:
Power supply: DC 6.5-25V, DC 5V
Working current: 83mA
Standby current: 41mA
Relay load current:
Delay time: 0.1-.9 seconds, 1-9999 seconds, 1-9999 minutes

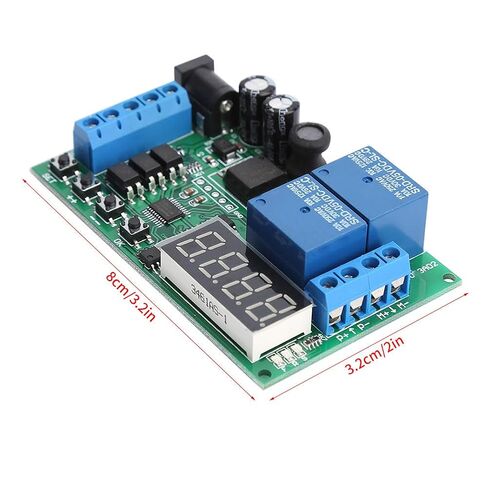

Size: 8*5cm/3.2*2in
Weight: Approx. 51g/1.8oz
mode:
1 low pulse (falling )
2 low level (rising )

Package list:
1 x Motor Controller board
