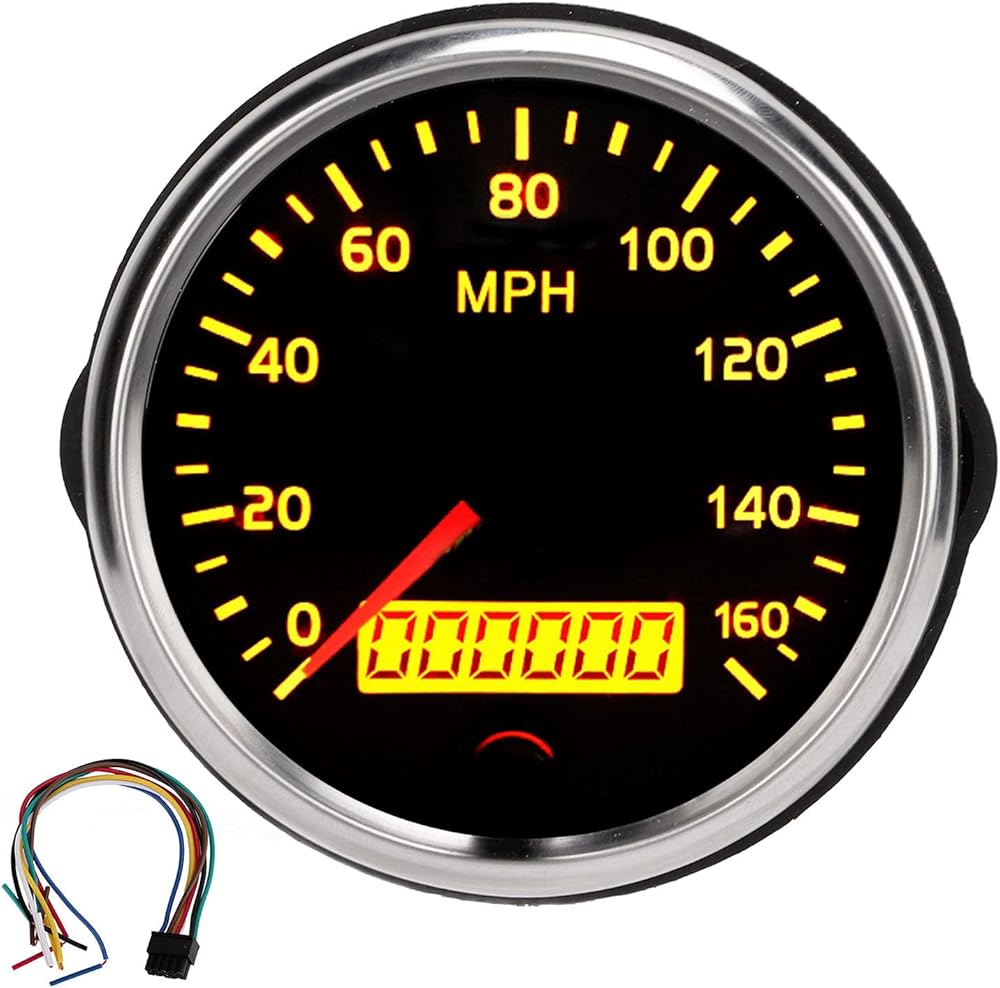

Speed Meter Gauge, 3.3in 12V/24V Speedometer 0‑160MPH IP67 Speed Gauge LCD Display with White Amber Backlight for Car Truck Boat

KWD 19.500
Brand
Qiilu
Weight
216 g
– 1 +

Special Features

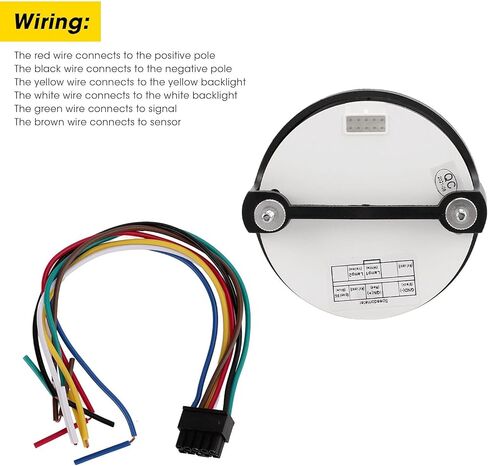

  • Widely used ---- speed table with a diameter of 85mm/3.3 inches has a wide range of applications, suitable for 1-8-cylinder gasoline engine and 12V 24V cars, trucks, boats, generators, gasoline engines, etc. Wiring: red line connection to the positive electrode, the black line connection to the negative electrode, the yellow line connects to the yellow backlight, the white wire is connected to the white backlight, the green wire is connected to the , and the brown wire is connected
  • High-precision ---- Speed ​​Gauge uses step motor to drive the pointer to accurately display the current speed, and the driver control is relatively simple. Step motor, low power consumption, longevity and high accuracy. 9-32V ultra-wide long-term working voltage, as long as 36V (≤1 minutes)

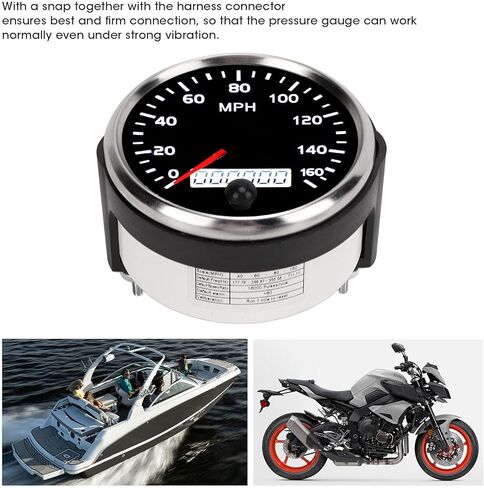

  • Function & Stable Connection ---- SpeedMeter can display the current speed and total mileage; quickly respond to step into the motor, you can install warnings and bee , and install everything you need. The buttons with a wiring beam connector can ensure a connection so that they can work normally even under strong vibration
  • Material ---- Speedometer is made of high-quality ABS + 316L stainless steel, which can be used in resistance, even in acidic, alkali and humid environments. Bending glass has a good anti -mist effect
  • Specifications ---- mode: LCD display, stepping motor, installation diameter: 85mm/3.3 inches, working voltage: 9-32V (12V/24V), backlight color: white or amber, indicator range: 0-160MPH, Work temperature: -30 ℃-+75 ℃, storage temperature: -40 ℃-+85 ℃, level: IP67

Description

How to Use:
1. Make a 85mm diameter hole on the panel (your cabin panel and instrument panel), insert the gauge into the hole, the panel corresponding to the instrument panel is marked with a , and make a small notch at this position, To ensure that there is at least a 85mm (3 3/8in) instrument panel on the back of the instrument.
2. After installing the gauge into the panel, screw it down with the fixing ring.
3. Connect the wires, the gauge shell is directly connected to the 12V/24V power supply.
4. Insert the wire harness and fix it firmly on the table.

Specification:
Item Type: Speedometer
Material: ABS + 316L Stainless Steel
Mode: LCD display, stepping motor

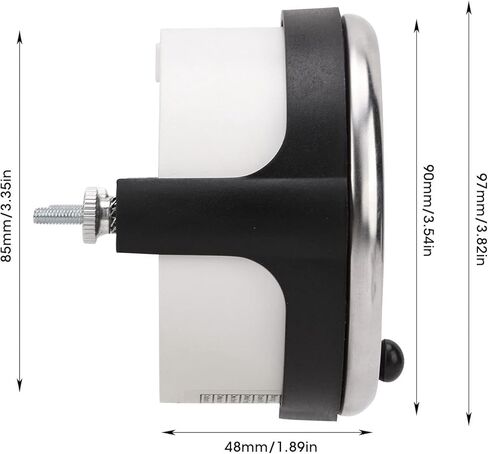

Installation Diameter: 85mm/3.3in
Working Voltage: 9-32V (12V/24V)

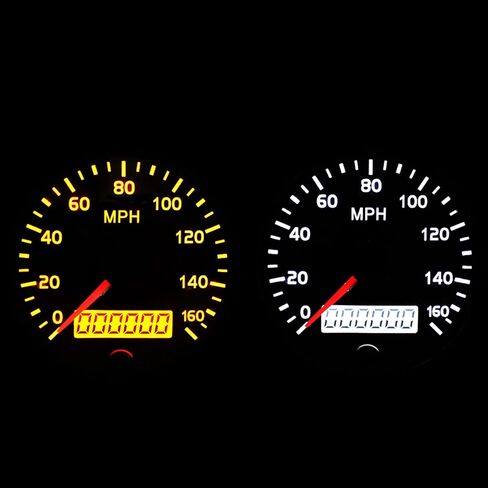

Backlight Color: White or amber
Indication Range: 0-160MPH
Working Temperature: -30?-+75?
Storage Temperature: -40?-+85?
Level: IP67
Function: Display current speed and total mileage; quick response to stepper motor, settable warning and buzzer, with everything needed for installation

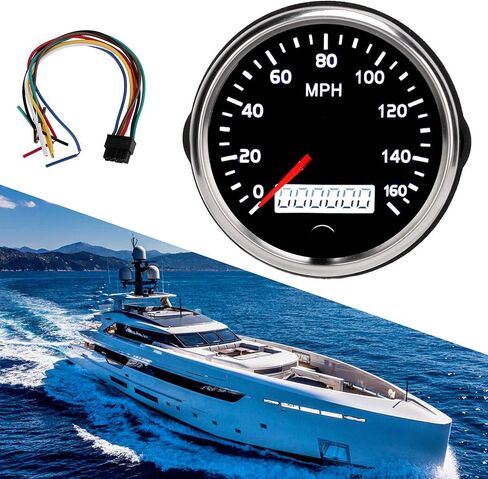

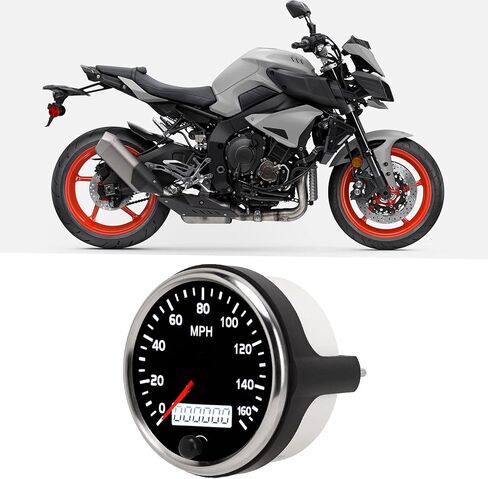

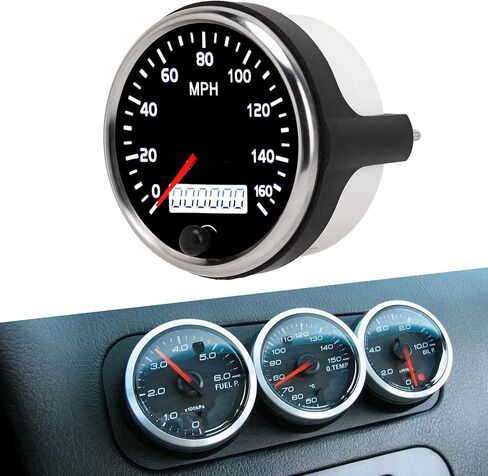

Application: Suitable for car, truck, boat, generator engine, gasoline engine

Package List:
1 x Speedometer
1 x Power Cord
1 x Manual
