Package Includes:

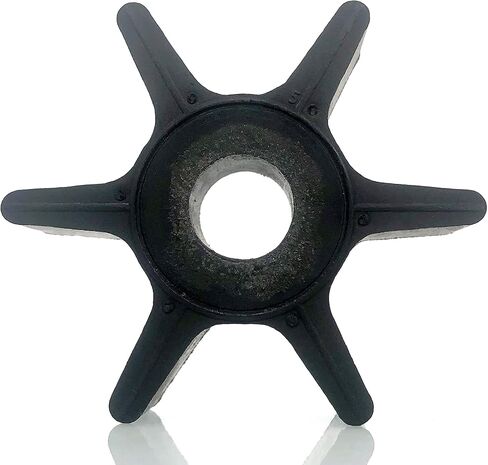

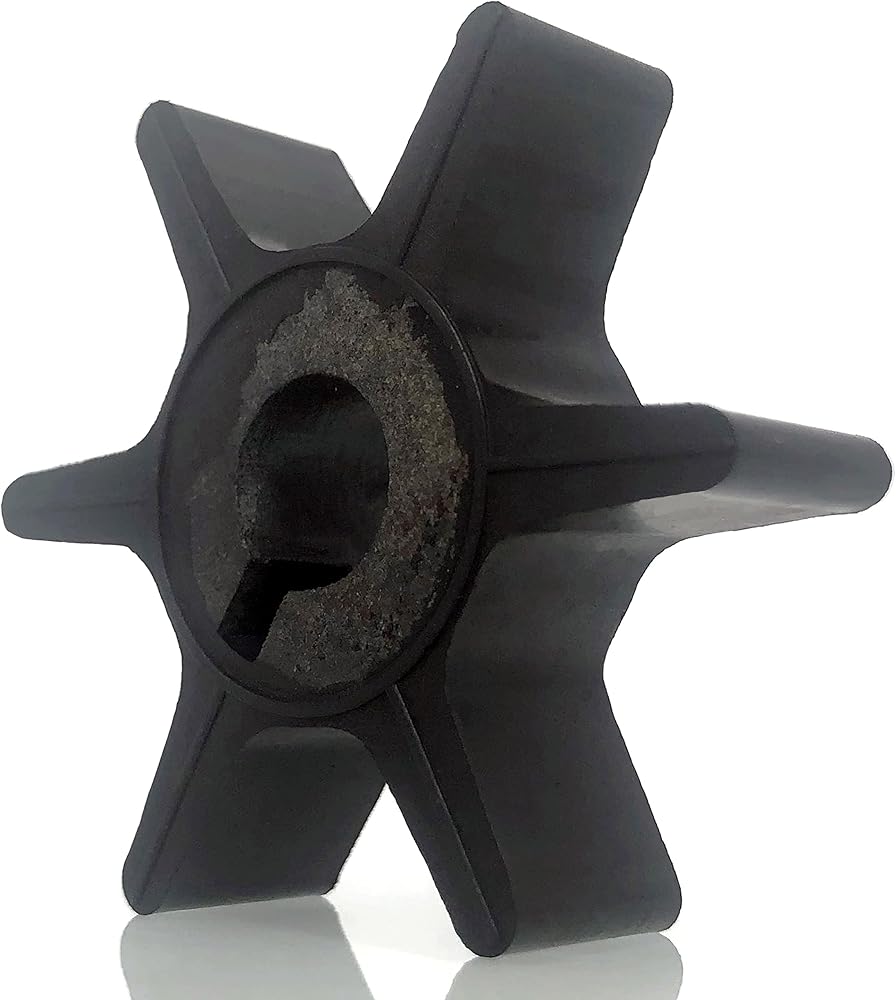

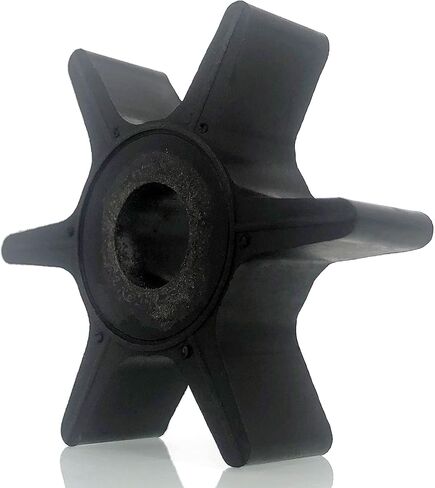

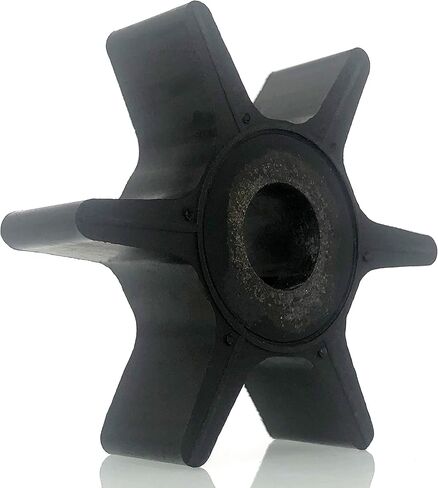

1* Water Pump impeller
Dimension :
Number of Blades:6
Height:0.752inch
Overall Diameter:2.039inch
Shaft Diameter:0.756inch
Net Weight:30g
Replace:
For Mercury 47-89983T 47-89983 47-65959 47-20268
Sierra 18-3007
GLM 89830
Mallory 9-45300
CEF 500312
SEI 96-264-03
Application(Fits Chrysler Marine Outboard Motors):
9.9 hp (Model 95H2H) - 1982
9.9 hp (Model 91B3C,91H3C) - 1983
9.9 hp (Model 92B3K,92H3K) - 1983
9.9 hp (Model 95B3J,95H3J) - 1983
9.9 hp (Model 91C4D,91H4D) - 1984
9.9 hp (Model 92C4L, 92H4L) - 1984
9.9 hp (Model 95C4K,95H4) - 1984
15 hp (Model 152B3J,152H3J) - 1983
15 hp (Model 158B3D,158H3D) - 1983
15 hp (Model 152C4K,152H4K) - 1984
15 hp (Model 158C4E,158H4E) - 1984
Installation steps:
1.Before installing the new impeller, lightly coat the wear plate and the inside of the pump housing with marine grease to lubricate the impeller until water is flowing through the pump.
2.Press the pump housing down over the impeller while turning the drive shaft clockwise to get the impeller vanes facing the proper direction
3.Before reinstalling the lower unit, lubricate the drive shaft splines with marine grease.
Pay attention:During installation, take care to properly align the shift linkage mechanism with the lower. This is an easy mistake for newbies to make
Kind tips:This product does not come with an instruction manual.Please find a professional to install it. If there is a product problem please contact me
