AVR M16FA655A Automatic voltage regulator for generator Alternator volt Regulation

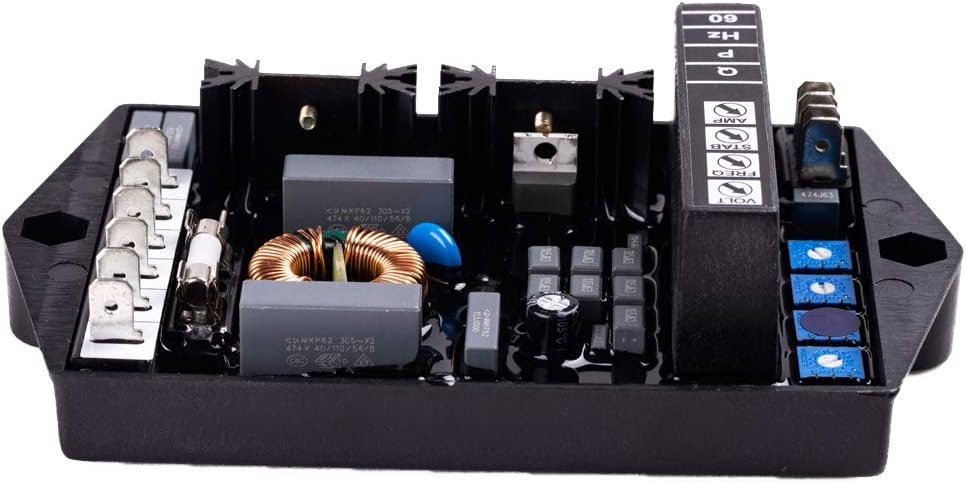

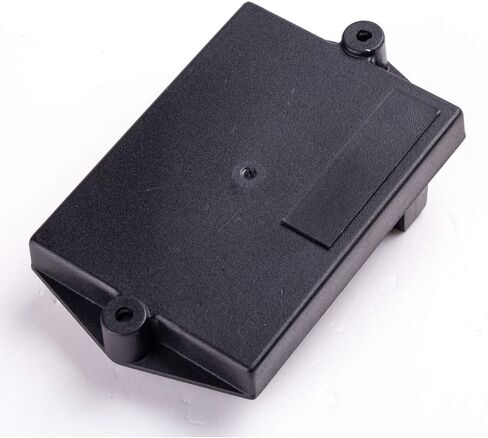

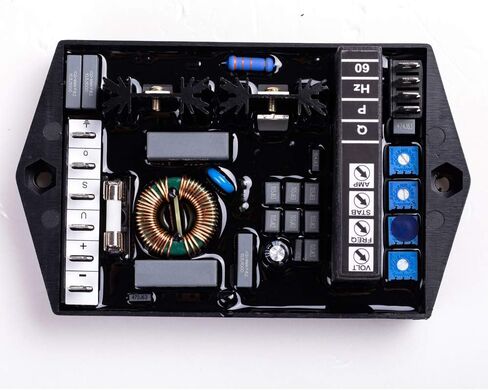

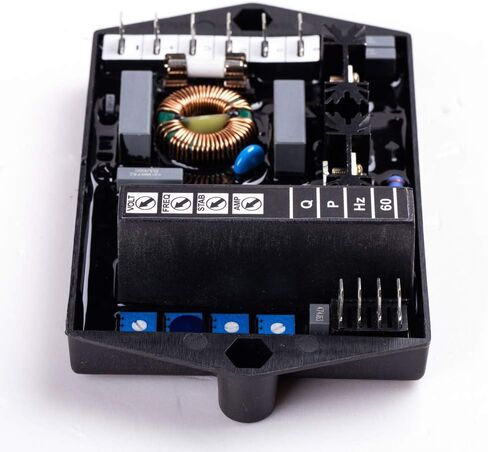

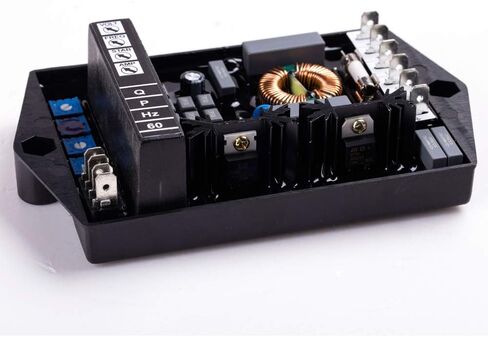

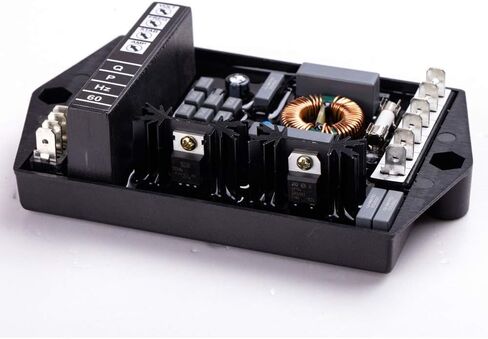

The AVR M16FA655A Automatic voltage regulator type “MARK V” M16FA655A, is suitable for Synchronous Generators of MOTORI make, MJB series, size range 160-225 frames. The regulator is fully insulated in order to maintain high reliability also with severe ambient conditions (high level of humidity, dust, salt atmosphere), and in case of high vibrations level. The regulator is proper both for single and 3-phase generators.

TECHNICAL DATA for M16FA655A AVR:

REGULATION ACCURACY: +/- 0.5% rated steady state conditions
VOLTAGE DRIFT:+/- 0.5 %, voltage change, for 50°C T amb change
RESPONSE TIME: 1 cycle
OPERATING TEMPERATURE: -30 °C ÷ +70 °C
EXCITER FIELD RESISTANCE: 8 Ω (min) ÷ 20 Ω(max)
INPUT/OUTPUT DATA of M16FA655A Automatic voltage regulator :
-PROVIDE VOLTAGE:170 -270 V
-POWER PROVIDE:350 VA (max)
-POWER DISSIPATED: 15 W (max)
-VOLTAGE SENSING: 170 - 270 V
-OUTPUT VOLTAGE (DC):30 V
-OUTPUT CURRENT (DC): 5 A (max, continuous)
-OUTPUT CURRENT (DC): 8 A (max forcing one minute)
