87-17009A5 87-17009A2 مفتاح مفتاح الإشعال لمربع التحكم في محركات الزئبق الخارج

KWD 8.500
ماركة
MINSTAR
– 1 +

مميزات خاصة

  • Replace OE number for reference: Mercury 87-17009A2 87-17009A5, Sierra MP41070-2 MP41070-1 MP41070, Please Check the pictures of this boat ignition switch with key and Compare boat ignition switch with key 6 wire with your part number carefully to make sure this push to choke ignition switch for boat is what you want before purchase
  • Easy Installation: Colors on switch wires match factory color codes. Direct replacement, a simple plug & play with no wire splicing. Meets or exceeds OEM standards, 100% tested before shipping.
  • Push Switch: This 87-17009A2 ignition switch adopts 3-position press design, off-run-start, more convenient to use, with six wires connected externally that can be pressed to the choke, superior quality and waterproof, dustproof and insulated

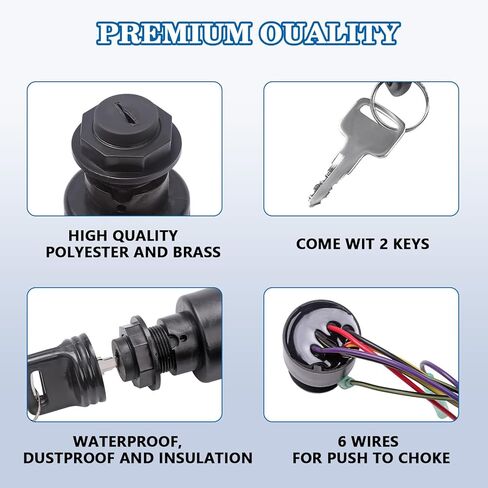

  • High Performance: This Boat Engine Ignition Switch has 2 keys, 6 wires for push to choke, and 3 position which made of polyester and brass, durability and excellent electrical conductivity. Inner seal between cylinder lock and contact plate, the maximum panel thickness is 5/8 inches, which is suitable for side-mounted controls or panels up to 5/8". Rated Up to 30 amps 12 V.
  • Package Included: 1 x 87-17009A5 Boat Ignition Switch, 2 x Keys

وصف

Please Carefully Check All Pictures and Part Numbers in the Listing to Make Sure It's the Correct Product you Need

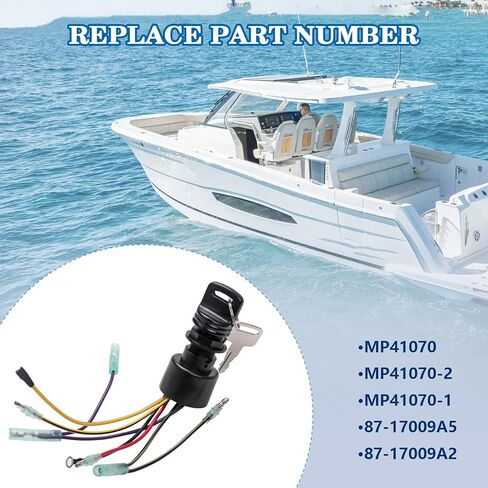

Replace Part Number:
Compatible with Mercury Boat Ignition Switch 87-17009A2, 87-17009A5, 17009A2
Compatible with Sierra Off-Run-Start Ignition Switch MP41070-2, MP41070-1, MP41070

Application:
Compatible with Most Mercury Outboard Control Box

Package Included:
Boat Ignition Switch X 1
Ignition Key X 2

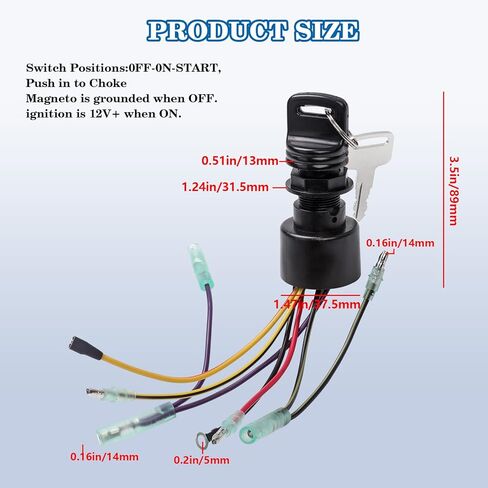

Specification:
Position: 3
Wire: 6

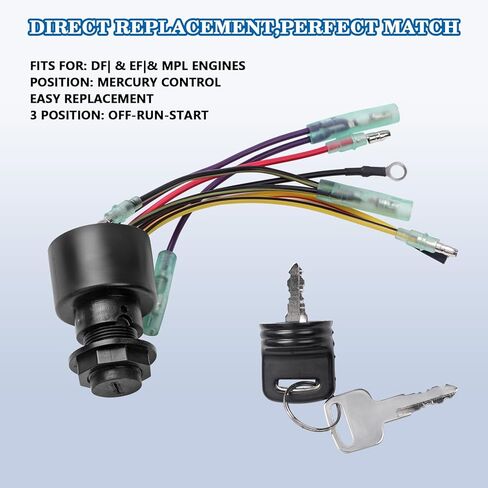

3 Position Off-Run-Start
Push to choke in start position
Magneto style ignition switch
Heavy duty potted construction
Minimal bleed per circuit
Terminal Type: 6 Color Coded Wire Leads/Potted
Hole Size: 7/8 In.
Maximum Panel Thickness: 5/8 In.
Ignition Rated: 15 Amps 12 Volts Dc
Solenoid Rated: 30 Amps 12 Volts Dc
Choke Rated: 7 Amps 12 Volts Dc

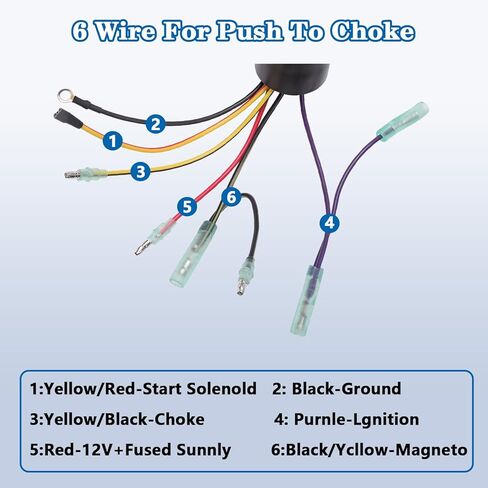

Wire Connection:
Red - 12V+ Fused Supply
Purple - Lgnition
Black - Ground
Black/Yellow - Magneto
Yellow/Black - Choke
Yellow/Red - Start Solenoid
