Package Includes:

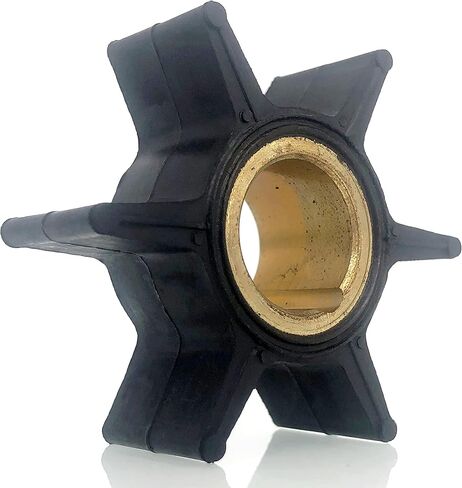

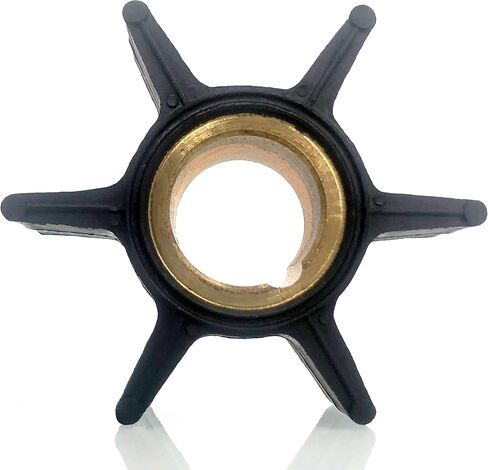

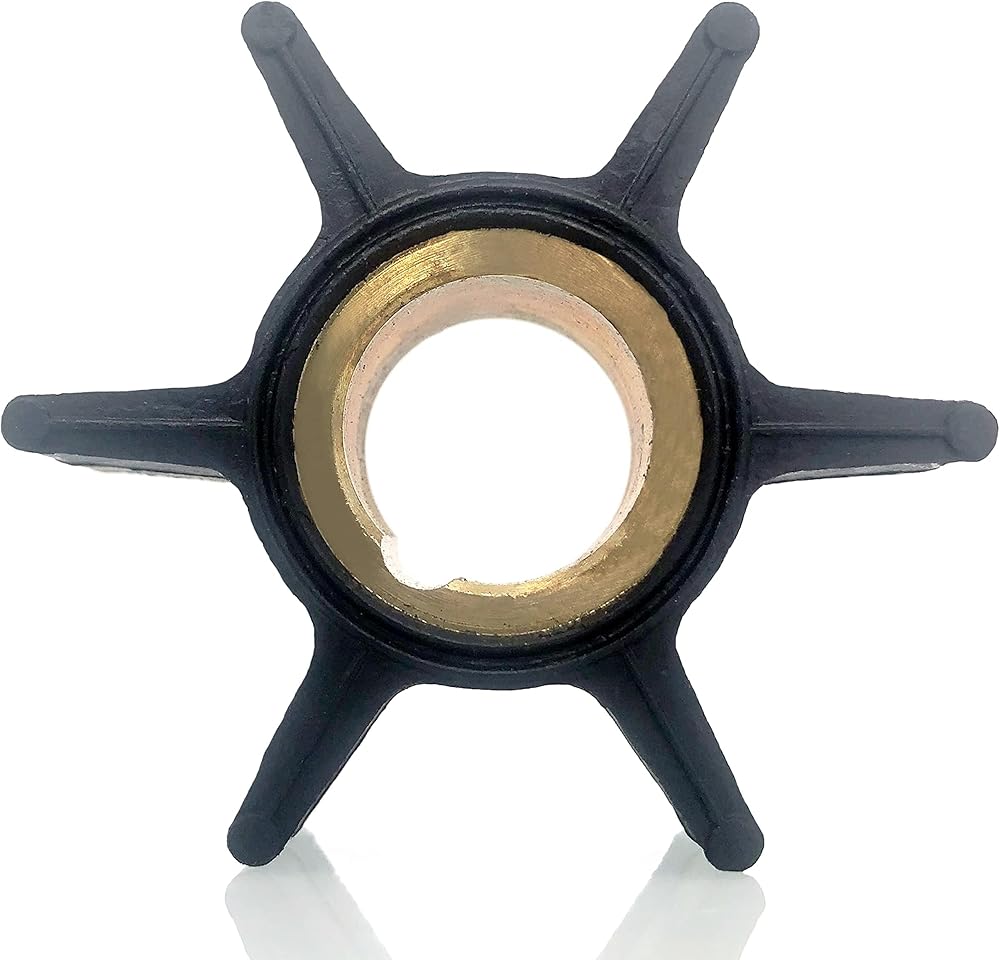

1* Water Pump impeller
1* key
Dimension:
Number of Blades:6
Height:18.76mm
Overall Diameter:51.41mm
Shaft Insert Diameter:15.92mm
Net Weight:30g
Replace:
For Mercury 47-89982,47-89982B,47-65958,47-56780
Sierra 18-3052
Mallory 9-45311
GLM 89820
SEI Marine 96-299-03
Applications:
Mercury Mariner(20HP),2-Stroke 2-Cylinder Engine
Installation Steps:
1.Before installing the new impeller, lightly coat the wear plate and the inside of the pump housing with marine grease to lubricate the impeller until water is flowing through the pump.
2.Press the pump housing down over the impeller while turning the drive shaft clockwise to get the impeller vanes facing the proper direction
3.Before reinstalling the lower unit, lubricate the drive shaft splines with marine grease.
Pay attention:During installation, take care to properly align the shift linkage mechanism with the lower. This is an easy mistake for newbies to make.
Kind tips:This product does not come with an instruction manual.Please find a professional to install it. If there is a product problem, please contact me.
