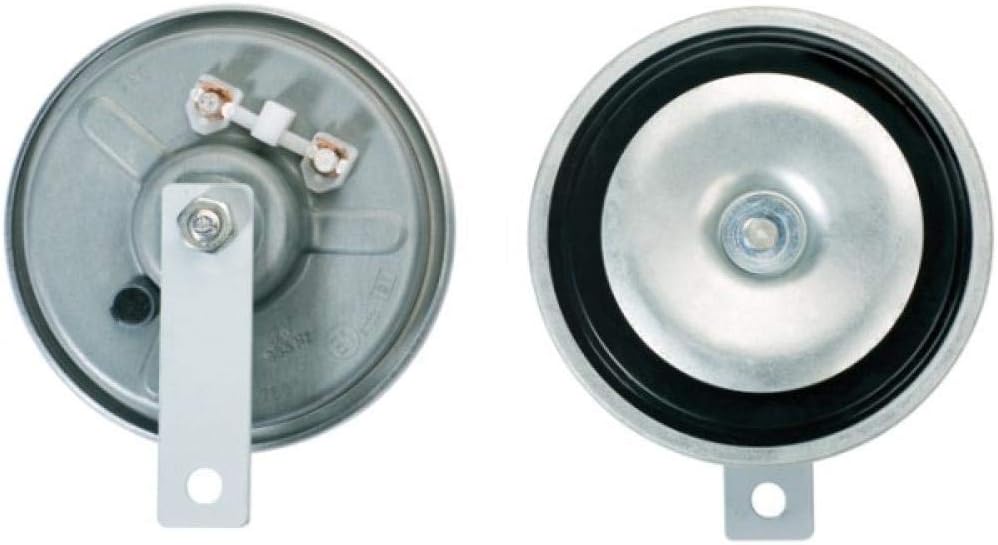

HELLA 3BA 002 768-382 Horn - B36-24V - 116dB(A) - Frequenzbereich: 335Hz - Tiefton - Gehäusefarbe: grau - Flachsteckanschluss

KWD 3
KWD 3.500
Brand
HELLA
Weight
329 g
– 1 +

Special Features

  • Full harmonious sound over long distances in road traffic
  • Optimum sound when a set of tweeter and bass horn is installed.
  • Membrane to protect against moisture penetration
  • The horn is switched by the "horn" on the steering wheel (control signal).
  • Teflon seal to protect against moisture (optional).
  • Temperature range from: -40°C - Temperature range to: 60°C - Frequency Range: 335Hz - Power consumption: 72W

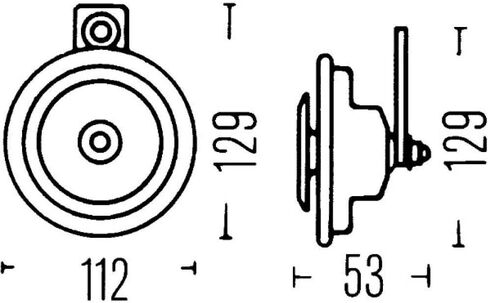

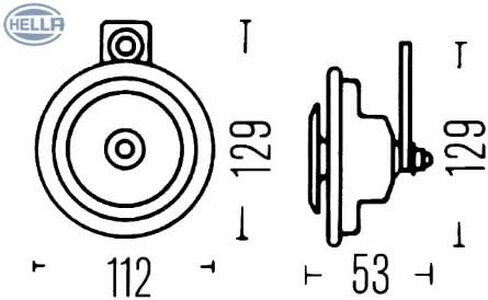

  • Ø: 112mm - Overall Height: 129mm - Depth: 53mm

Description

Inspection Tag: E1 20024
Diameter [mm]: 112
Overall Height [mm]: 129
Protection Type (IP Code): X4K, X9K
Bearing Type: Blade Coupling
Depth [mm]: 53
Rated Voltage [V]: 24
Supplementary Article/Supplementary Info 2: with E quality seal
Housing Colour: Grey
Frequency Range [Hz]: 335
Power Consumption [W]: 72
Signal: Low Tone
Sound Level [dB(A)]: 116
Fulfils ECE norm.: R 28
Temperature range from [°C]: -40
to temperature range [°C]: 60
