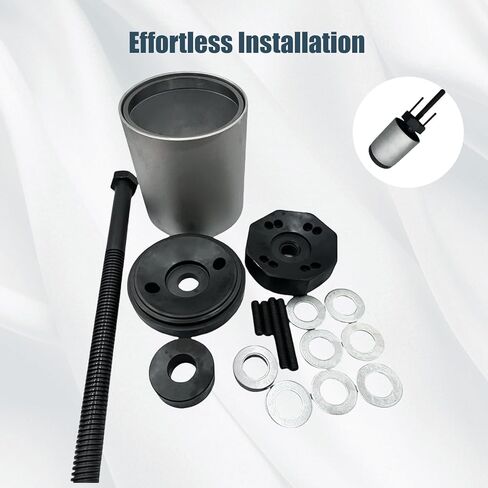

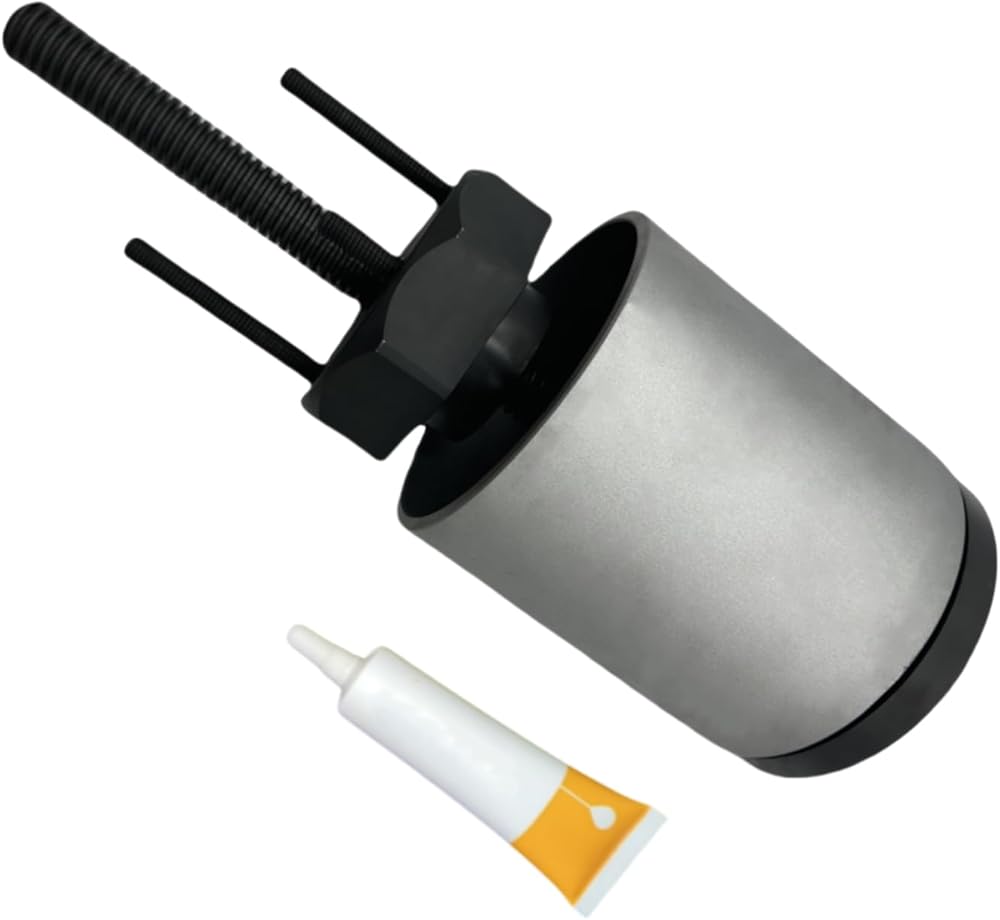

S-21307 Wide Beam Bushing Installation Tool

Features
This bushing installation tool is specially designed for Hendrickson Turner Intraax wide bushings. With its durable construction and high-quality materials, it is guaranteed to make the installation process a breeze.

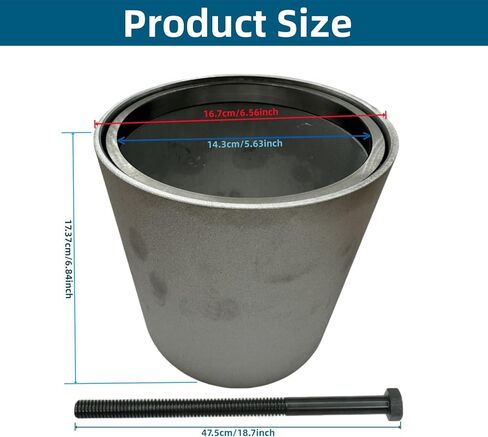

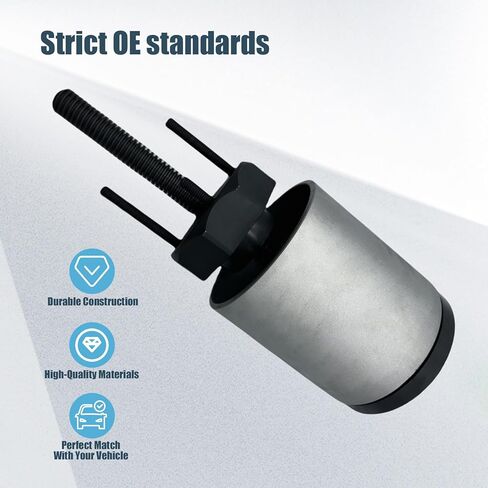

Designed from high-quality materials for durability and reliability
Designed to work with specific Hendrickson suspension system bushings
Easy to use and maintain
For Hendrickson applications suspension system
For use with Hendrickson Tri-Functional Wide Beam Bushing Kits

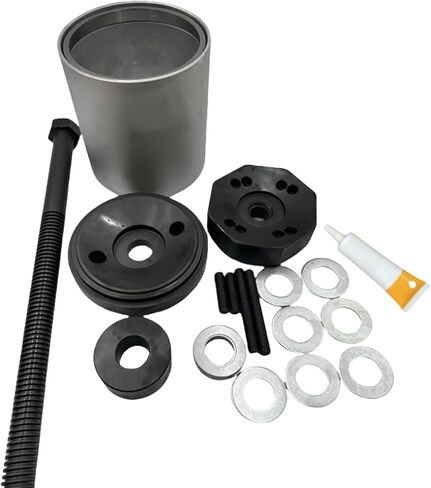

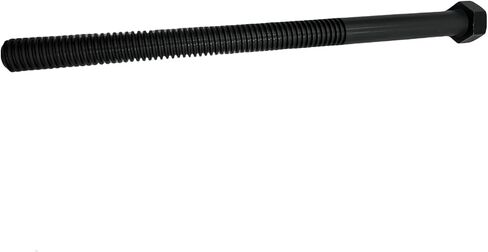

Ensure that threads on tool are well lubricated before and during use to avoid damaging threads

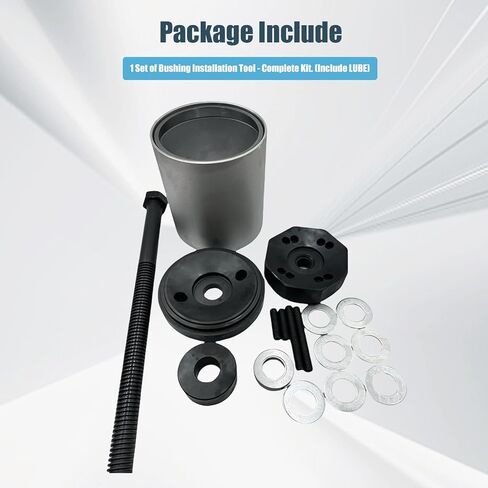

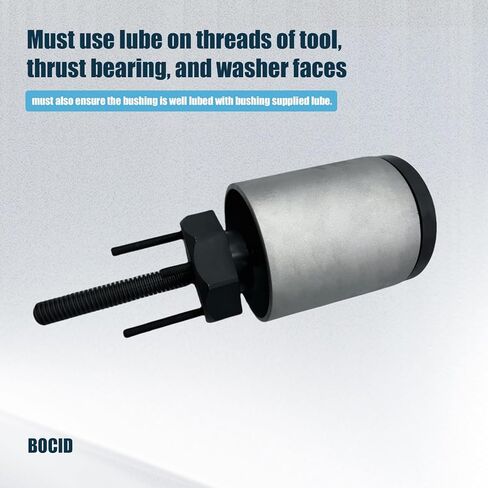

(Please make sure use lube on threads of tool, thrust bearing, and washer faces, must also ensure the bushing is well lubed with bushing supplied lube)

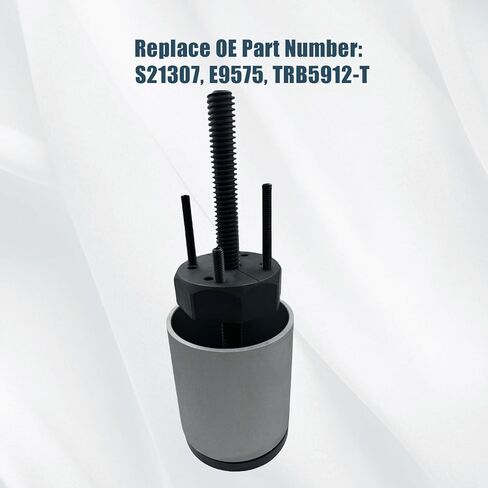

Cross References:
for BWP HE9AA-T
for Dayton 334-936
for Euclid E-9575
for Hendrickson S-21307
for Meritor R309575
for Sirco SH2034

Applications:
for Dana Webb: RF/S-20,23,25,30 Trailer Air Ride Suspension
for Hendrickson applications suspension system
for Hendrickson TS S-24691
for HK/HS190-230 HT190-230-250-300 Air Suspension
for Intraax AA-EDT/NT/T Vantraax HKA/NT/T Air Suspension
for Intraax AA-L/NL/NLS/EDL HKA-L/RL/NL Air Suspension
for T-4/6/9/15/17 Air Suspension
for Toughlift FM/W/B LK Lift Axle Air Suspension
for Watson & Chalin: TA250/300T Trailer Air Suspension
for Automann TS TRB5912
for Dayton TS 334-1576
for Euclid TS E-10729A
for Flagg TS HT245
for Gaff TS 13628

This kit will easily remove and install the Hendrickson Intraax Tri-Functional bushing while the suspension remains on the trailer. Made to service most Hendrickson, Hendrickson Turner, Watson Chalin, and Automann bushings

1 Steps for Removal of Bushing:

1) Scribe the bushing orientation on the beam tube and compression tube.
2) The spring pins are not required to line up with the bushing holes during removal.
3) Tighten retaining nuts to remove slack. Thread on hammer adapter in the event the bushing becomes seized. Hook up hydraulics and begin removal operation.
4) After each 2 inch stroke, re-tighten nuts to take up slack. (Most bushing will require 3-4 adjustments)

2 Steps for Installation of Bushing：

1) Lubricate the bushing and insert the bushing into compression cylinder.
2) Place the plunger on top of the bushing, align the mark on the bushing with the mark on the plunger. The 4 corresponding pins to the bushing type you are installing should seat into the bushing.
3) Tighten retaining nuts to remove slack. Thread on hammer adapter in the event the bushing becomes seized. Confirm the plunger is aligned with the scribed mark on the beam tube and the pins are still engaged in the bushing. Hook up hydraulics and begin installation operation.
4) After each 2 inch stroke, retighten nuts to take up slack. (Most bushing will require 3-4 adjustments)
