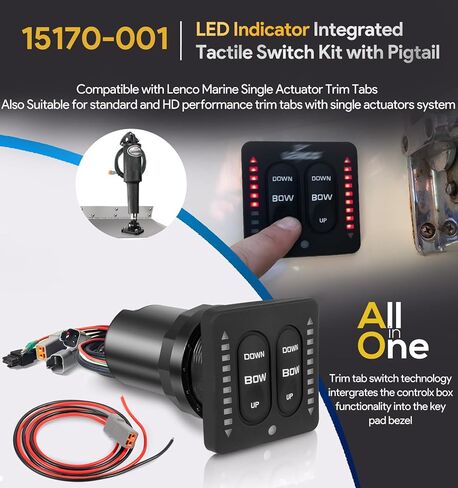

15170-001 LED Indicator Integrated Tactile Switch Kit w/ Pigtail f/ Single Actuator System

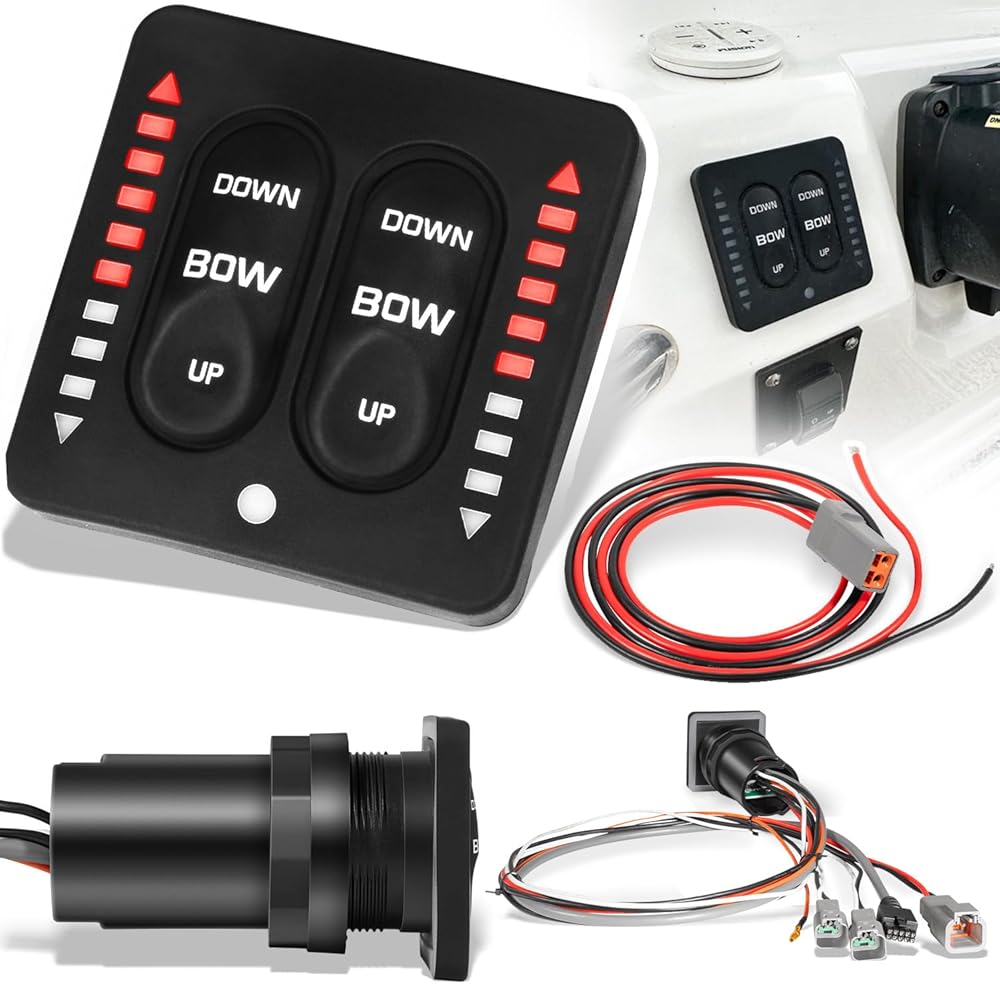

15170-001 LED Indicator Integrated Tactile Switch technology improves accuracy and integrates the control box functionality into the key pad bezel. LED indicator lights let you know exactly where your trim tabs are at all times.

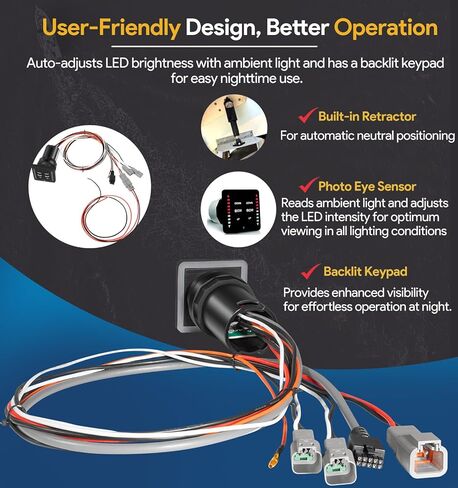

Backlit keypad automatically illuminates graphics for night viewing. Photo eye reads ambient light and adjusts the indicator intensity for optimum viewing in all lighting conditions.
Special Features:
Instant response , Built-in retractor
Low profile key pad design

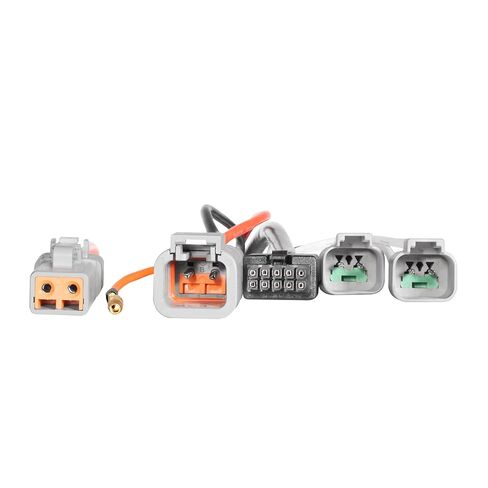

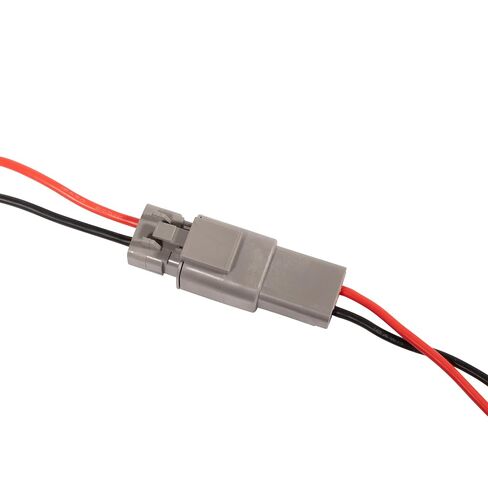

Self-contained key pad with waterproof Plug & Play Deutsch connectors

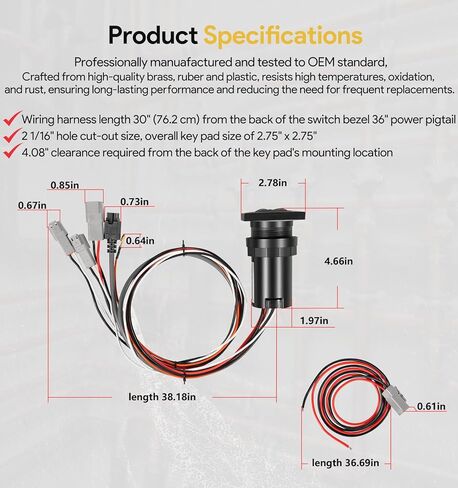

Wiring harness length: 30" (76.2 cm) from the back of the switch bezel, 36" power pigtail
2 1/16" hole cut-out size, overall key pad size of 2.75" x 2.75"
4.08" clearance required from the back of the key pad's mounting location

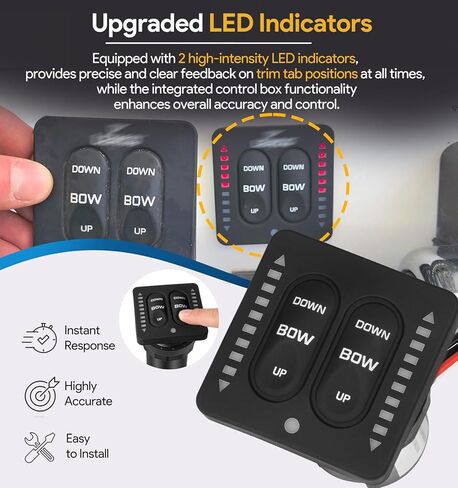

2 high-intensity LED Indicator displays show the exact position of your trim tabs at all times
Photo Eye for optimum viewing in all light conditions
Backlit key pad for optimum viewing at night
Simple, quick, Plug & Play installation.

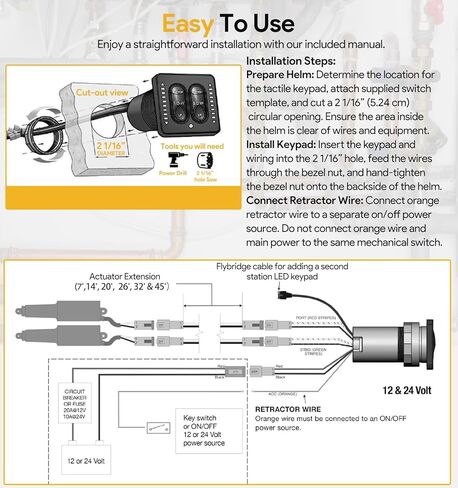

1. At the helm, determine where the tactile key pad will be installed, locate the supplied switch template, and secure to helm. Cut a circular opening using a 2 1/16” (5.24 cm) hole saw (Hole must be 2 1/16”). Before cutting, make sure the area inside the helm is clear of wires and other equipment that could be damaged.
2. Place the key pad & wiring into 2 1/16” hole, feed wires through bezel nut and hand tighten the key pads bezel nut onto the backside of helm.
3. Each switch kit has a retractor wire (orange) that must be connected to an on/off power source. The tabs retract to the up position when power, or analog signal is removed, and then shuts the system down into stand-by mode.
Orange Wire Connection Options
Connect to Key switch or ON/OFF power source. Do not install the orange wire and main power on the same mechanical switch.
