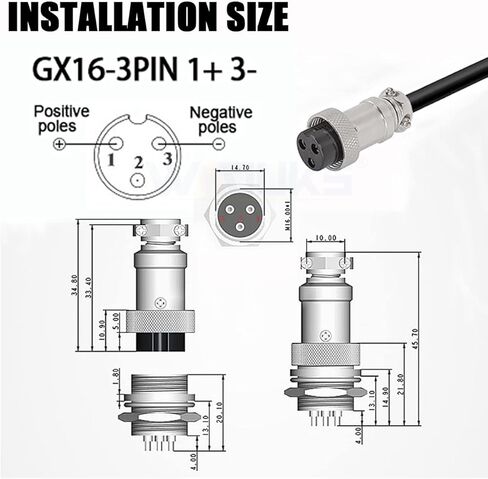

【Connector type】The charger comes with a connection interface：GX16 1+3-; Connection interface conversion：GX16 1+3- to GX16 1+2- Suitable for Battery type: 72V Lead acid Battery Charger

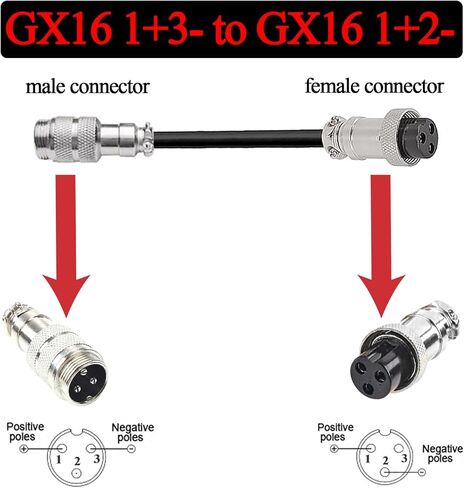

【Important Caution】The Output Connector of This Charger is 3pin GX16 Female 1+ 3-,If The GX16-3pin Male of Your Charging Port is not 1+ 3-, you need to use our Connection interface conversion GX16 1+3- to GX16 1+2-. If the polarity is not consistent, the charger will not work. Please ensure that it matches the polarity of the charger to function properly
【72V Lead acid Battery Charger】DC Output: 72Volt/ 8 Amp; AC Input: 100-120Vac, 50/60Hz,Please do not use it under 220V voltage, Provide 1* Connection interface conversion：GX16 1+3- to GX16 1+2- ,1* US standard power cable and 2* Fuse Can be Changed By Yourself
【Working mode】: Three-stage Intelligent Charging Mode: Constant Current - Constant Voltage - Trickle to Ensure Battery Fully Charged
【LED Indicator and Durable Shell】: With LED Indicator light and Cooling Fan, Aluminum Shell Beautiful and Durable, Cooling Faster
【Attention】: This is a dedicated charger for 72V lead-acid battery charger
【Fast Customer Service Support】WAOUKS lead-acid battery Battery Charger. If you have any questions, please contact us at any time. We will reply to you within 24 hours

Specification:

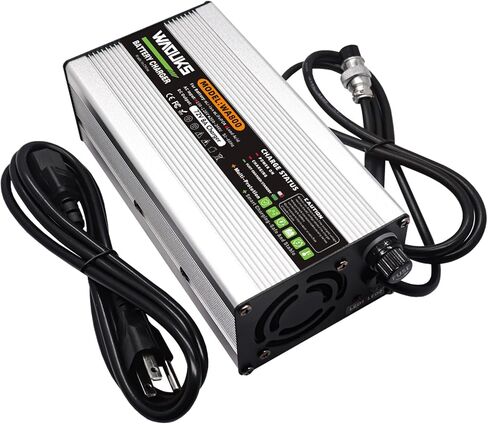

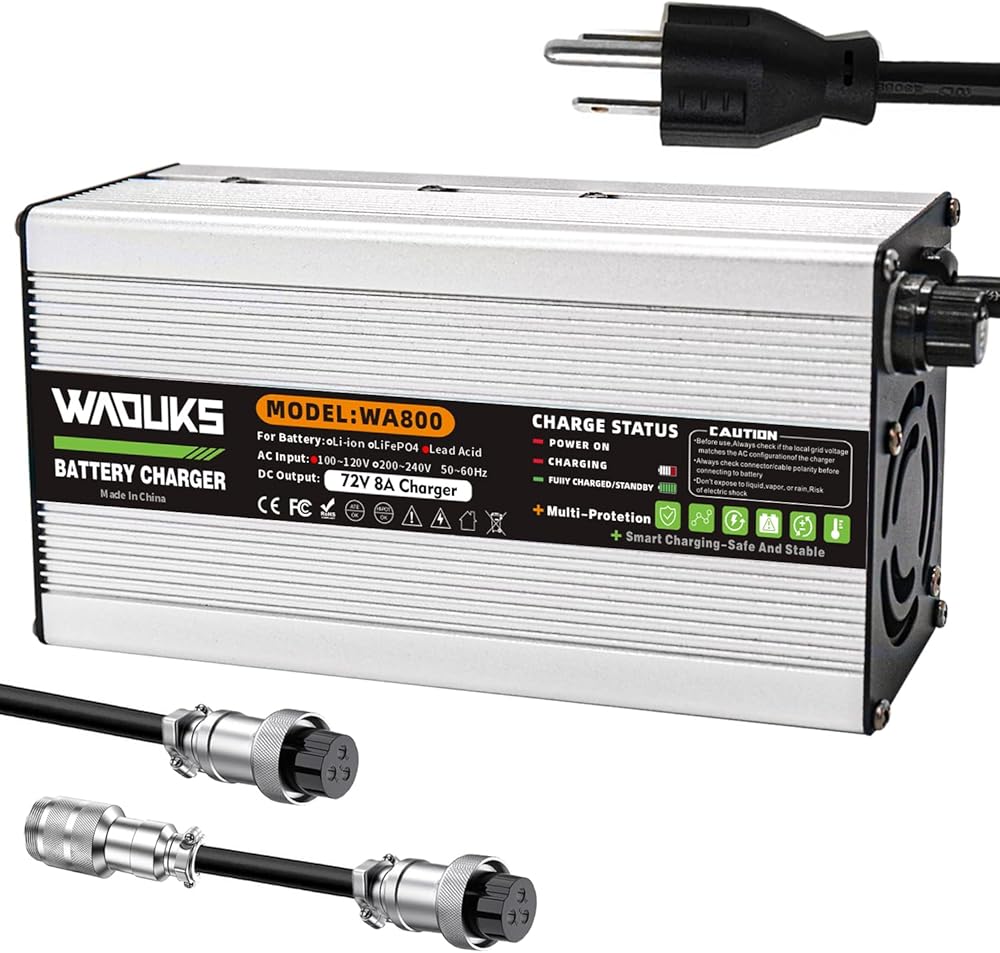

Product Name: 72V 8A Charger

Model: WA800-7208S

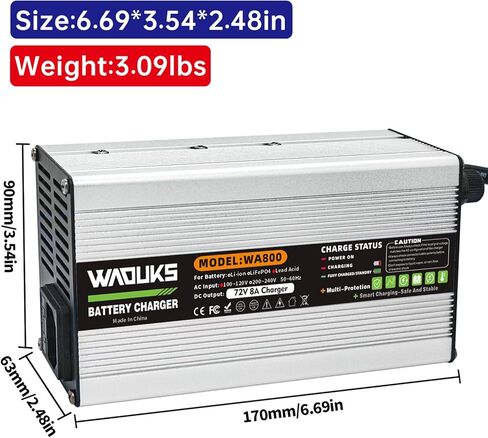

Dimensions: 170x90x63mm

Product Weight: 1.35kg

Color/Material: Silver/Aluminum Case

Suitable for Battery type: 72V Lead Acid AGM Gel VRLA OPZV Battery

AC Input: 100~120Vac, 50~60Hz

Output Voltage: 72 Volt (82.8 Volt)

Output Current: 8 Amp

Float Voltage: 88.2Volt

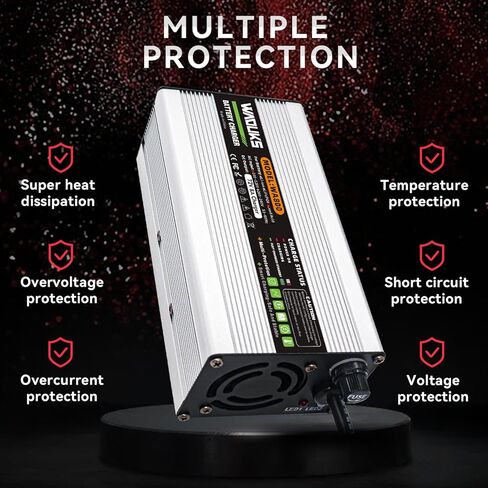

Battery Protection: SCP,OVP,OCP,OTP

Charging Mode: Constant current - Constant Voltage - Floating Charge :Three-stage intelligent charging

Charging efficiency: ≥85% (full load)

Working temperature: -5 ℃ ~ +40 ℃

Storage temperature: -40 ℃ ~ +70 ℃

AC power cord, DC connector can be customized.

Operating Instruction

1. Before charging, please connect the DC terminal to battery first, and then connect the AC terminal.

2. After charging complete, unplug the AC terminal firstly, and then unplug the DC terminal.

3. No charging or after charging complete, be sure to unplug the DC terminal and AC terminal.

LED Indicator:

LED 1 red: Power on.

LED 2 red: Battery being charged.

LED 2 Flash: Battery will be charged completely soon.

LED 2 green: Battery has been charged completely.

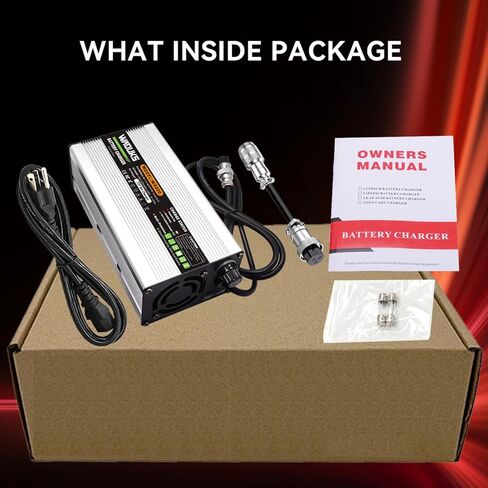

Package:

1* 72V 8A charger

1* US standard power cable

1* Operating manual

2* Fuse for replacing
