Replaced by Yamaha Outboard 688-44352-03-00 688-44352-00-00 Sierra 18-3070 GLM 89920 Mallory 9-45603 9-45603-10
It is very important to check your boat motor part number before purchase. please message us s/n, year and horsepower if you are not sure.

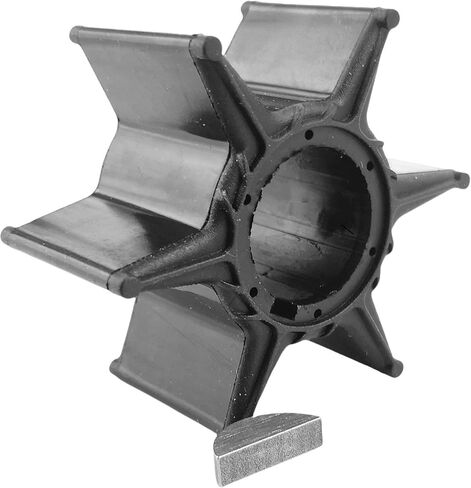

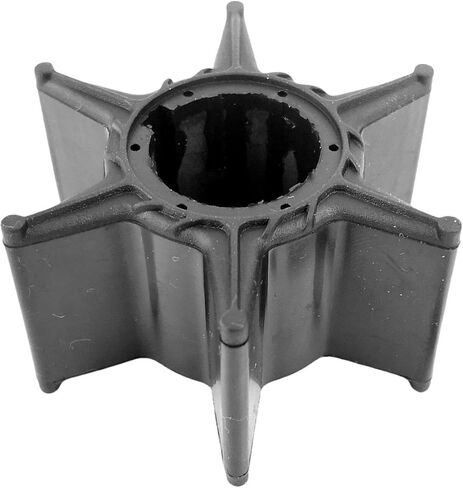

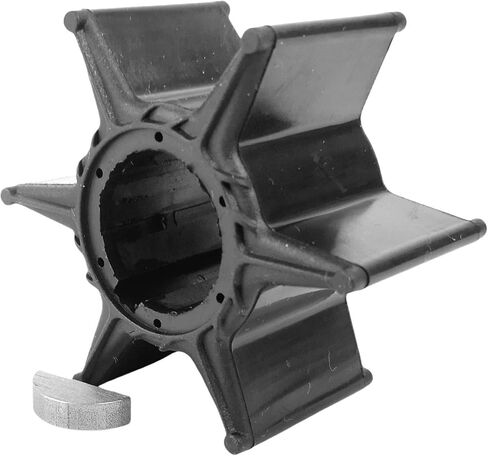

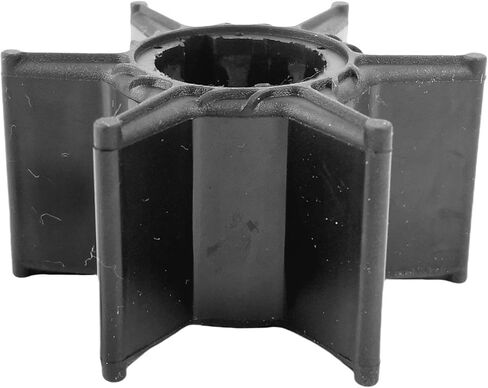

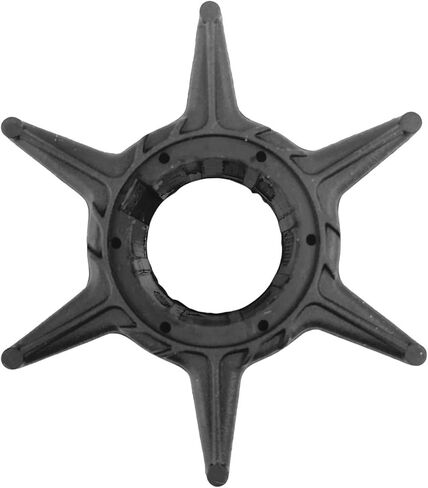

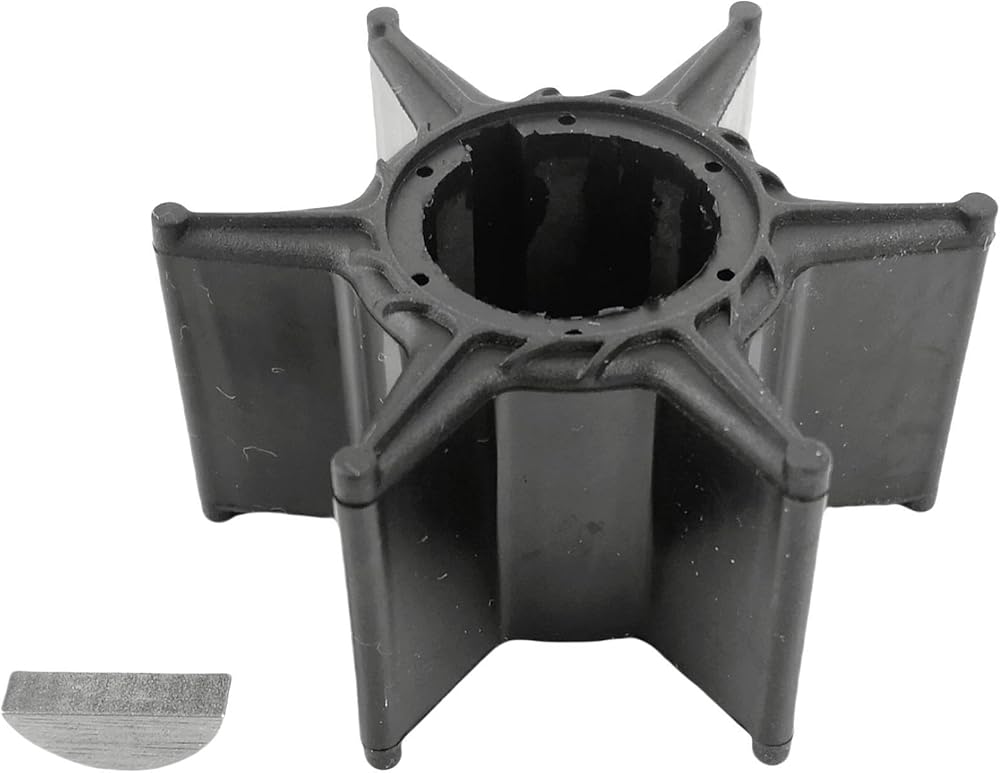

Package Included:Water Pump Impeller x 1pc and Key x 1pc, made with neoprene and hardened nylon hub as pictures showed
VERY IMPORTANT- Same horsepower and year, different model, It may have a totally difference. Please check your outboard model, serial number and year before purchase. You can ask us questions if you are not sure, we're pleasure to help you.
Description
SLSRPMT 688-44352-03-00 Water Pump Impeller For Yamaha 2 Stroke Outboard 60 70 75 80 85 90 115 200 HP Replace Sierra 18-3070 688-44352-00-00
APPLICATION(For your reference only):
Yamaha 2 stroke Outboard:
Yamaha 60 hp 2004-2019 2 stroke 3 cylinders
Yamaha 70 hp 2004-2019 2 stroke 3 cylinders
Yamaha 75 hp 1994-2000 2 stroke 3 cylinders
Yamaha 80 hp 1997-1997 2 stroke 3 cylinders
Yamaha 85 hp 1989-1996 2 stroke 3 cylinders
Yamaha 90 hp 1984-2019 2 stroke 3 cylinders
Yamaha 115 hp 1992-1994 2 stroke
Yamaha 200 hp 1992-1994 2 stroke
DIMENSION:
Material: neoprene and hardened nylon
Number of Blades: 6
Impeller Height: 1.181 inch
Overall Diameter: 2.303 inch
Shaft Diameter: 0.791 inch
Net Weight : 30 g
PACKAGE INCLUDED:
1x Impeller 688-44352-03-00
1x Key
Note:
1.Please verify your exact HP, serial number & motor year uses one of the part numbers above before ordering as many look similar.
2.Please do not hesitate to contact us if there is any problem, we're willing to help you.
