📌OEM Part Number

0444

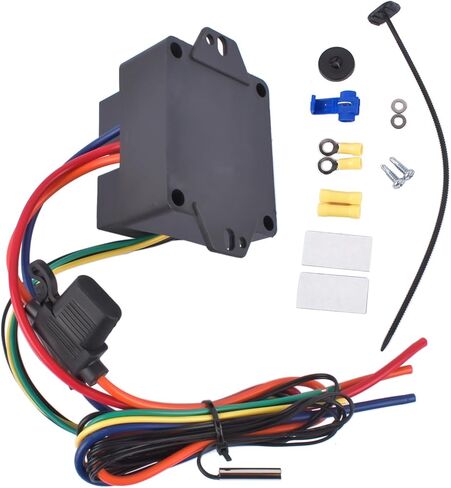

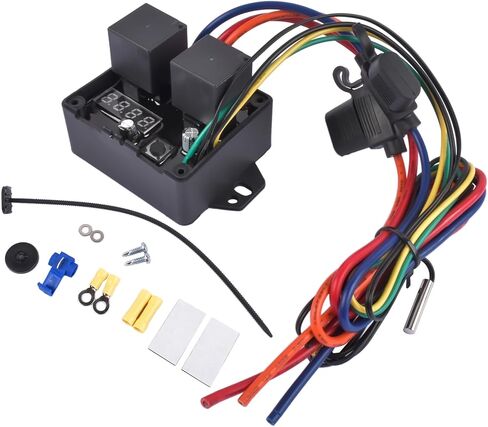

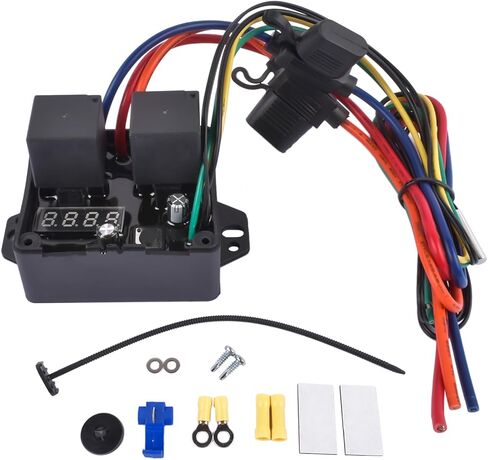

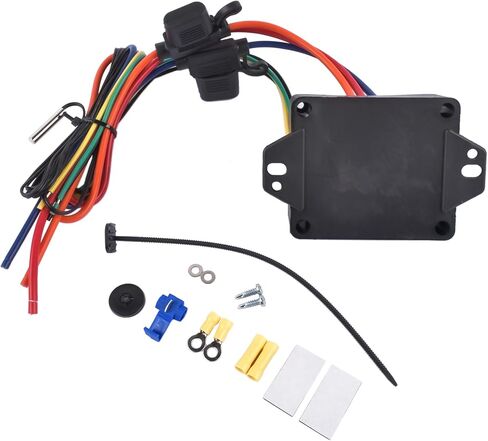

Fan switch kit can be used in 12 or 24 volt applications

📌Air Tempreture Application

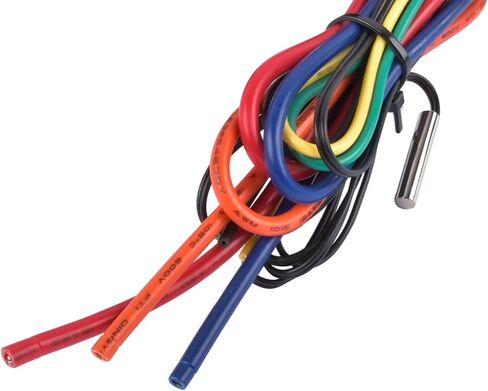

The Temperature Sensor is placed in the radiator fin section as close to the hot coolant inlet as possible, It senses air temperature as it passes through the radiator and has an adjustable temperature range of 40ºC to 110ºC (104ºF to 230ºF).

📌Water / Coolant Application

The 0444 sensor can also be placed directly into the coolant system and no need to cut hoses. You will need to use a Temperature Sensor Adaptor Kit (Part 0409) to assist with this type of fitment. It is recommended to install the sensor in the return hose from the radiator.

📌Specification

Speed: Single speed, 10 second delay to start up the second fan

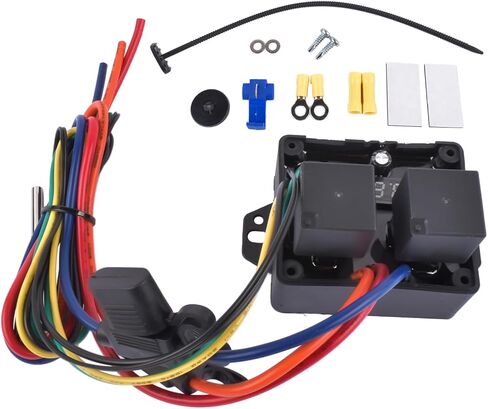

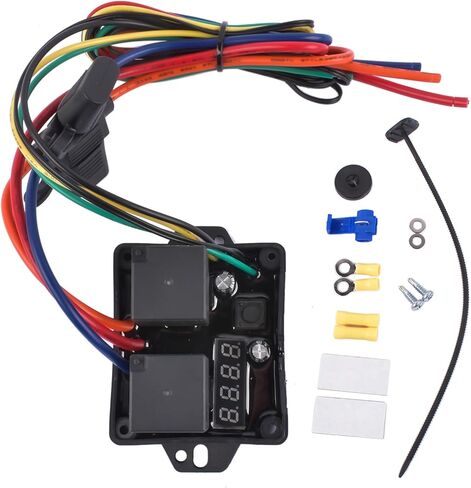

Relay setup: Dual relay
Speed: Single speed, 10 second delay to start up the second fan
Applications: Suitable for single and dual fan applications
Screen Display: LED digital temp display, actual temp + set temp
Temp Display: Centigrade or Fahrenheit
Temp settings: 40°c to 110°c (104°F to 230°F)
Temp setting: Push Button
