Key Specifications​
Key Specifications​
Series Compatibility: 1350 Series Standard
U-Joint Bearing Surface: Ø1.188" (30.15mm) | Width 3.625" (92mm)
Center Dimensions: 7.312" (185.7mm) spline center to joint center
Spline Configuration: 16-Tooth 1.5" (38.1mm) ISO Parallel Spline
Operational Angle: 20° Continuous Working Angle
Maintenance: Standard Grease Gun Compatible
Mounting Reference: 1.24" (31.5mm) washer seating surface
Performance Features​
√ Triple-lip seal protection against contaminants
√ Induction-hardened spline teeth for wear resistance
√ Dynamic balanced design reduces vibration above 2,500 RPM
√ Meets SAE J448 torque capacity requirements
Installation Guidance​
※ Requires matching series companion flange
※ Confirm snap ring clearance before assembly
※ Recommended regreasing interval: 500 operating hours
※ Compatible with JIS Grade 12 tolerance shafts
Quality Assurance​
12-month limited warranty against manufacturing defects (under proper installation)

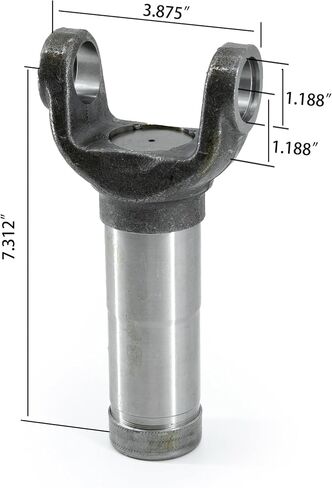

Note: All measurements include ±0.8mm manufacturing tolerance. Includes schematic diagrams for dimensional verification. Add disclaimer: "Specific compatibility requires professional verification. Not affiliated with any third-party brands."
