Replaces OE#:
110700, 110700X, 110700RX, ESL110700, RSL110700

Compatible With:
Euclid: ESL110700
Meritor: RSL110700
Sealco: 110700, 110700X, 110700RX

Versatile Application:

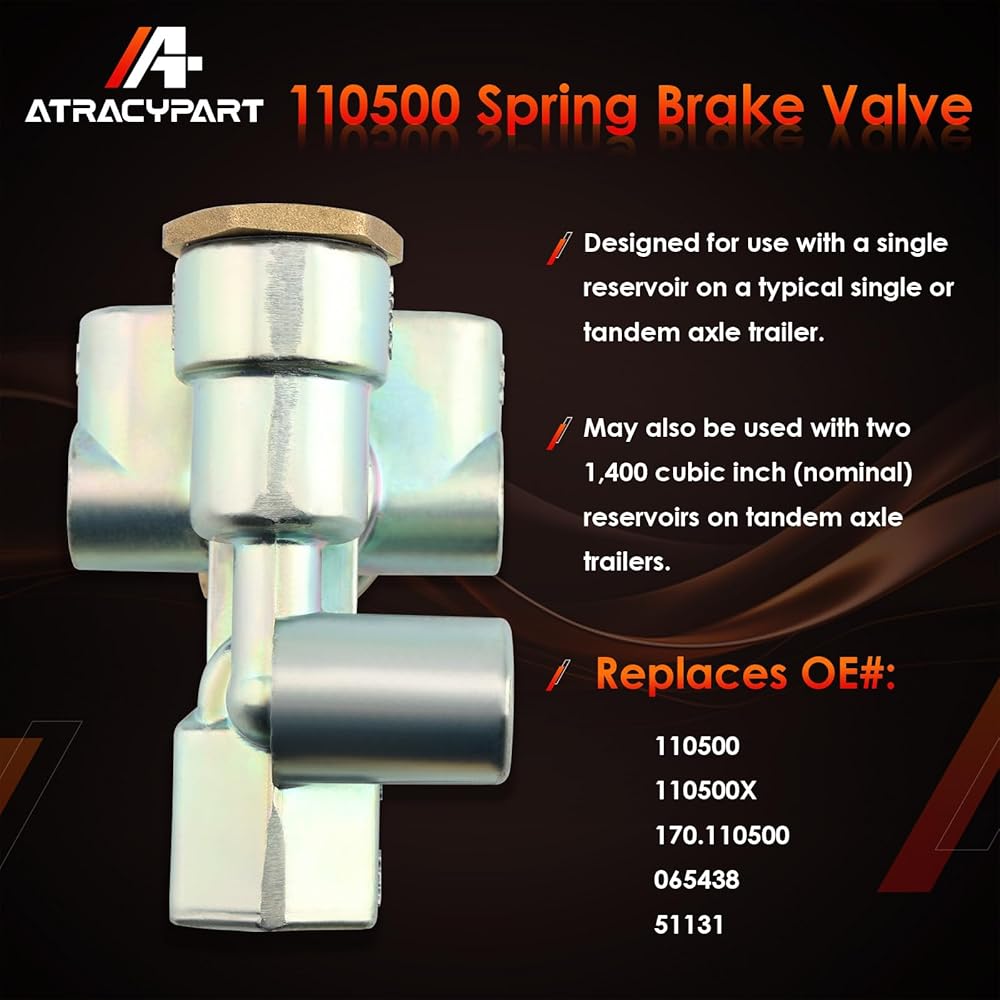

Designed for use with a single reservoir on a typical single or tandem axle trailer.
Can also be used with two 1,400 cubic inch (nominal) reservoirs on tandem axle trailers.

Priority Spring Brake Release:
The spring brake priority valve immediately supplies air to release the spring brakes. The internal pressure protection valve opens at approximately 80 PSI to also fill the reservoir, ensuring efficient and timely brake operation.

Innovative Design:
The 110700 is a unique service brake priority valve with a relay feature that significantly reduces release times. It simultaneously fills both the reservoir and the spring chambers, ensuring service pressure in the reservoir before the spring brakes release. The built-in control port prevents brake compounding, enhancing overall braking efficiency and safety.

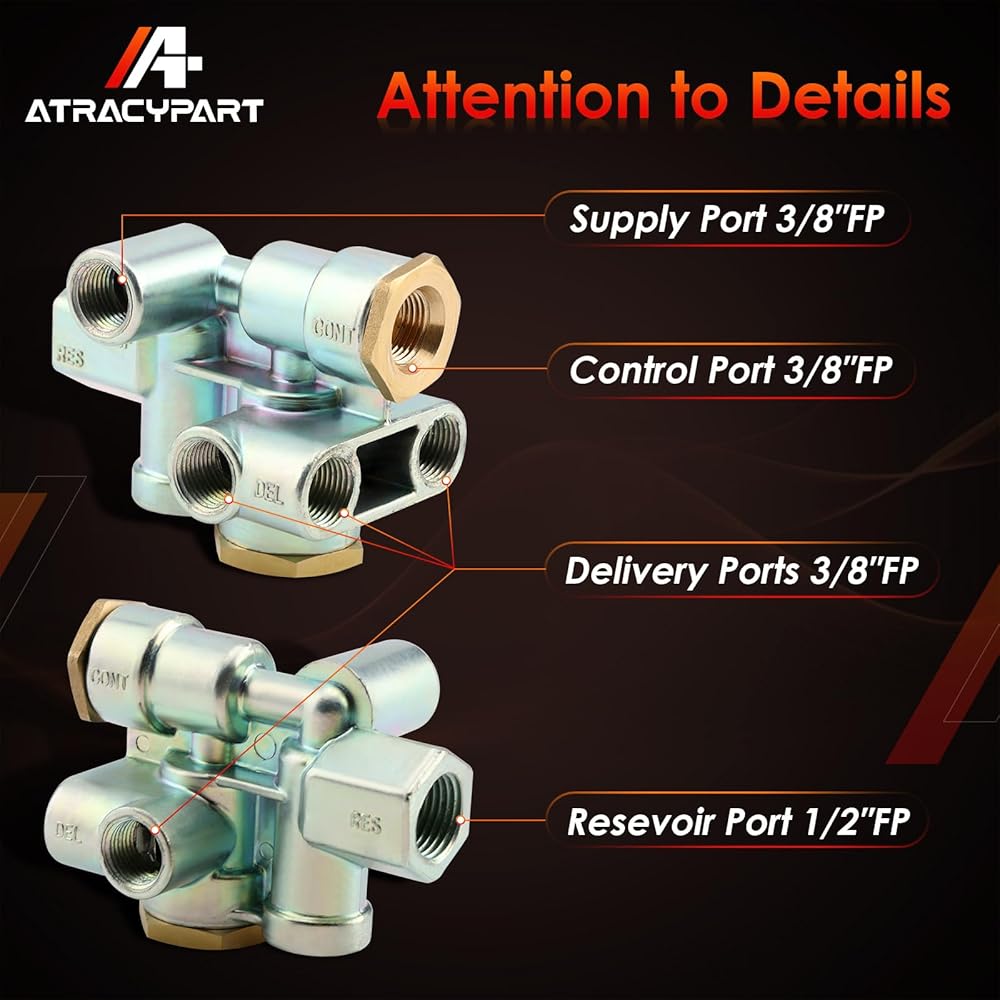

Ports Specifications:
1X Supply Port: 3/8" FP
1X Control Port: 3/8" FP
1X Reservoir Port: 1/2" FP
4X Delivery Ports: 3/8" FP

Warranty:
12-Month
