Model:P20/20AMP/N20
AC Input Voltage:100-240V~50/60Hz
Applicable battery type:Lithium, LiFePO4, Lead-acid (AGM GEL,EFB,MF, FLOODED, VRLA SLA, WET etc.)
Applicable battery voltage: 12v,24V

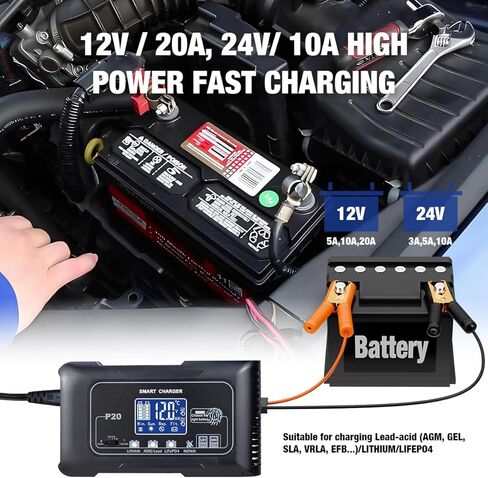

Charging Current: Max 20A(12V),Max 10A(24V)
Minimum Start Volt:2v
Input Power with Load: ax 280W
Net weight: 470g
Dimension:158*90*50mm

Features
1.Supports Lithium,Lead-acid(AGM,GEL,SLA,Flooded,WET,EFB,etc.)and LiFePo4 battery.
2.Fully automatic microprocessor control. 9-stage charging program provides thebest and most efficient battery charging.
3. Charging voltage automatically adapts to temperature to prevent over-orunder-charging.
4. With repair function to repair old, weak and idle batteries.

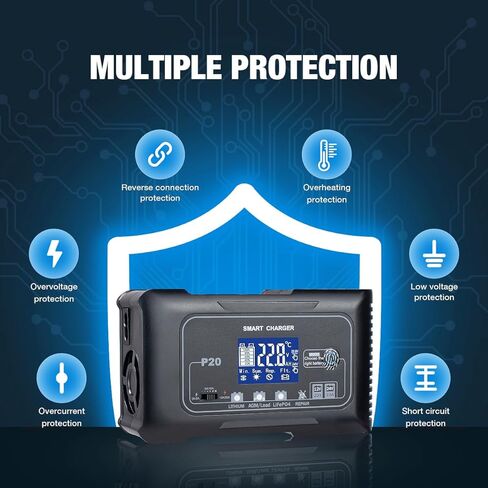

5. With overcharge protection, reverse polarity protection, short circuit protection.sparks free contact, etc.
6. With LCD screen showing voltage, current, battery power,temperature etc.

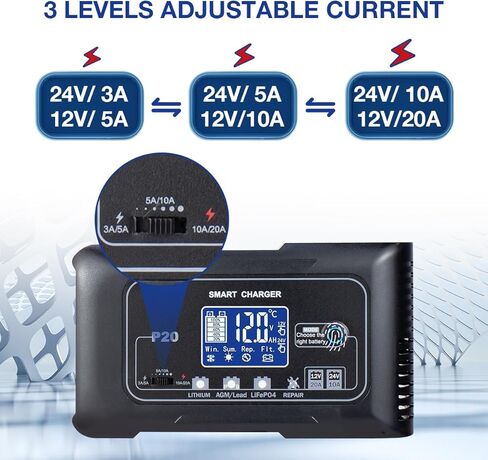

7. Charge current can be selected.
8. The charger has auto-memory function and will return to the last mode whenconnected.

How to charge the battery?
1:Connect the charger to the AC power
2:Adijust and select the appropriate charging current gear.

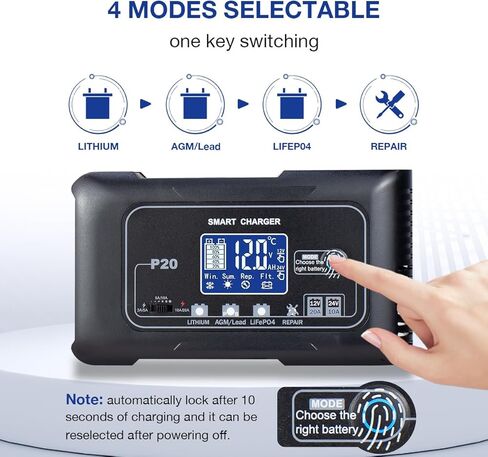

3:Select the corresponding mode according to the battery type. 4:Connect the charger and battery. (The charger automatically recognizes thebattery voltage and selects 12V or 24V.)

Note :
1. Do not charge for the lithium battery without battery protectionboard(BMS).
2. Charge batteries with a capacity of less than 20AH with theminimum current.
