Item specifics

Condition：New

Manufacturer Part Number:S-24736

Bushing Type:Narrow Bushing

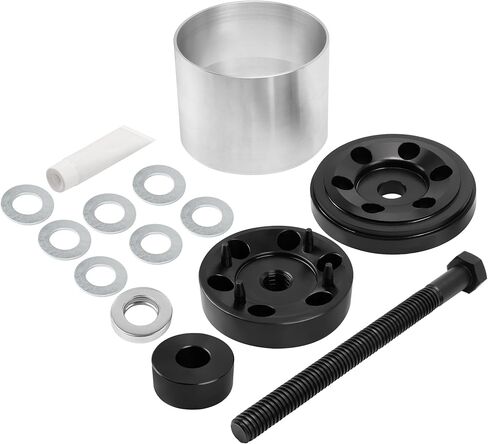

Part Type:Bushing Installation Tool

High Graded Steel Components，Durable & Strength，Resists Corrosion，Black Oxide Coating

Direct Replacement for Hendrickson S-24736

For use with Bushing Kits

Ensure that threads on tool are well lubricated before and during use to avoid damaging threads

Removal of Bushing：

1.Scribe the bushing orientation on the beam tube and compression tube.

2.The spring pins are not required to line up with the bushing holes during removal.

3.Tighten retaining nuts to remove slack. Thread on hammer adapter in the event the bushing becomes seized. Hook up hydraulics and begin removal operation.

4.After each 2 inch stroke, re-tighten nuts to take up slack. (Most bushing will require 3-4 adjustments)

Installation of Bushing：

1.Lubricate the bushing and insert the bushing into compression cylinder.

2.Place the plunger on top of the bushing, align the mark on the bushing with the mark on the plunger. The 4 corresponding pins to the bushing type you are installing should seat into the bushing.

3.Tighten retaining nuts to remove slack. Thread on hammer adapter in the event the bushing becomes seized. Confirm the plunger is aligned with the scribed mark on the beam tube and the pins are still engaged in the bushing.

Hook up hydraulics and begin installation operation.

4.After each 2 inch stroke, re-tighten nuts to take up slack. (Most bushing will require 3-4 adjustments)

Cross References:

Compatible With BWP HE9BL-T

Compatible With Hendrickson S-24736

Compatible With Euclid E-14634

Compatible With Power Products 22-924

Compatible With TRB5914-T

Compatible With 500410

Compatible With AA00003037

Applications:

Compatible With Dana Webb: RF/S-20,23,25,30 Trailer Air Ride Suspension

Compatible With Hendrickson: HK/HS190-230 HT190-230-250-300 Air Suspension

Compatible With Hendrickson: Intraax AA-EDT/NT/T Vantraax HKA/NT/T Air Suspension

Compatible With Hendrickson: Intraax AA-L/NL/NLS/EDL HKA-L/RL/NL Air Suspension

Compatible With Hendrickson: T-4/6/9/15/17 Air Suspension

Compatible With Hendrickson: Toughlift FM/W/B LK Lift Axle Air Suspension

Compatible With Watson & Chalin: TA250/300T Trailer Air Suspension
