Parameter:
Timing Range: 0-999s, 0-999min, 0-999h
Relay type: Normally open relay

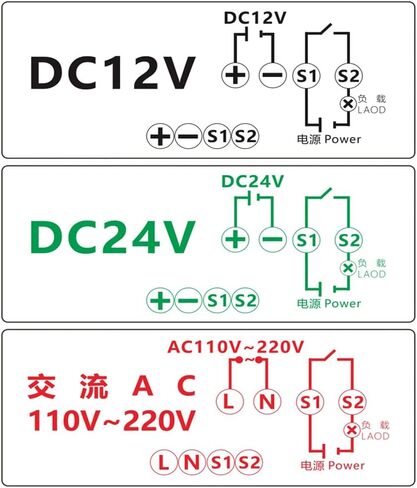

Supply Voltage:
DC12V 20A/240W(Max)
DC24V 20A/480W(Max)

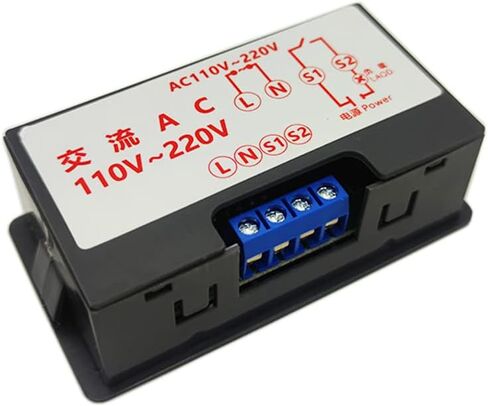

AC110-220V 10A/1500W(Max)

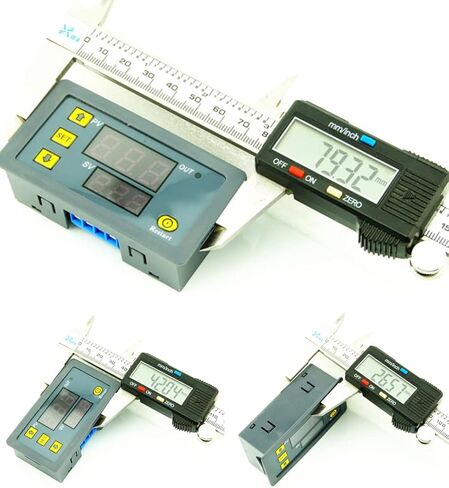

Size: 79*42*26mm, Hole size: 72*40mm
Product Functions: Timing, Delaying, Time Cycling & etc.

Features:
P0--0: T1 timing for Seconds (0-999s).
P0--1: T1 timing for Minutes (0-999m).
P0--2: T1 timing for Hours (0-999h).
P1-0 Load is off until (T1 or PV) time counts down to 0 then the load will come on and stay on.
P1-1 The load comes on as the power button is pressed. After PV Time the load will go off.
P1-2 The load is off for (T1 or PV)(delay time) then the load switches on and runs for the time set in (T2 or SV) then switches off until power switch is pressed to cycle again.
P1-3 Load is on until PV Time runs out Then after SV time runs out the load will come on and stay on.
P1-4 Load is off until (T1 or PV)(Delay) time counts down to 0, then load comes on until SV time counts down to 0 then the load is off then it cycles again and again-auto cycle.
P1-5 The load is on until (T1 or PV) time counts down to 0 then powers down and after (T2 or SV)Time counts down to 0 the load will start working and cycle again and again-auto cycle.

Product instructions:

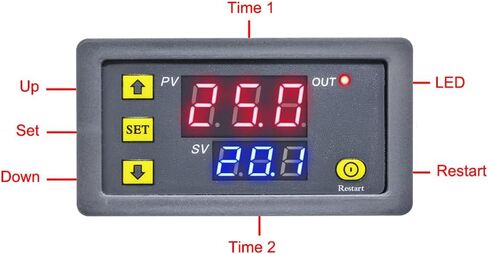

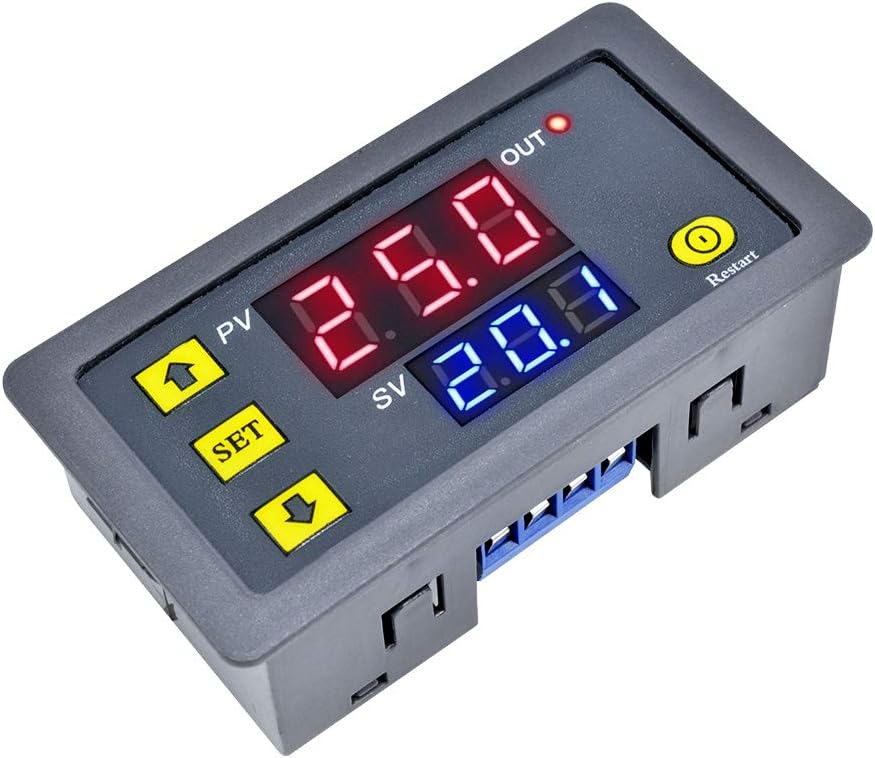

1. Short press button SET : Start the Time Setting Mode and screen will blinking. Please set time T1 during blinking. Press button SET and screen will blinking again. Set time T2 during blinking. Then save set in two method: Waiting for 6S and the screen stop blinking. The system automatically saves the setting time; Press button SET .
2. Long press button SET : Start the Parameter Setting Mode. There are two parameters for your choice: P0 and P1. You can select P0 or P1 by short press SET . Under the parameter P0, P1 you can set the parameter by the button UP and button DOWN.
3. Restart key: Trigger the function again. After the timer finishes work normally. If needs to work again please short press the 'Restart key' to restart the timer.

Application:

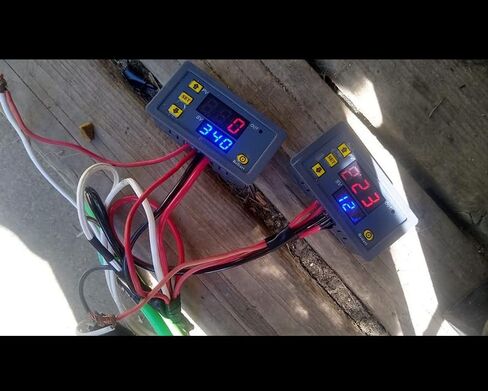

1: Used for timing, delay, cycle timing, intermittent timing and other occasions.
2: Used for raft fishing machine, slow-down machine.
3: Used for timer switch, timer alarm control panel.

Note:
Please pay attention for your first use. You need wait 6s after your setting data, the module will save you have set after 6s.

Package Includes:
1 X Timer Delay Relay DC12V 20A
