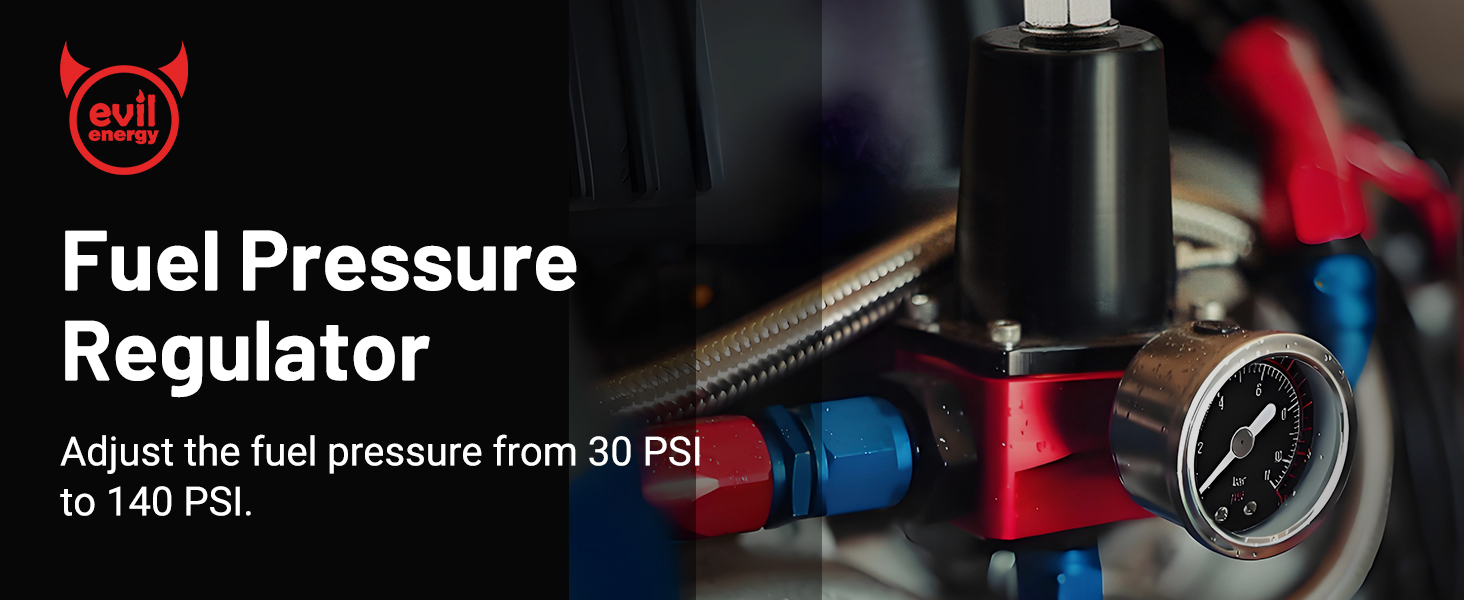

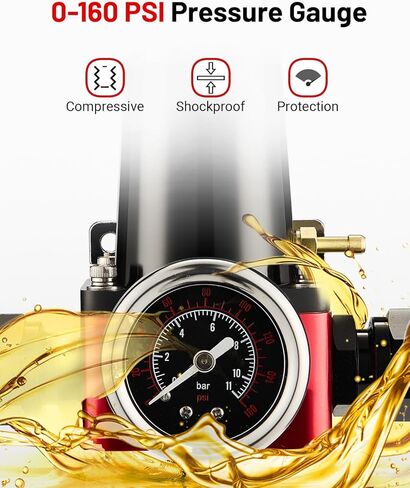

【Features】- The EFI fuel pressure regulator is precision machined from 6061-T6 aluminum alloy and features a 1/8 inch NPT instrument port, 1/8 inch NPT vacuum interface, two 10AN (ORB) feed ports and one 10AN (ORB) return port.

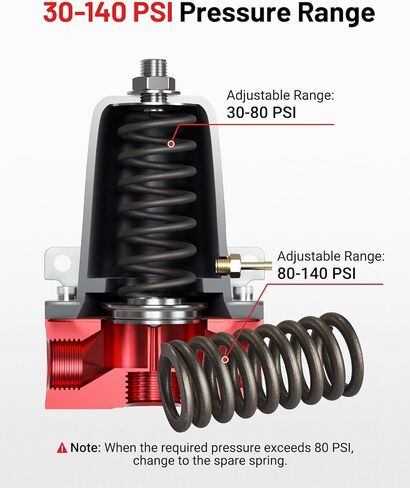

【Adjustable Range】- The pre-installed spring supports a pressure range of 30-80psi, while the replacement spring supports a pressure range of 80-140psi. Adjust the set screw on top to get the desired pressure, and change to the replacement spring if a higher pressure is needed.

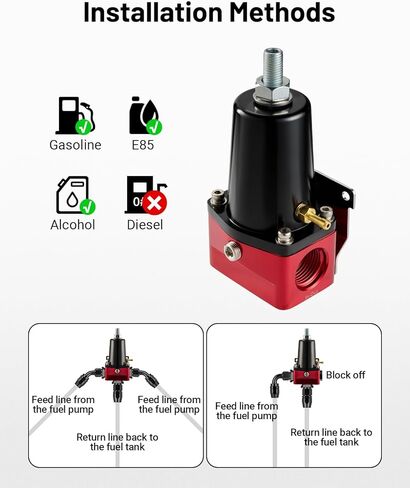

【Fuel Type】- Adjustable fuel pressure regulator compatible with gasoline,E85 and alcohol/ethanol, not compatible with diesel fuel. (Nylon braided fuel line is not compatible with E85.)

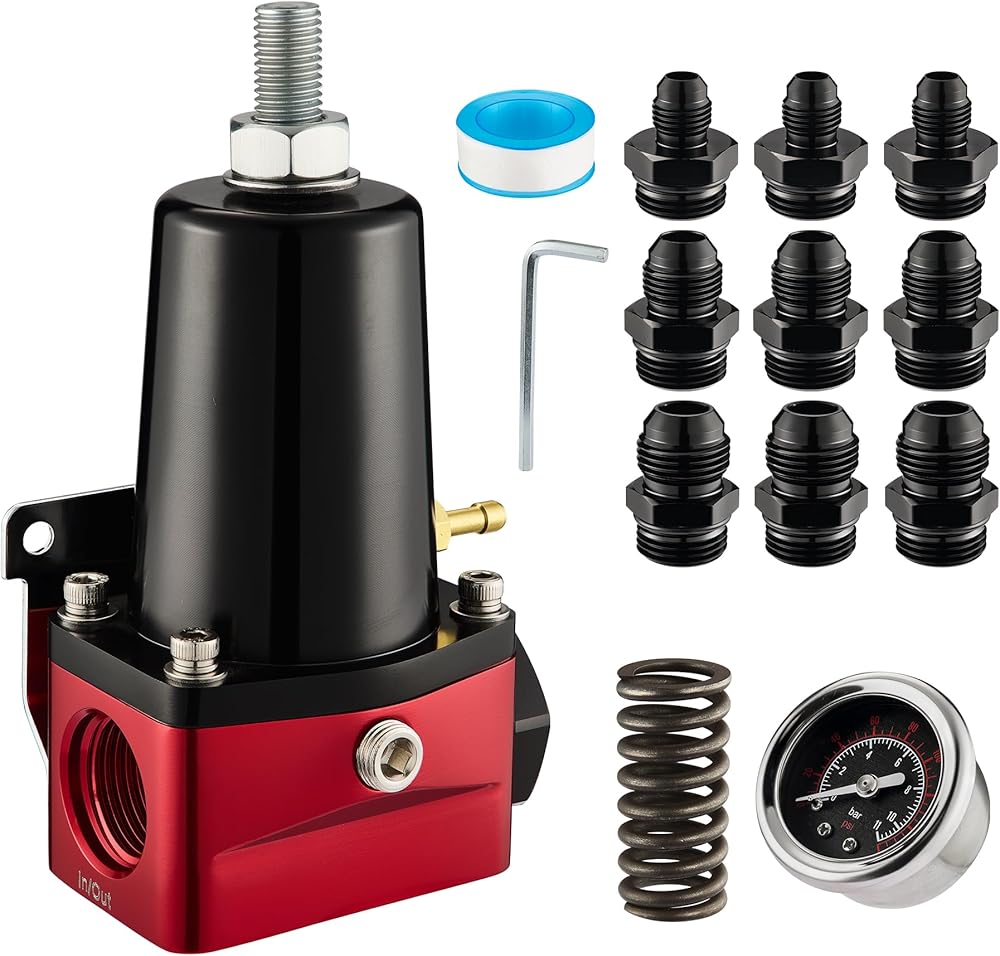

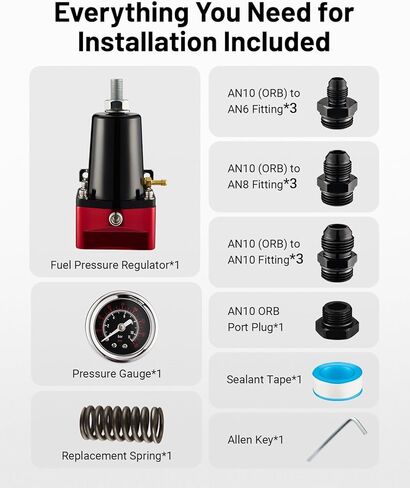

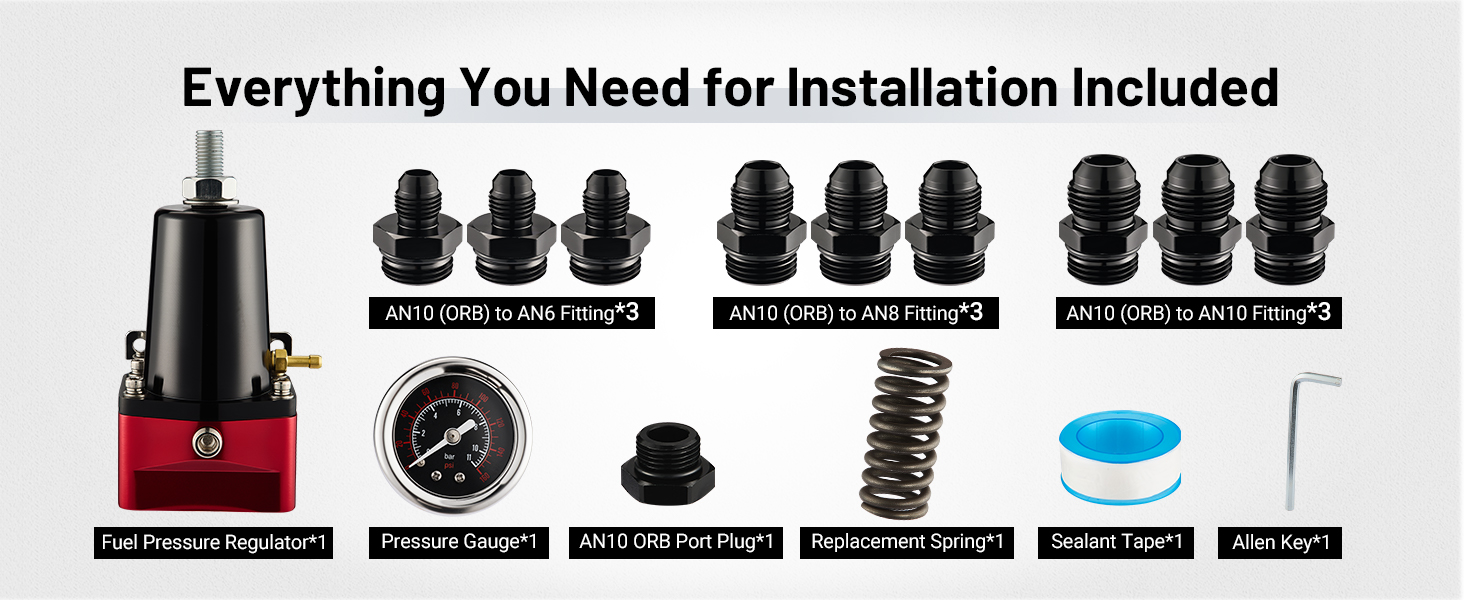

【Package Includes】- 1 x fuel pressure regulator, 1 x pressure gauge, 1 x replacement spring, 1 x AN10 ORB port plug, 1 x allen key, 1 x sealant tape, 3 x AN10 ORB to AN6 fitting, 3 x AN10 ORB to AN8 fittings, 3 x AN10 ORB to AN10 fittings.

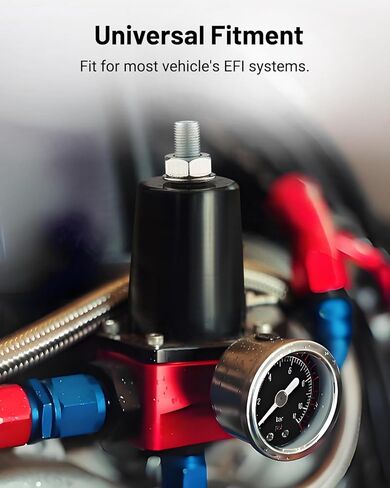

【Application】- The Evil energy fuel pressure regulator is suitable for most vehicles' electronic fuel injection systems and can maintain the engine's fuel pressure at a specified value. (Note:when installing fuel regulator NPT pressure gauge port,please use thread sealant tape for sealing.Professional installation is highly recommended.)
