REPLACEABLE FUEL FILTER ELEMENT
Only need to replace the filter element regularly to keep the filter effective and save the cost of use.

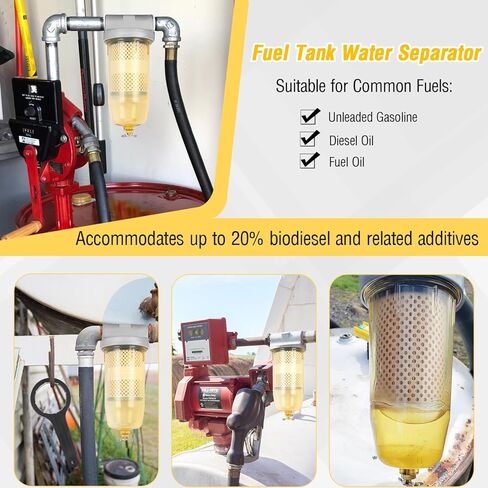

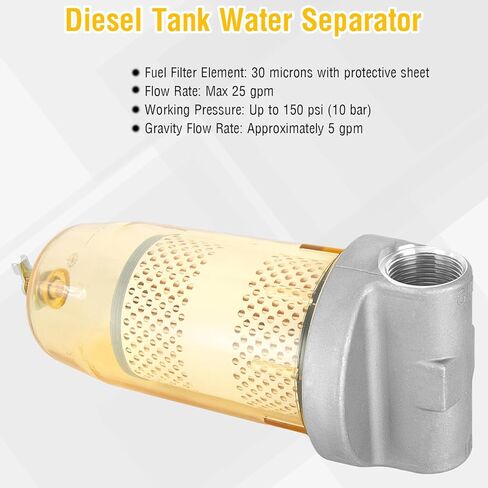

496 DIESEL TRANSFER TANK FUEL FILTER
Excellent fuel tank filter assembly for getting rid of water and debris down to 30 microns.
1" NPT inlet/outlet mean it will work with most hose sizes to ensure a good flow for filling equipment.
DURABLE CONSTRUCTION
The corrosion-resistant housing and reinforced filter media ensure long-lasting performance, whether you're driving in extreme heat or freezing cold, you can count on the diesel fuel filter assembly to deliver consistent results.
IMPROVED ENGINE PROTECTION
Regularly replacing your fuel filter with the 496 Fuel Tank Filter Assembly helps prevent engine issues caused by impurities, which reduce the risk of costly repairs, and ensure your vehicle runs smoothly for years to come.
SPECIFICATION

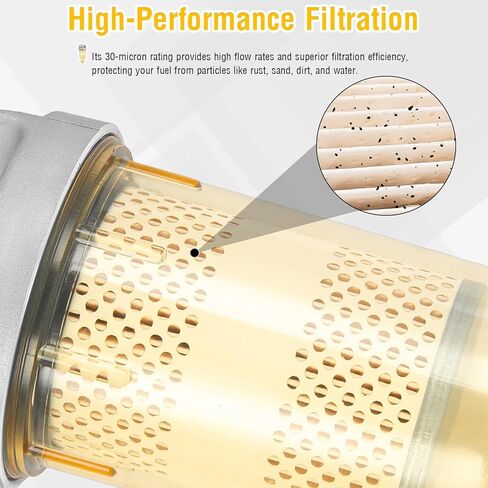

Fuel Filter Element: 30 microns with protective sheet

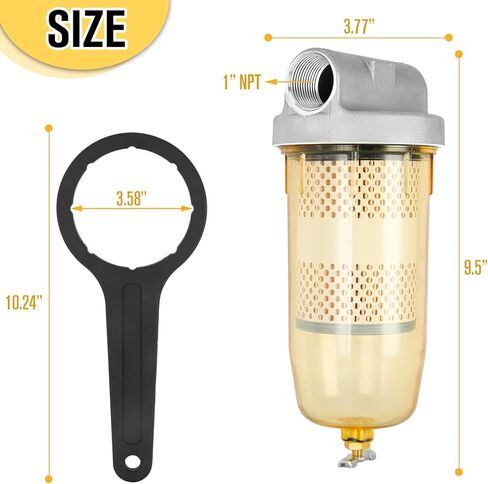

Height: 9.5”
Inlet/Outlet Size: 1” NPT

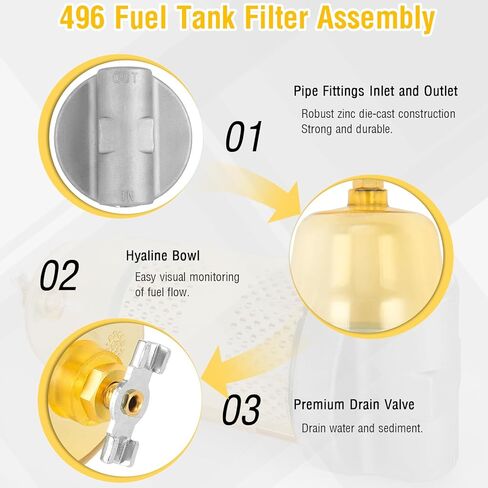

Hyaline Bowl with Drain Valve
Flow Rate: Max 25 gpm
Working Pressure: Up to 150 psi (10 bar)
Gravity Flow Rate: Approximately 5 gpm

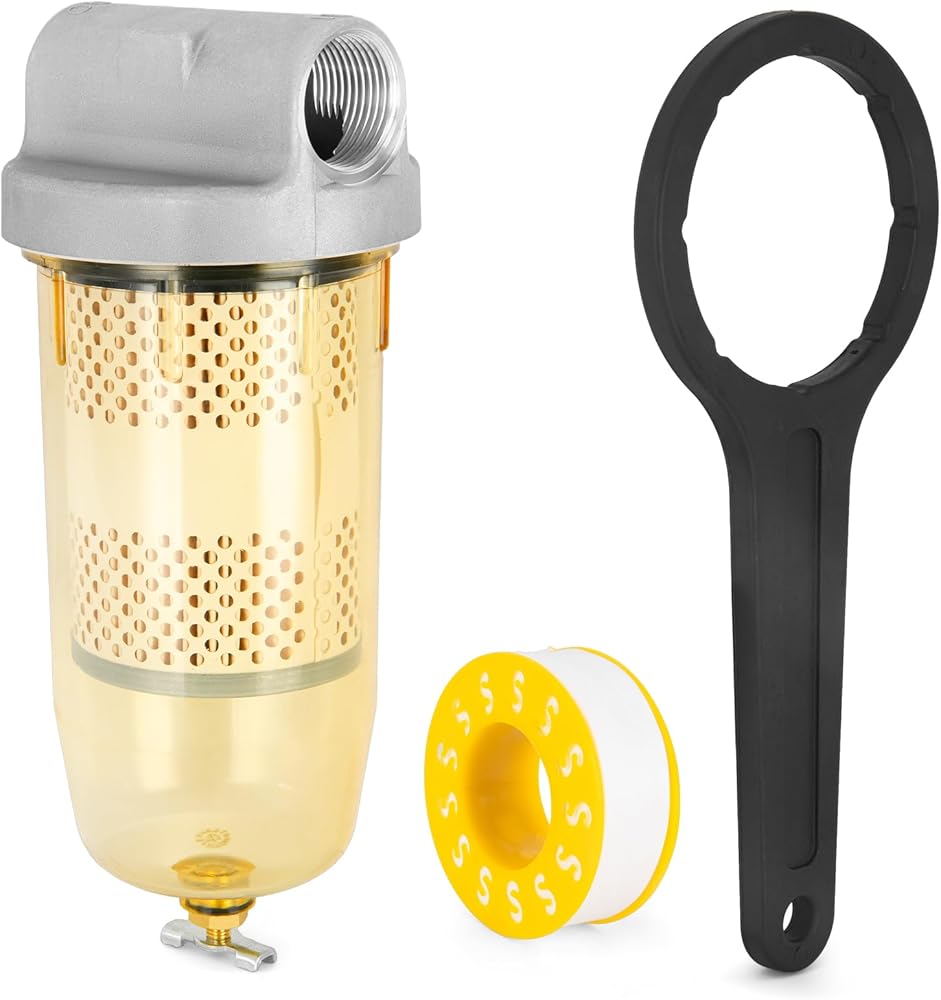

PACKAGE INCLUDE
1 x 496 Fuel Tank Filter

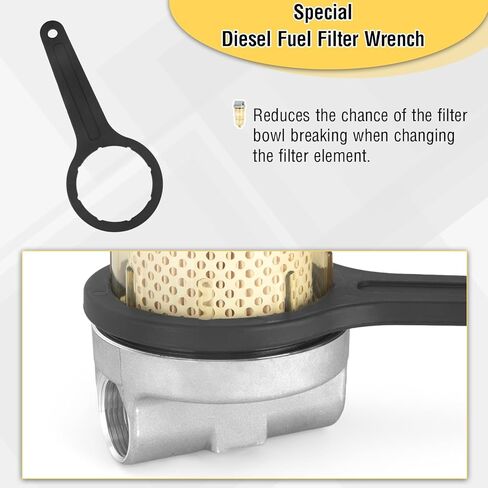

1 x Wrench
1 x Teflon Tape
HOW TO INSTALL
1. Attach filter top cap to storage tank valve on opening marked “IN”.
2. Attach hose and nozzle to filter opening marked “OUT”.
3. When installing the element and bowl, apply a coating of oil to each side of gasket.

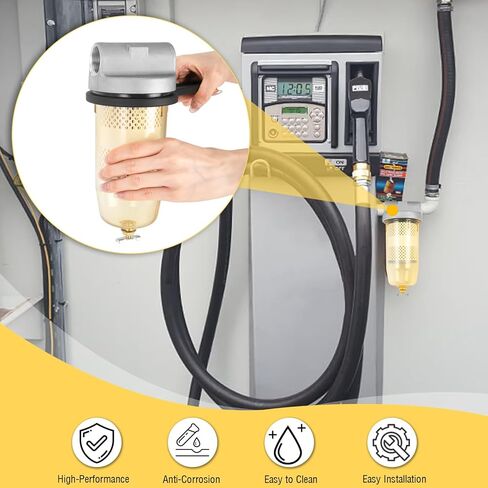

4. These components should be hand tightened only. Over tightening of the filter bowl will result in difficulty in removal at a later date.
5. When gas tank filter assembly is complete, check for leaks.
