Specification:

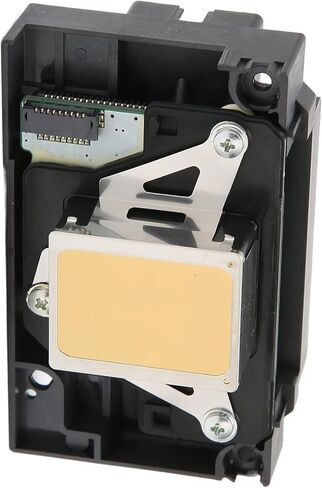

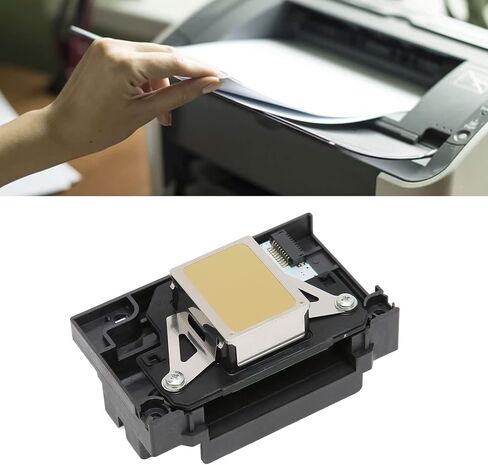

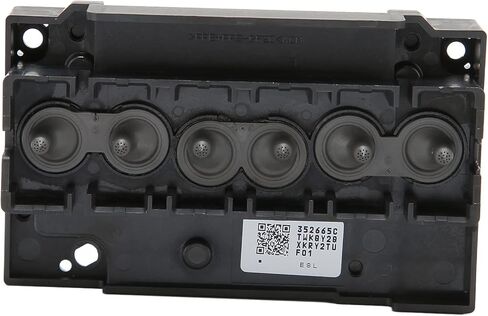

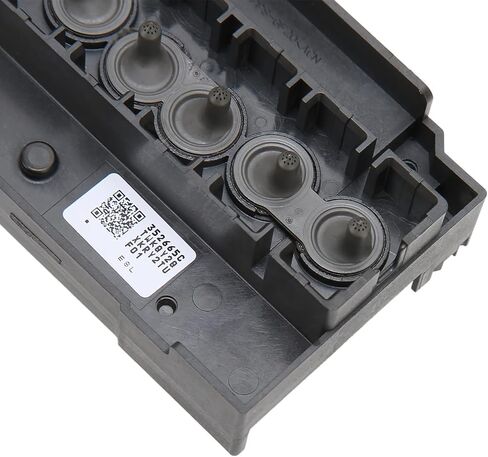

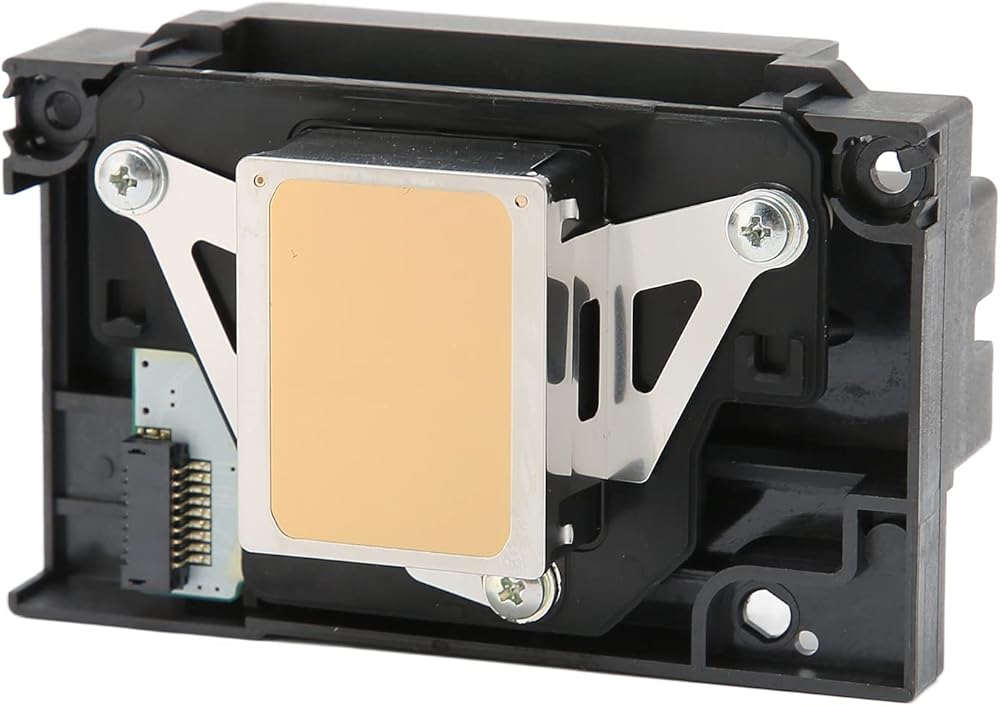

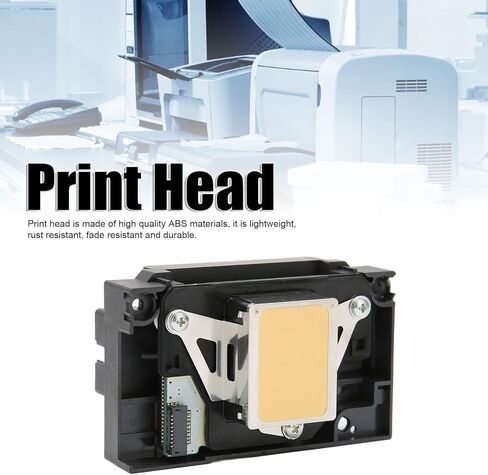

Item Type: Print Head
Material: ABS
Color: As Pictures Shown
Weight: Approx. 95g / 3.4oz
Application: for R260 R390 1390 L1800 1400 1430 1500W

Package List:
1 x Print

Note:
1. Repair of soft plugs: (1) The clogging of the soft plug refers to the disconnection failure caused by the increase in the viscosity of the ink on the nozzle due to various reasons. Sometimes it is only attached to the of the nozzle of the ink outlet. Generally, it can be recovered by dipping in the original ink and cleaning it for many times.
(2) Use the print cleaning function in the utility tool of the printer driver to clean.
2. Repair of hard plugs:
(1) Scope of application of the immersion method: The obstruction is light. Solution: First find a metal container with abottom surface, and add a little 95% concentration of organic solvent alcohol solution to the container. The alcohol should just cover the stainless steelof the print but do not let it Where the PCB board comes into with alcohol. The soaking time generally ranges from 2 hours to 4 days.
(2) The scope of application of the pressure cleaning method: the obstruction is heavier. Solution: Use the plastic tube or needle part of a infusion set to make the interface between the syringe and the ink supply port of the print (the joint must be tight), After the interface is made, place the of the print in 95% organic solvent alcohol, and inhale the alcohol through the print (note that it can only be inhaled) into the syringe needle for several times. The advantage is that the cleaning effect is good. Generally clogged printheads can be cleaned this way. It is worth noting that when inhaling alcohol, the force should be uniform and consistent, and generally will not cause physical damage. It's just that the interface needs to be made by hand according to the actual situation, so
