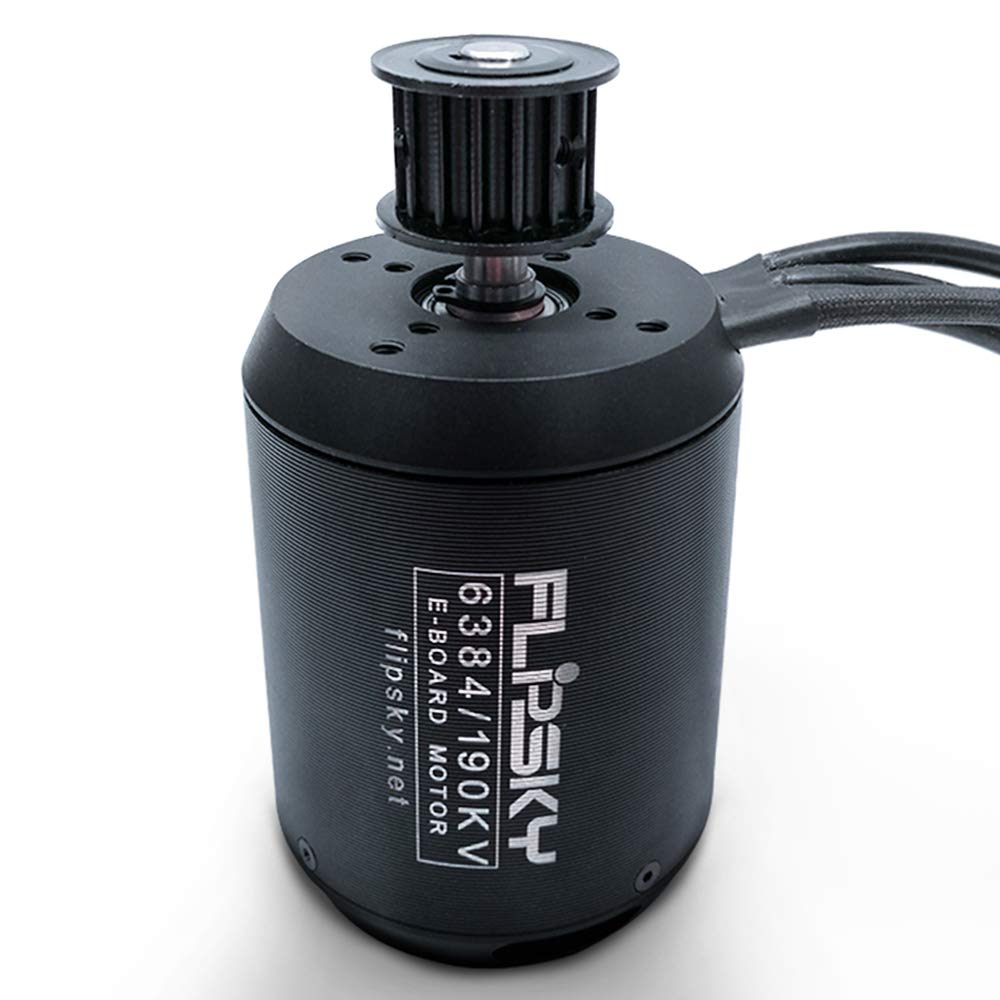

Flipsky BLDC Belt Motor with Pulley 10mm Shaft 6384 190KV 4000W for Electric Skateboard Blushless DC Motor for Electric Bike Sensered Motor for SK8

KWD 52
– 1 +

Special Features

  • This Motor Comes with Max KV: 190 RPM/V, High Torque(Max Torque is 9 N.m),So You Can Get More Mechanical Energy Per Unit of Power. Double your productivity!
  • The Max Output Watt of the motor is 4600W and Not Easy to Get Hot that you can work Smoothly
  • Stator: Lamination Japan steel
  • 12awg high strand silicone wire with 4.0mm gold bullet connectors and 10mm 16T GEAR.
  • Both support sensor and sensorless mode!

Description

Product Spec:
Max Power: 4000 Watts
Max Current: 95 Amps
Max Volts: 4-13S
Max Torque: 9Nm
Motor Resistance: 0.05Ohm
Recommend ESC:VESC4&VESC6(3-13S )
Weight: 1000g
The motor length:84mm
The motor diameter: 63mm

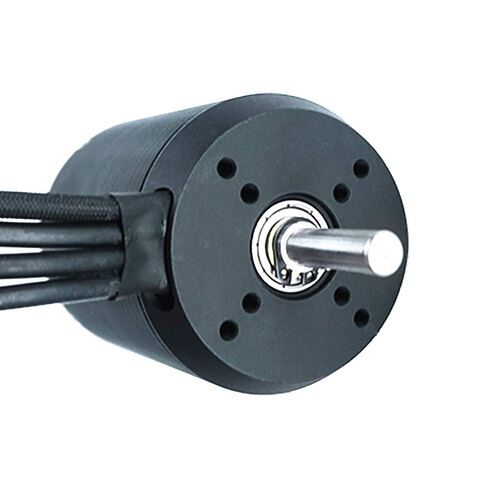

Shaft Diameter 8mm/10mm, 30mm length(8mm ), 25mm
length(10mm),3x3x14mm keyway slot.
Motor Wire: 12AWG wire with 4.0mm Gold Bullet Connector
Male.
Wire configuration:
Blue = A
Black = B
Yellow = C
Stator: 0.2mm thickness lamination japan steel
Magnet: N42SH high temp curve magnet
BLDC Motor
The number of pole: 14
Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm/2mm pitch

Internal PCB with 120 Degree Hall Effect Sensors.
Motor can be used with or without a sensor. Sensorless operation is most common.
VESC Sensor Wires required to use with VESC.

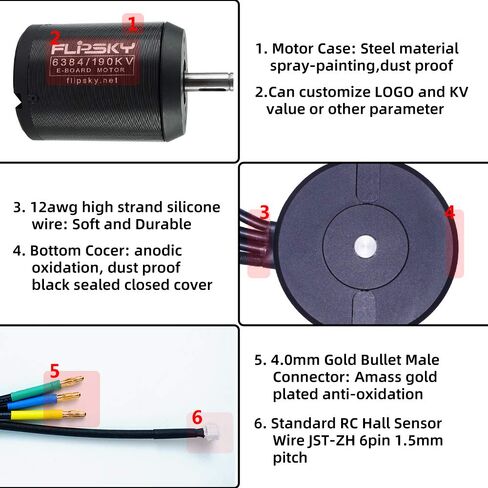

What's Our Product Feature?
Stator: Lamination Japan steel
12awg high strand silicone wire with 4.0mm gold bullet connectors.
Both support sensor and sensorless mode!
The 6384 motor 8mm shaft come with 8mm motor pulley is 20mm width,
10mm shaft come with 10mm motor pulley is 17mm width:
