Overview

This embedded barcode scanner module delivers fast and precise decoding for both 1D barcodes and 2D QR codes, making it a versatile solution for a wide range of industrial
and commercial applications. Whether you're building a POS terminal, integrating into a vending machine, or adding scanning to a kiosk or ATM, this compact module is ready
for the task.

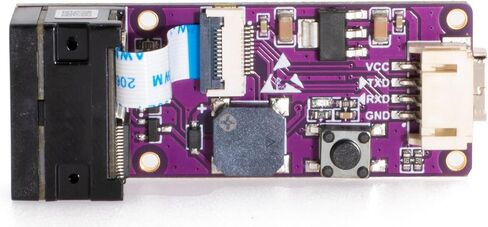

Equipped with both USB Type-C and UART (TTL) interfaces, the module provides flexible connectivity for developers working with platforms like for Arduino, Raspberry Pi, STM32,
and other embedded controllers. It supports seamless decoding from paper, plastic, or digital screens, making it ideal for modern mobile payment systems and inventory solutions.

Its 360° scan capability, along with support for ±65° tilt and ±60° deflection, allows the scanner to capture codes from multiple angles without needing precise alignment. This results
in faster user interaction and greater adaptability in constrained environments.

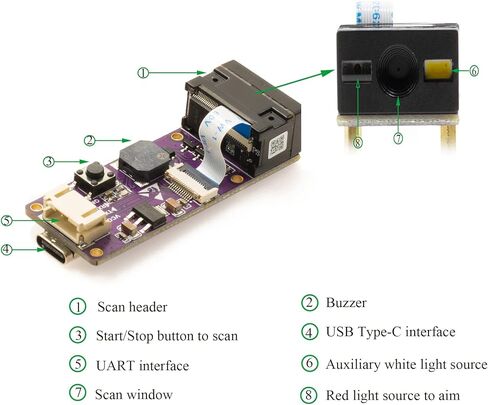

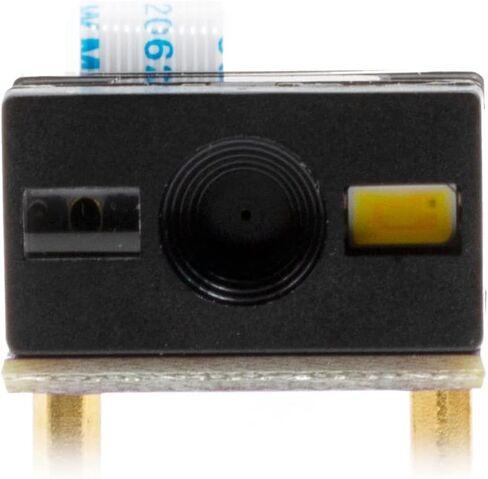

The module features red aiming light for accurate target positioning and white LED illumination to support scanning in dim or varied lighting conditions. It supports major barcode
formats such as EAN-13, Code 39, Code 128, QR Code, DataMatrix, and others.

For developers and system integrators, the module offers an easy setup process via barcode configuration commands, allowing quick adjustments to parameters such as baud rate,
output type, and trigger settings—without writing a line of code.

Whether you're creating a smart terminal, embedded access control system, or developing your own custom scanning product, this barcode scanner module combines performance,
flexibility, and ease of integration into one compact unit.

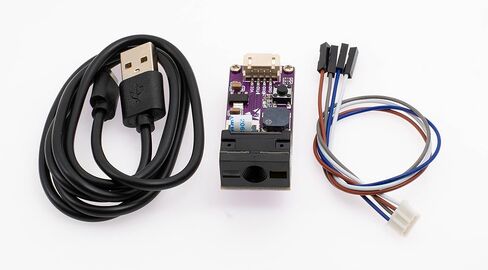

Package Contents

1. Barcode scanner reader x1
2. USB Type-C cable x1
3. PH2.0 4pin x1
