10KG Propane Smelting Furnace Kit with Crucible Tongs Set, Double Forge Burners, Gas Metal Melting Furnace Kit with 2 Graphite Crucibles(10kg+6kg), Ingot Mould and Tong, Home Foundry Furnace Kit for C

KWD 94
– 1 +

Special Features

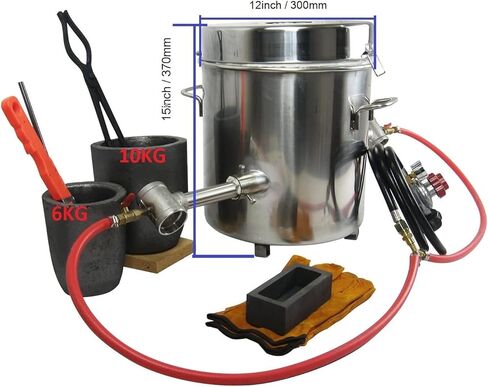

  • 【Large Melting Capacity】The propane melting furnace size is 12" diameter x 15"Height (30cm x 37cm), which could contains large crucibles up to 16KG. Our metal smelting furnace kit equipped 2 crucibles for you. 10KG graphite crucibles can melt 10kg copper or 3kg aluminum or 11.5kg silver or 18.7kg gold; 6kg crucible can melt 6KG copper,11.2KG gold, 1.8KG aluminum, 7KG silver. The LSMIITTH smelter kit are perfect for home, hobby, and commercial use.

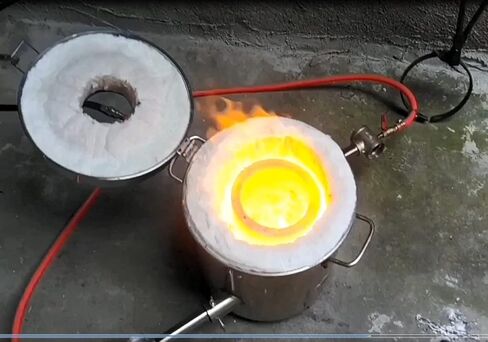

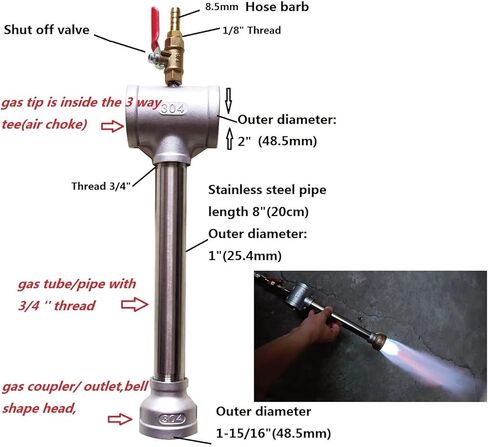

  • 【Double Forge Burners Furnace】LSMIITTH metal smelter take special design with double forge burners on both sides of furnace. Compared to the single burner or the double burner in one side, the flame would be more evenly distributed. The output of each burner is 100,000 BTU. Fast melting can save 50% of the time and 20% of the gas cost. Bell burner head which is connected through threads, easy to replace. (Attention: It does not work with BBQ low pressure gas tank fitting, and home natrual gas.)

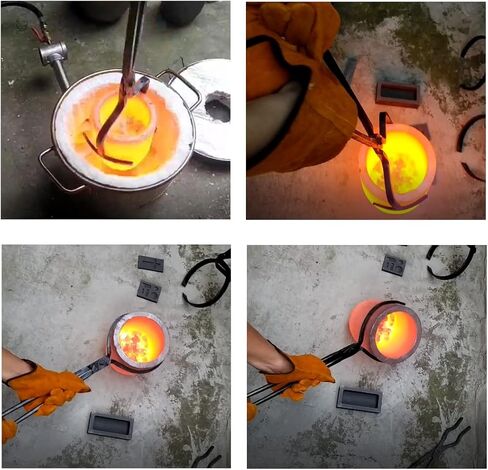

  • 【Crucible Tongs for Pouring and Lifting】The jaw of crucible tongs size are 6 inch, they are perfect for the LSMIITTH 10KG-16KG large crucibles. The crucible holder length is 24 inch, which provide a safe distance when you are lifting or pouring hot molten metal. You completely could lifting the crucible with the tongs on your own.
  • 【High Temperature Resistance】High pressure smelting furnace can withstand high temperatures of 2642°F (1450° C) , our graphite crucibles could withstand 3272°F(1800℃), which means that you could use this foundry to melt copper, gold, silver, brass, aluminum, zinc, tin, glass and other metals with melting points below 2372℉(1300℃). Professional casting tools very suitable for home forging, jewelry processing, metal casting. Attention: The smelting furnace do not melt iron or steel.
  • 【Safe and Proffesional】The gas foundry furnace is made of stainless steel, thinness is 1mm, easy to clean and corrosion preventive. The full body and lid are fully lined with 2 inch of ceramic fiber insulation. Highly heat resistant. Safe enough for smelting. The burner gas hose with regulator input is QQC type, output is 5/8", which can hook up to American standard Propane Tank directly. Maximum Output is 30PSI (CSA). You can control gas consumption by adjusting gas pressure easily.

Description

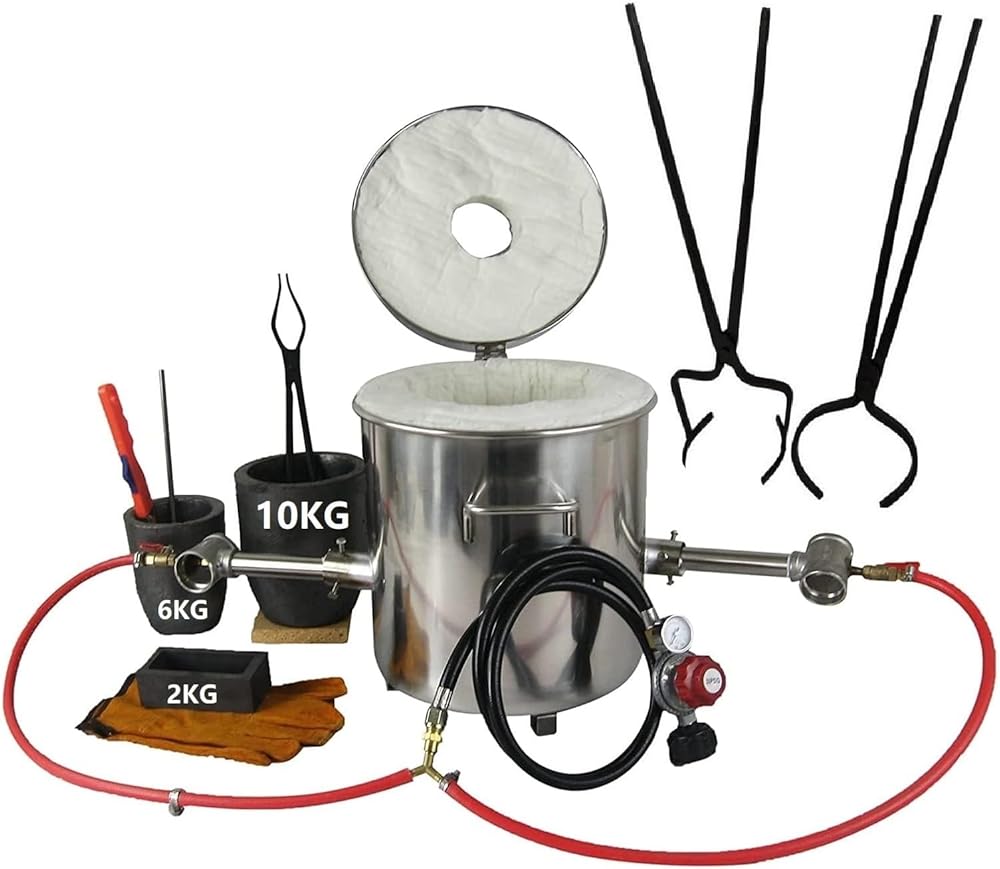

Double Forge Burners Metal Furnace Kits Information: Furnace Color: silver Furnace Body Size: 12" diameter x 15" height (30cm x 37cm) Furnace Inner Size: 8" diameter x 10"Height (20cm x 24cm) 10kg crucible size: 6.1''(diameter) x 6.5''(height)(15.5x16.5cm). 6KG Crucible Size: 4.74'' outer diameter(12cm), 3.3''bottom diameter(8.5cm), 5.8'' height(14.8cm) 113ML Ingot Mold Size: Outer: 4.9'' x 2.3'' x 1.5'' (12.5 x 6 x 4cm), Inner: 4.1'' x 1.5'' x 1.1'' (10.5 x 4 x 3cm) Lifting Tong Length: 15.7inch (40CM) 2 in 1 Crucible Tong: 24inch(60cm), Jaw size: 6inch(15cm) Carbon Graphite Stirring Sticks Size: 0.3'' x 11.8'' (0.8 x 30cm), 0.6'' x 11.8'' (1.5 x 30cm) Gas hose with regulator: 4.9FT(1.5m), Input QCC type, Output 5/8", 30 PSI, CSA. Package Include: 1 x Propane Melting furnace 1 x forge burner 2 x Graphite Crucibles 1 x Ingot Mold 1 x mixing and stirring sticks 3 x Crucible Tongs for Lifting and Pouring 1 x Gas hose with regulator 1 x Refractory brick 1 x Protective Gloves 1 x Fireproof Mat (random size) 1 x igniter 1 x PTFE tape 1 x user manual
