DC Brush 6V Mini Gear Motor, Mini Micro N20 Gear Motor, Turbo Worm Geared Motor 1218GN N20 for DIY Engine Toy in Kuwait DC Brush 6V Mini Gear Motor, Mini Micro N20 Gear Motor, Turbo Worm Geared Motor 1218GN N20 for DIY Engine Toy in Kuwait DC Brush 6V Mini Gear Motor, Mini Micro N20 Gear Motor, Turbo Worm Geared Motor 1218GN N20 for DIY Engine Toy in Kuwait DC Brush 6V Mini Gear Motor, Mini Micro N20 Gear Motor, Turbo Worm Geared Motor 1218GN N20 for DIY Engine Toy in Kuwait DC Brush 6V Mini Gear Motor, Mini Micro N20 Gear Motor, Turbo Worm Geared Motor 1218GN N20 for DIY Engine Toy in Kuwait DC Brush 6V Mini Gear Motor, Mini Micro N20 Gear Motor, Turbo Worm Geared Motor 1218GN N20 for DIY Engine Toy in Kuwait DC Brush 6V Mini Gear Motor, Mini Micro N20 Gear Motor, Turbo Worm Geared Motor 1218GN N20 for DIY Engine Toy in Kuwait DC Brush 6V Mini Gear Motor, Mini Micro N20 Gear Motor, Turbo Worm Geared Motor 1218GN N20 for DIY Engine Toy in Kuwait DC Brush 6V Mini Gear Motor, Mini Micro N20 Gear Motor, Turbo Worm Geared Motor 1218GN N20 for DIY Engine Toy in Kuwait

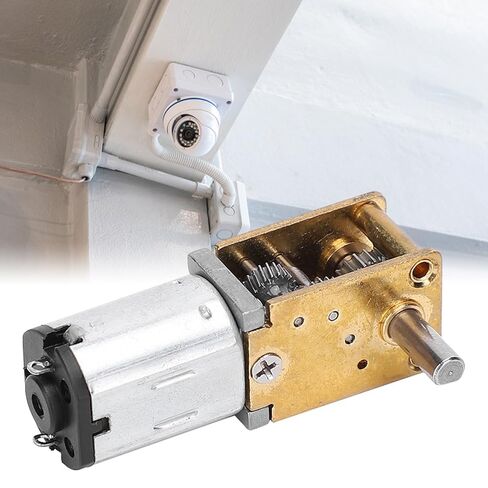

N20 Motor DC Brush 6V Micro Motor, Mini Micro N20 Gear Motor, Turbo Worm Geared Motor 1218GN N20 for DIY Engine Toy

KWD 4
Brand
CYTGOUPER
Weight
14 g
– 1 +

Special Features

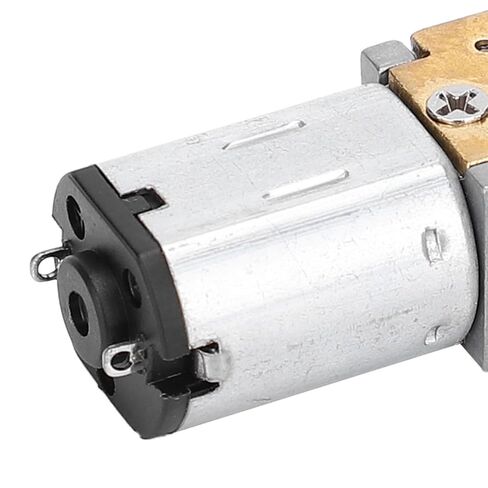

  • STRONG CONDUCTIVITY: The copper coil of the DC brush 6v mini gear motor has strong conductivity and low heat generation, which makes the motor output stable
  • HIGH PERFORMANCE: The mini micro N20 gear motor with encoder has strong motor power output, which is powerful and practical, large, low noise, stable performance, high efficiency, and easy to use

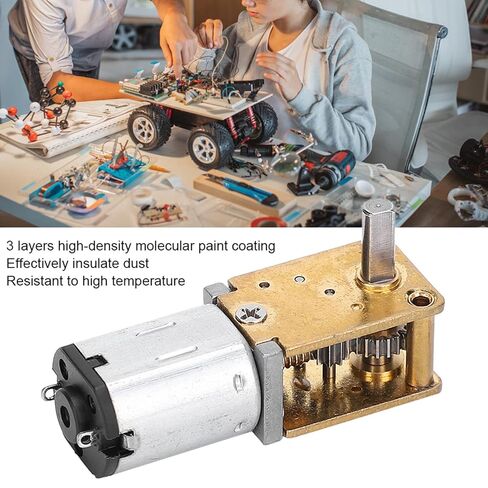

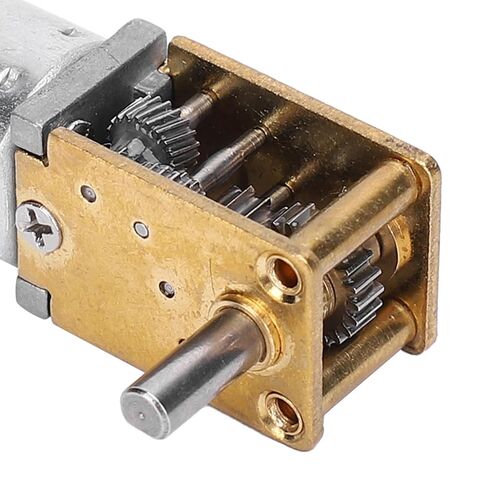

  • HIGH-TEMPERATURE : Mini metal gearwheel gear motor with 3 layers of high‑density molecular paint coating can effectively insulate dust and resist high temperatures. Gear transmission is stable, wear‑resistant, and possesses large transmission torsion
  • NO-LOAD SPEED DIFFERENCE: Miniature Motor: 3V 16RPM load speed is 13RPM, 120g.cm, 2.6KG.CM; 3V 30RPM load speed is 25RPM, 160g.cm, 2.2KG.CM; 6V 35RPM load speed is 28RPM, 220g.cm, 1.5 KG.CM; 6V 70RPM load speed is 61RPM, 320g.cm, 2.2KG.CM

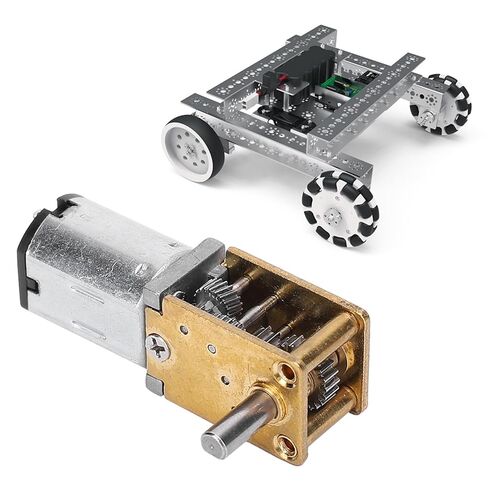

  • WIDE APPLICATION: DC gear motor is widely used in smart cars, robots, grills, ovens, washing machines, etc

Description

Specification:
Item Type: Mini Gear Motor
Material: Copper, brass, zinc alloy
Model: 1218GE-N20
Motor Type: Brush DC motor
Mainly used in electronic locks, smart car, robots, cameras, etc.

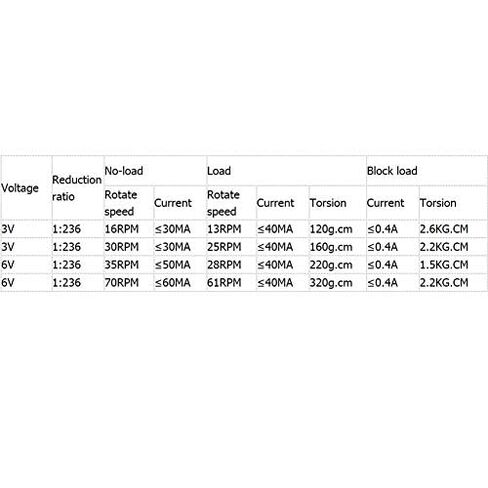

Parameter:

Voltage Reduction ratio No-load Load Block load
Rotate speed Current Rotate speed Current Torsion Current Torsion
3V 1:236 16RPM 30MA 13RPM 40MA 120g.cm 0.4A 2.6KG.CM
3V 1:236 30RPM 30MA 25RPM 40MA 160g.cm 0.4A 2.2KG.CM
6V 1:236 35RPM 50MA 28RPM 40MA 220g.cm 0.4A 1.5KG.CM

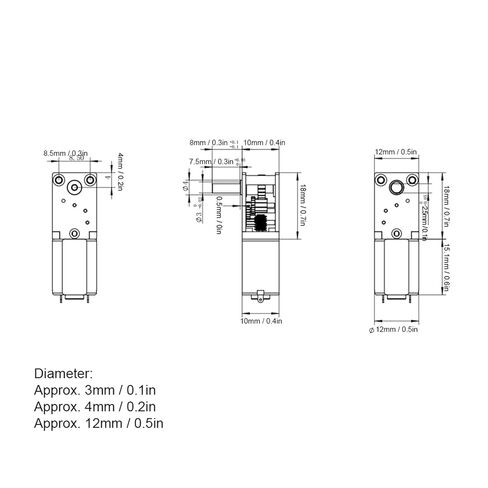

6V 1:236 70RPM 60MA 61RPM 40MA 320g.cm 0.4A 2.2KG.CM Size:
Approx. 8.5mm / 0.3in
Approx. 4mm / 0.2in
Approx. 8mm / 0.3in
Approx. 10mm / 0.4in
Approx. 7.5mm / 0.3in
Approx. 0.5mm / 0in
Approx. 18mm / 0.7in
Approx. 10mm / 0.4in
Approx. 12mm / 0.5in
Approx. 2.5mm / 0.1in
Approx. 18mm / 0.7in
Approx. 15.1mm / 0.6in
Diameter:
Approx. 3mm / 0.1in
Approx. 4mm / 0.2in
Approx. 12mm / 0.5in

Package List：
1 x Mini Gear Motor
Note:
Please allow 0.1mm error due to manual measurement. Thanks for your understanding.
