Specifications:

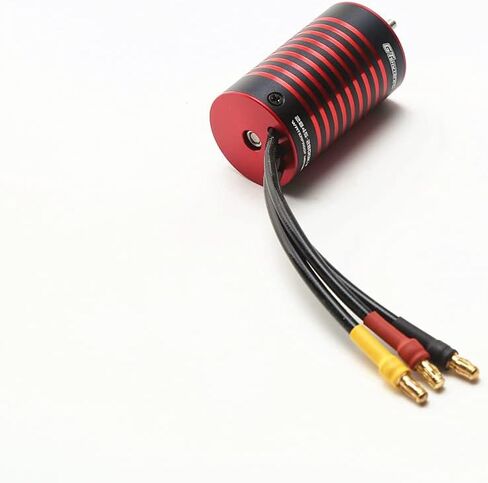

Name: 2838 Brushless Motor
Color: red
KV(RPM/Volt): 3200KV/3700KV/4400KV/4700KV/5700KV/5800KV
Watt:600
Max RPM: 50000
Max voltage: Max amps: 68A
Rotor poles: 4
Diameter: 28mm
Length: 39.5mm
Shaft: 3.175mm
Shaft length: 15mm
Connector: 3.5mm gold
Weight:92g

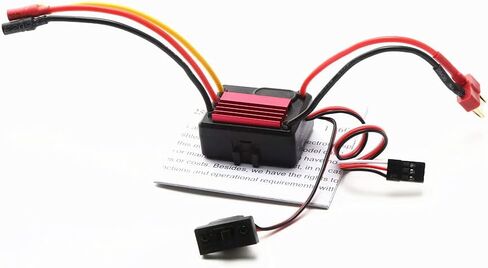

35A ESC:
Highest quality components to ensure high efficiency operation
Excellent start-up, acceleration and linearity features.
lenty of programmable items, suitable for various of chassis's, tires and racing tracks.
Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
Internal timing can be changed easily to make the ESC suitable for various of motors.

Specifications of ESC:
Constant current: 35A
Burst current: 120A (10S)
Power supply: 2-3S LiPo battery / 4-6S NiMh battery
BEC: linear switch 5V 1A

Programming card：
Programming Card for remote control Car ESC Brushless Electronic Speed Controller
Features:
Light weight
Easy to use
Portable design
Programming Card for remote control Car ESC Brushless Electronic Speed Controller, which
was specially designed for Brushless Electronic Speed Controller selled in our store.

Specifications:
Low voltage cut off: 3.1V/Cell 2.8V/Cell 3.3V/Cell No cut-off
Start mode:Medium, soft, strong
Max brake force: 25%, 50%, 75%, 100%
Max reverse force: 25%, 50%, 75%, 100%
Neutral range: 6%, 9%, 12%, work state

Package Information:
Package Size: 11.5*7*4cm
Package Weight: 177g
Plastic Package

Packing List:
1* 5800KV Brushless Motor
1* 35A ESC
1* Programming Card
