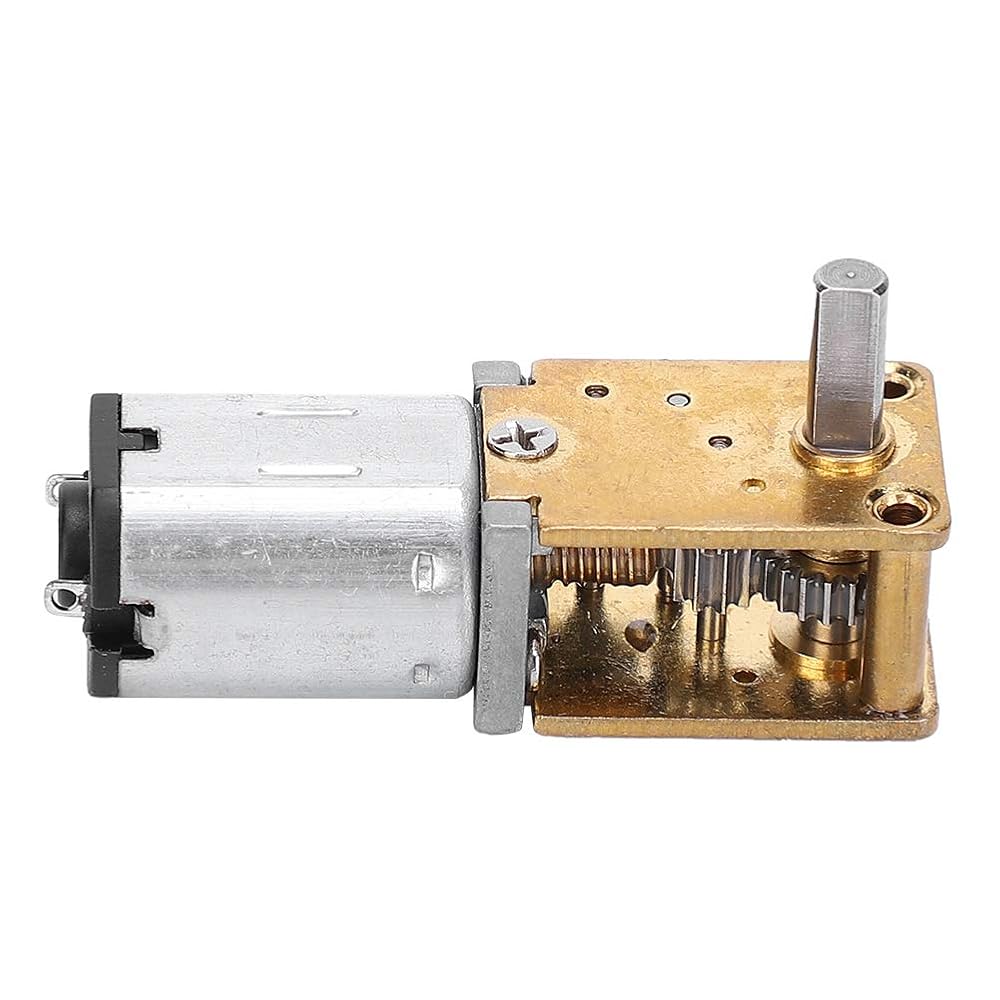

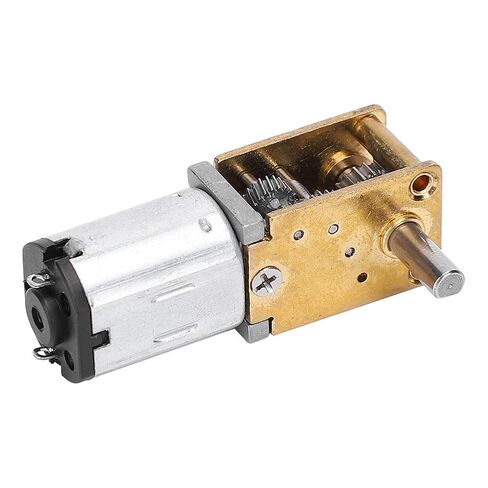

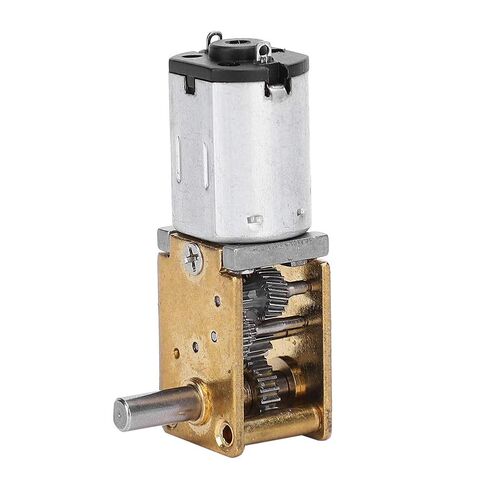

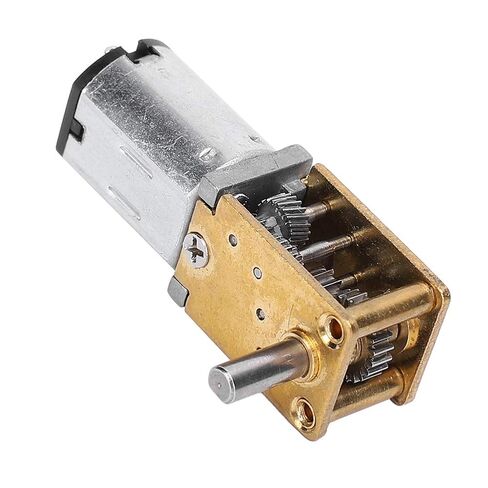

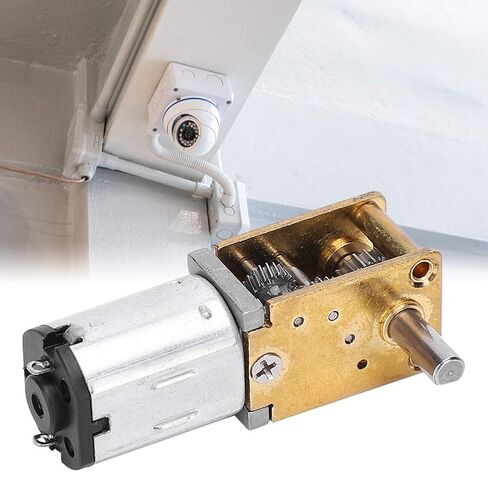

Mini Gear Motor, Mini Gear Motor Micro Gear Reducer Brush DC Motors Electronic Devices 1218GEN20 for Electronic Locks, Smart Car, Robots (DC3V 16RPM)

KWD 8
Brand
Zerone
Weight
1.4 kg
SizeDC3V 16RPM
– 1 +

Special Features

  • Stable and Wear-Resistant Gear : The mini reducer motor is equipped with a gear system that offers stability and wear-. This ensures a smooth and efficient , even under high or heavy load conditions. The gears are designed to withstand regular use without wearing out quickly.
  • Powerful and Practical Motor Power Output: The brush DC motor of the mini reducer motor provides a strong power output. This makes it powerful and practical, allowing it to perform well in various applications that require a robust motor, such as electronic locks, smart cars, robots, cameras, and more.
  • Powerful and Practical Motor Power Output: The brush DC motor of the mini reducer motor provides a strong power output. This makes it powerful and practical, allowing it to perform well in various applications that require a robust motor, such as electronic locks, smart cars, robots, cameras, and more.
  • Stable and Wear-Resistant Gear : The mini reducer motor is equipped with a gear system that offers stability and wear-. This ensures a smooth and efficient , even under high or heavy load conditions. The gears are designed to withstand regular use without wearing out quickly.
  • High Temperature and Insulation: The motor is coated with a three-layer high-density molecular paint coating. This coating effectively insulates the motor, protecting it from and also making it to high temperatures. This allows the motor to operate reliably even in challenging environments.

Description

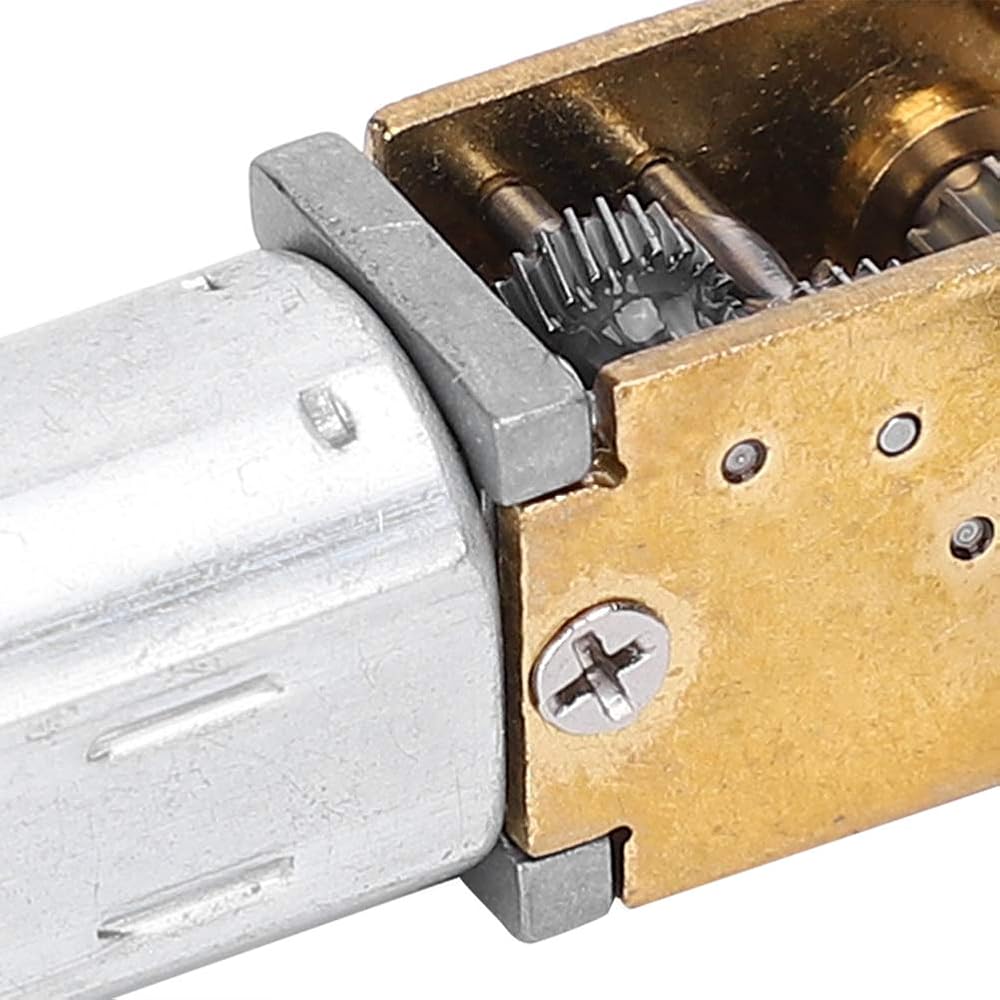

1. Gear is stable, wear?resistant, and possess large torsion

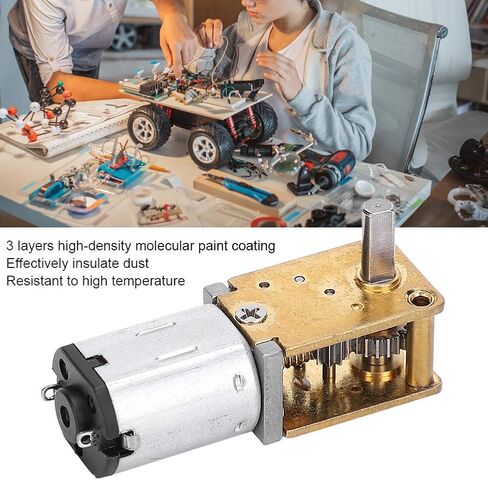

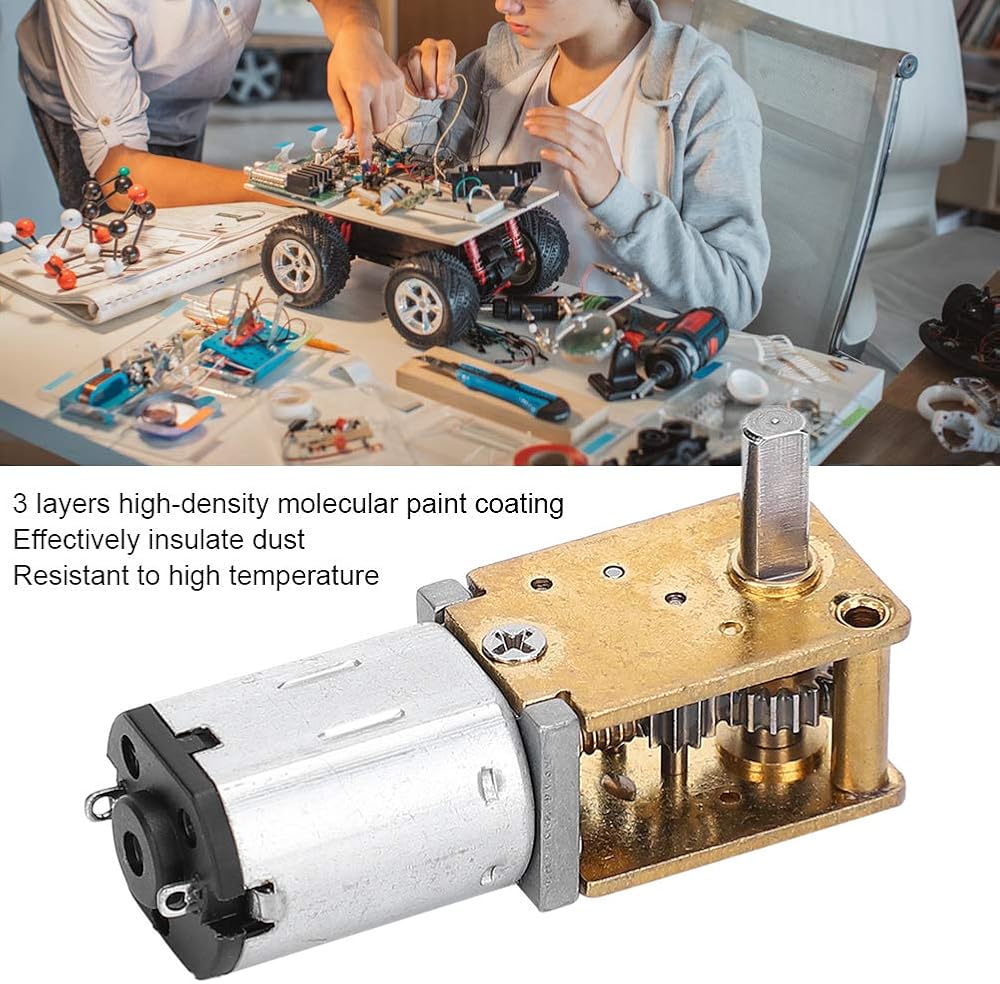

2. 3 layers of high?density molecular paint coating can effectively insulate dust and to high temperature
3. This brush DC motor have strong motor power output, which is powerful and practical
4. Made of copper, brass and zinc alloy material, sturdy and for a long service life

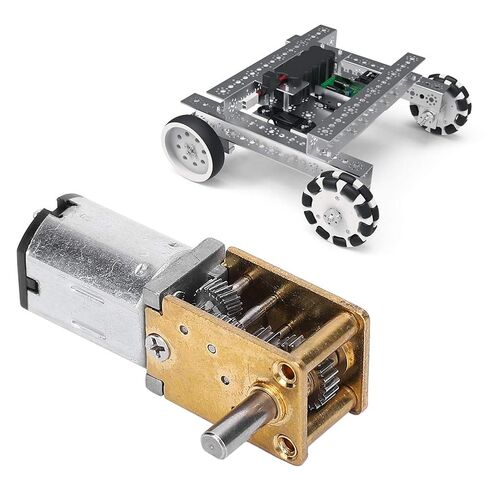

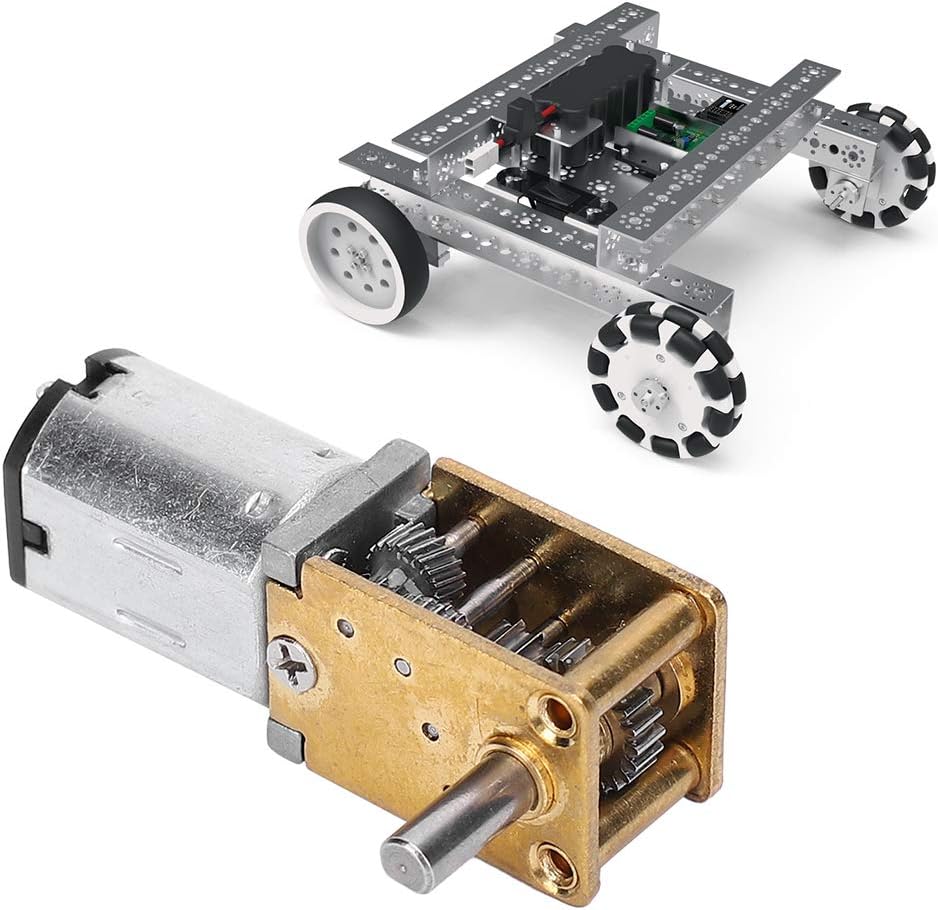

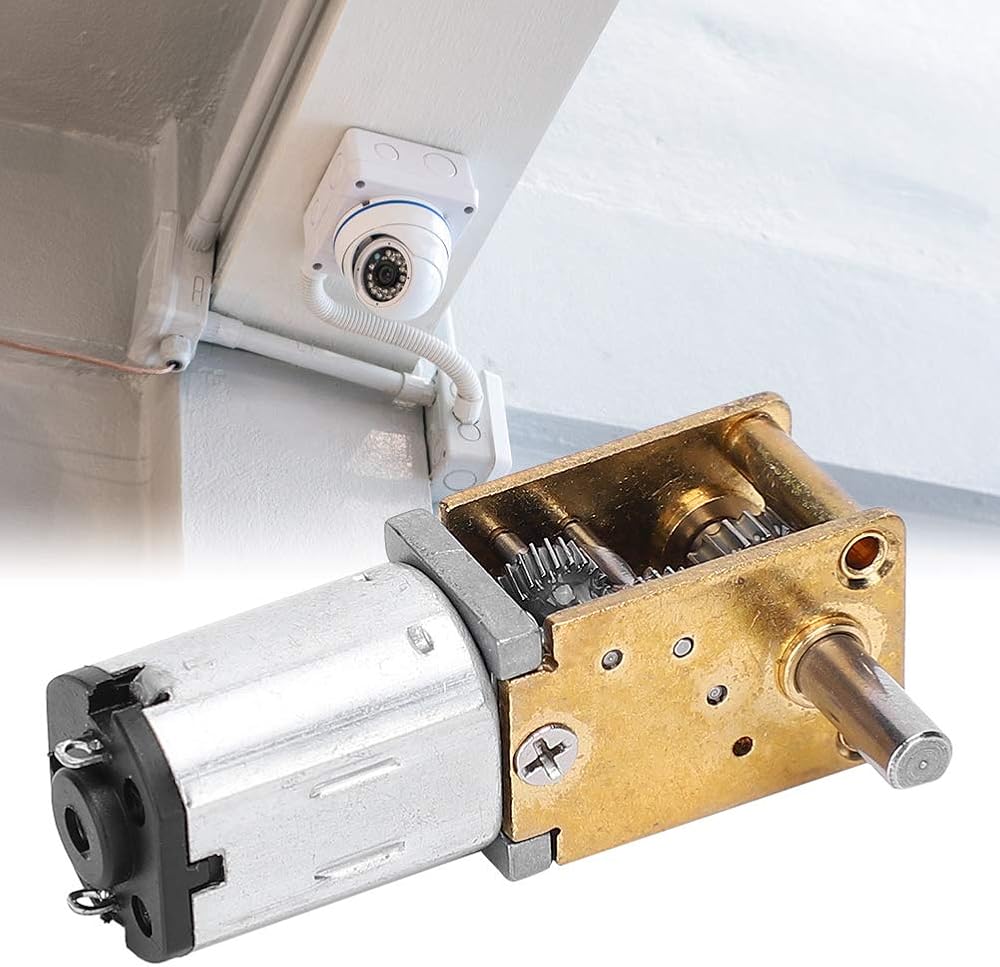

5. The product is Mainly used for electronic locks, smart car, robots, cameras, etc.

Spec:
Item Type: Mini Gear Motor
Material: Copper, brass, zinc alloy
Model: 1218GE-N20
Motor Type: Brush DC motor
Mainly used in electronic locks, smart car, robots, cameras, etc.
Parameter:
Voltage Reduction ratio No-load Load Block load
Rotate speed Current Rotate speed Current Torsion Current Torsion
3V 1:236 16RPM ?30MA 13RPM ?40MA 120g.cm ?0.4A 2.6KG.CM
3V 1:236 30RPM ?30MA 25RPM ?40MA 160g.cm ?0.4A 2.2KG.CM
6V 1:236 35RPM ?50MA 28RPM ?40MA 220g.cm ?0.4A 1.5KG.CM

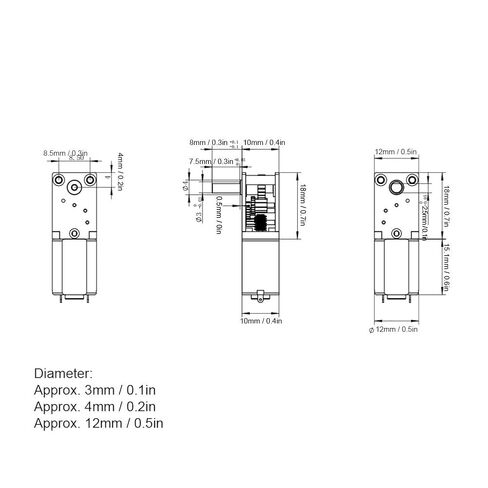

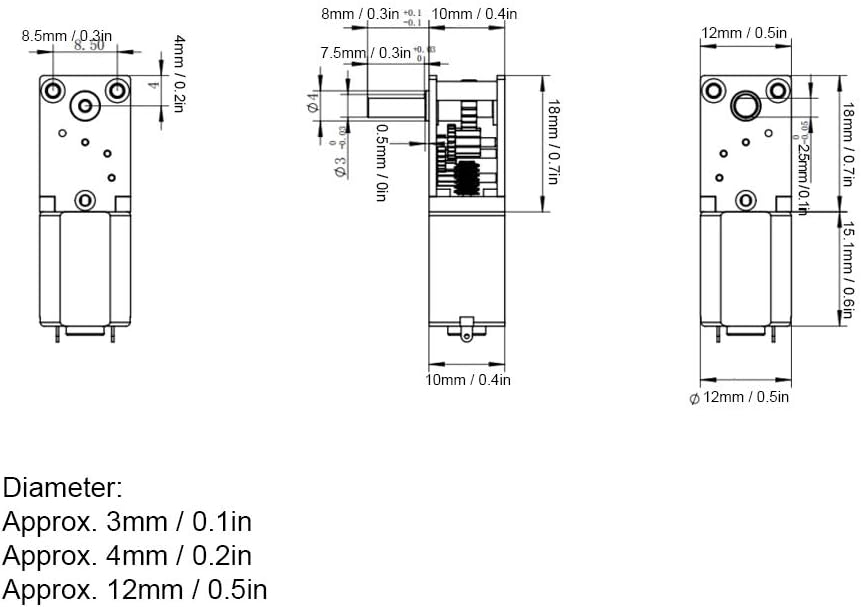

6V 1:236 70RPM ?60MA 61RPM ?40MA 320g.cm ?0.4A 2.2KG.CM Size:
Approx. 8.5mm / 0.3in
Approx. 4mm / 0.2in
Approx. 8mm / 0.3in
Approx. 10mm / 0.4in
Approx. 7.5mm / 0.3in
Approx. 0.5mm / 0in
Approx. 18mm / 0.7in
Approx. 10mm / 0.4in
Approx. 12mm / 0.5in
Approx. 2.5mm / 0.1in
Approx. 18mm / 0.7in
Approx. 15.1mm / 0.6in
Diameter:
Approx. 3mm / 0.1in
Approx. 4mm / 0.2in
Approx. 12mm / 0.5in

Package List:
1 x Mini Gear Motor

Notice:
Please allow 0.1mm error due to manual measurement. Thanks for your understanding.
