1pcs With Arm

KWD 9.500
Brand
NEEBRC
Weight
37 g
Color1pcs With Arm
– 1 +

Special Features

  • 【Excellent Quality Workmanship】:The 21G Micro Digital Servo made with excellent Plastic Shell material (lightweight and fast heat dissipation) and high-precision Full Metal Gear (more durable and prevent tooth sweeping) with Hard Anodizing, combined with Dual Ball Bearings, has a longer service life.
  • 【High Performance Digital Standard】:The 21G Mini Digital Servo with Extra Large Torque can achieve Low Noise, Good Stability, Small Vibration, Smooth Operation, Excellent Linearity, Precision Control, Fast Response.
  • 【Electronic Protection】:The NB-S007M 21G Servo will undergo current reduction and power outage treatment when the locked rotor time and current exceed the preset values, preventing blockage and burning. A solid hardware foundation combined with more advanced software allows the servo to provide high torque output while significantly reducing the probability of damage to the servo under high loads.
  • 【Widely Use 】:The Mini Digital Servo is suitable for remote control vehicles such as Crawlers, Buggy, RC Car, Boat,RC Aircraft,RC Helicopters, On-Road,Off-Road,RC Drones,Toys,etc.Especially this servo is most suitable for micro control fields such as aircraft models, drones, toys, intelligent switches, etc.
  • 【Note】:In the frequency range of 500~2500us, the maximum controllable angle of the servo can be accurately achieved at 180 degrees, and the servo can achieve a control angle of 90 degrees under the control of a transmitter.

Description

Features:
 High performance digital standard
 Low noise and long service life
 Small volume and large torque
 Suit for RC car boat helicopter model
 Specifications:
 Item name: NEEBRC S007M
 Quantity: 1pcs
 Operating Voltage : 4.8~6.0V DC
 Max. Torque : 4.8V≥3.80kgf·cm ； 6.0V≥4.20kgf·cm
 No Load Speed : 4.8V≤0.10sec/60°; 6.0V≤0.12sec/60°
 Stall Current：4.8V≦1500mA；6.0V≦1800mA
 Consumption Current* (No Load)：4.8V ≦200mA ；6.0V≦210mA
 Max. Operating Travel Angle：180°±1°(500~2500μs）
 Dead Band Width: ≤ 1us
 Mechanical Limit Angle: 360°
 Communication Interface: PWM
 Motor Type: Core motor
 Case Material: ABS

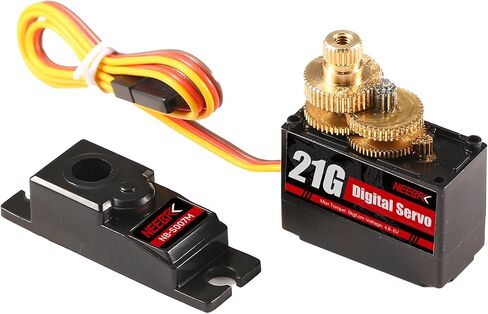

 Gear Set Material : Metal gear

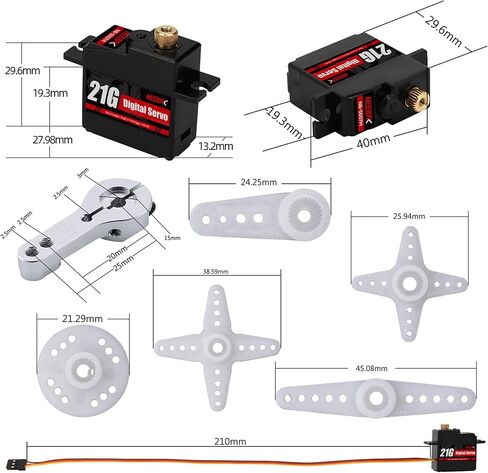

 Size: 29.6 × 13.2 × 40mm
 Length of Connector cable: JR 210±5mm (exposed without plug)
