Specification:
Features:
Designed for RC boat, giving fastest response of the motor.
Water cooling system can dissipate heat and reduce noise for your model.
Ensures the safety of component and extends its service life. (Need to use 704 silicone rubber by yourself).
It comes with a limited range of programming functions and are designed to be plug-n-play.
It consists of high quality components to get strong current endurance.
Specification:
Material: PBC
Color: Black

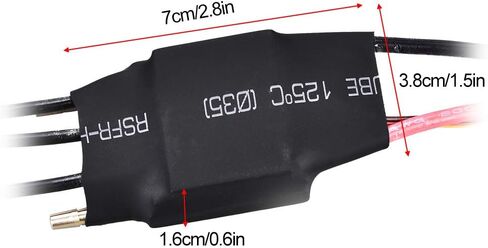

Size: Approx. 7 * 3.8 * 1.6cm / 2.8 * 1.5 * 0.6inch
Cont Current: 60A
Burst Current: 70A
BEC Model: Switch
BEC Output: 5V, 3A
Recommend Battery: Li-ion/Lipoly 2-4S; Ni-Mh/Ni-Cd 6-18NiMh (Not Included)
Cooling: Watercooled
Weight: 54g
Type: RC Part
Product is not waterproof.
Package Includes:
1 x ESC
Note:
Enter programming Mode:
1. Connect your motor and receiver to the ESC, but do not connect the battery yet.
2. Turn on your transmitter and move the throttle stick to the full. Please note: for futaba most transmitter have the throttle channel reversed by default.
3. Connect you battery and controller, which will initialize with a musical .
Phrases 2 programming:
After 3 seconds, the controller will start beeping a of tones followed by one or more beeps. Each represents a parameter that you can program and it repeats 3 times.
The parameters are:
Music + 1 beep: cell type and No. of cells;
Music + 2 beep: throttle setting;
Music + 3 beep: brake setting/throttletype (for Heli);
Music + 4 beep: direction and Cutoff Type;
Music + 5 beep: timing mode;
User programming options:
Cell Type: NiMH/NiCD/Lipoly/Li-ion
Cell Quantity: 2S-4S/6-18NIMH
Throttle Setting: Auto/Soft/Hard
Brake: No Brake/Soft/Medium/Hard
Direction: Clockwise/Counter Clockwise
Cut off: Soft/Hard
Timing: 1o/7o/15o/30o
PWM: 8Khz/16khz
