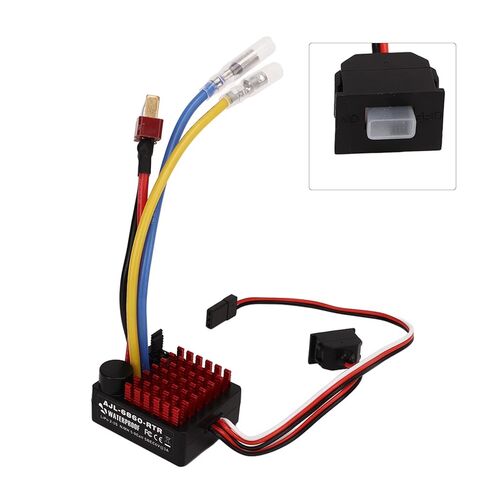

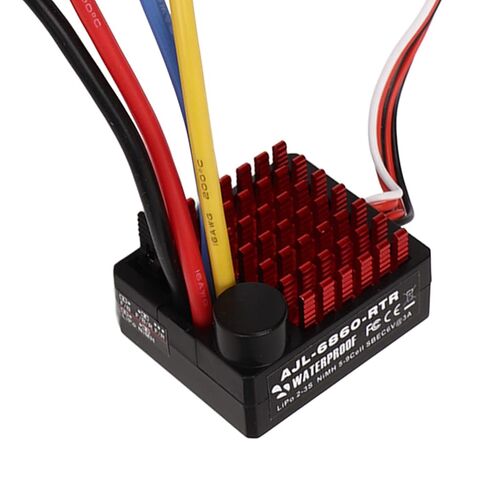

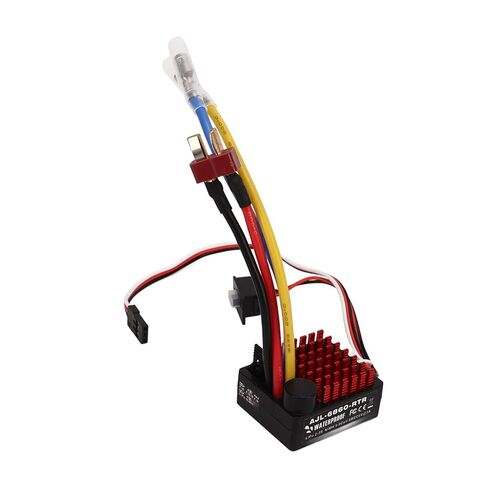

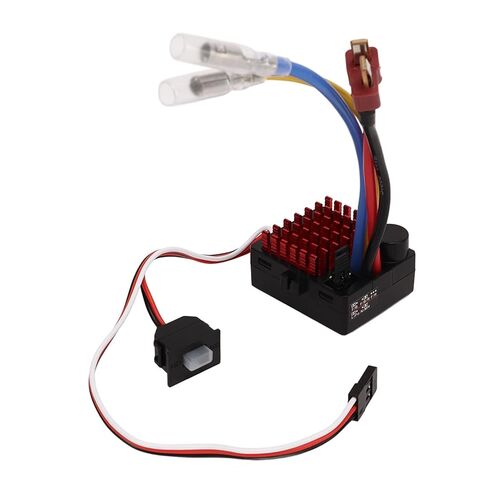

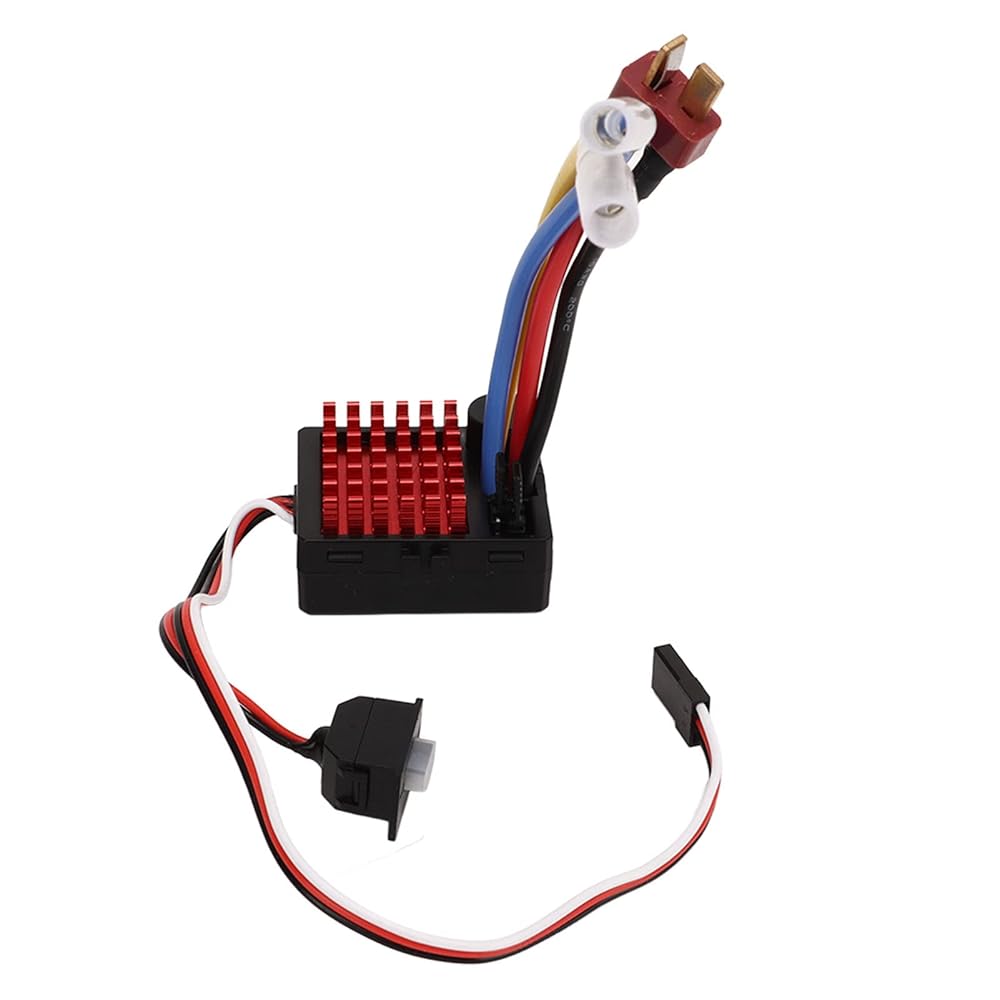

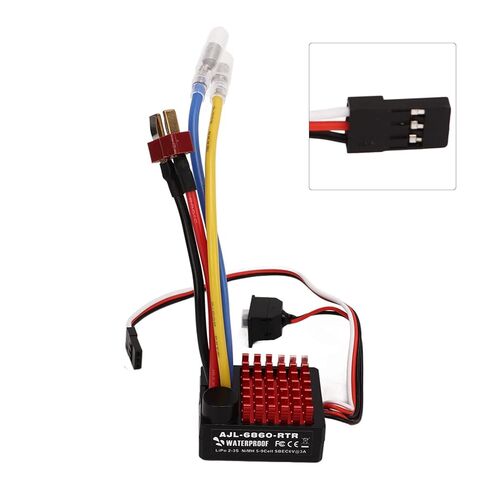

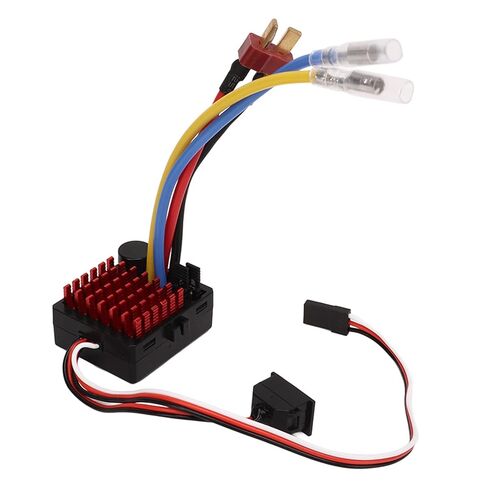

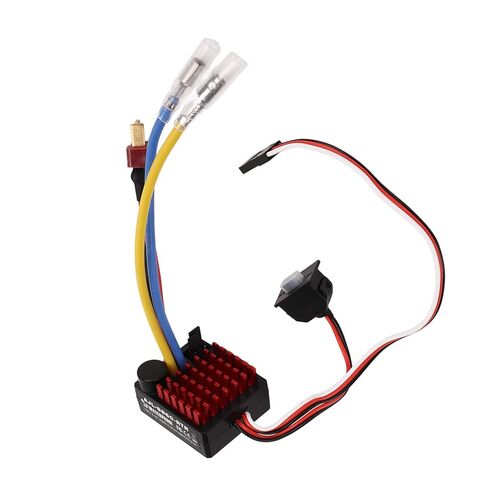

Majatou RC car Brush ESC, 3 Modes 60A Black red Voltage AJL 6860 RTR Electronic Speed Controller, ESC Controller Waterproof RC car Truck RC Ship 540 550 Motor

KWD 7.500
Brand
Majatou
Weight
46 g
– 1 +

Special Features

  • Superior Performance: The brushed ESC features automatic throttle detection, utilizing 8 low-resistances, high-current MOSFET tubes for exceptional performance. It offers strong shock resistances and minimal heat buildup, ensuring reliables under demanding conditions.
  • User-Friendly Settings & Robust Design: The RC ESC features an adjustment bubble for easy parameter settings, making customization simple and convenient. Its waterproof and dustproof integrated design ensures durability and reliability in various environments.
  • Multiple Operating Modes: The RC ESC is equipped with 3 adjustable modes:Forward, brake, reverseForward, brakeForward, reverse with brakeYou can switch between these modes to match your specific needs.
  • Voltage Protection: When the voltage nears the battery protection limit, the speed will gradually decrease until the protection voltage is reached, at which point the power output will drop to zero, and the red light will flash slowly to indicate the safety mode.
  • Temperature Control: The ESC includes temperature protection—if the internal temperature exceeds 100°C, the output power will be reduced to 50%. When the temperature cools down to 80°C, the power output will return to normal.

Description

Specification:
Item Type: RC Brushed ESC
Material: Aluminum Alloy, Plastic
Size: Approx. 37.5x31.5x20mm / 1.48x1.24x0.79in
Color: Black Red
Model: AJL 6860 RTR
Continuous Current, Peaks Current: 60A 480A
BEC Output: 6V 3A
Voltage Range: 2-3S Lipo Battery, 5-9 Cell Nimh Battery
Support Motor: 540 550 750 Motor
Modes: Forward, Backward, Brake; Forward, Brake; Forward, Backward, Intermediate Trigger Brake
Suitable for 1/10 Car Models, Boat Models, Tanks, Etc.
How to Use:
1. First turn off the ESC switch, confirm whether you use the same battery and battery tuning switch, and whether the function matches your model, if not, there can also be adjusted through the tuning.
2. Return the remote control forward wrench to the middle position, control the throttle trim to the middle position, and D/R EPA to the maximum.
3. Open the ESC switch and wait for the ESC self‑test sound to complete before you can operate the battery self test sound description: chirp 1 short sound means NiMH battery, chirp 2 short sound means 2s lithium, chirp 3 short sound means 3S lithium.
packing list:
1 xRC Brushed ESC
1 x Manual
Note:
1. Due to manual measurement, please allow 1‑3mm/0.04‑0.12in error, thank you!
2. Due to the difference between different monitors, the picture may not reflect the actual color of the object.
