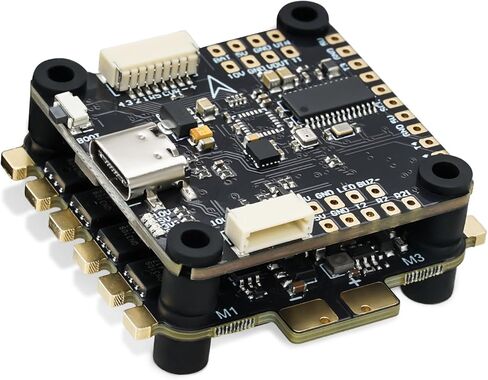

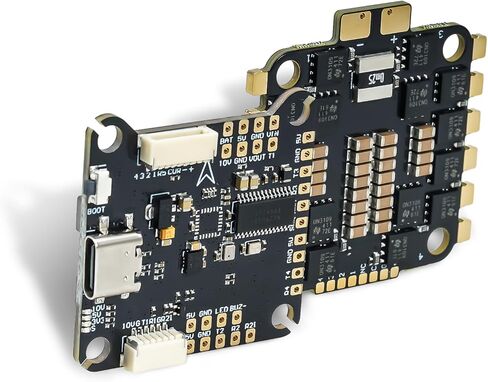

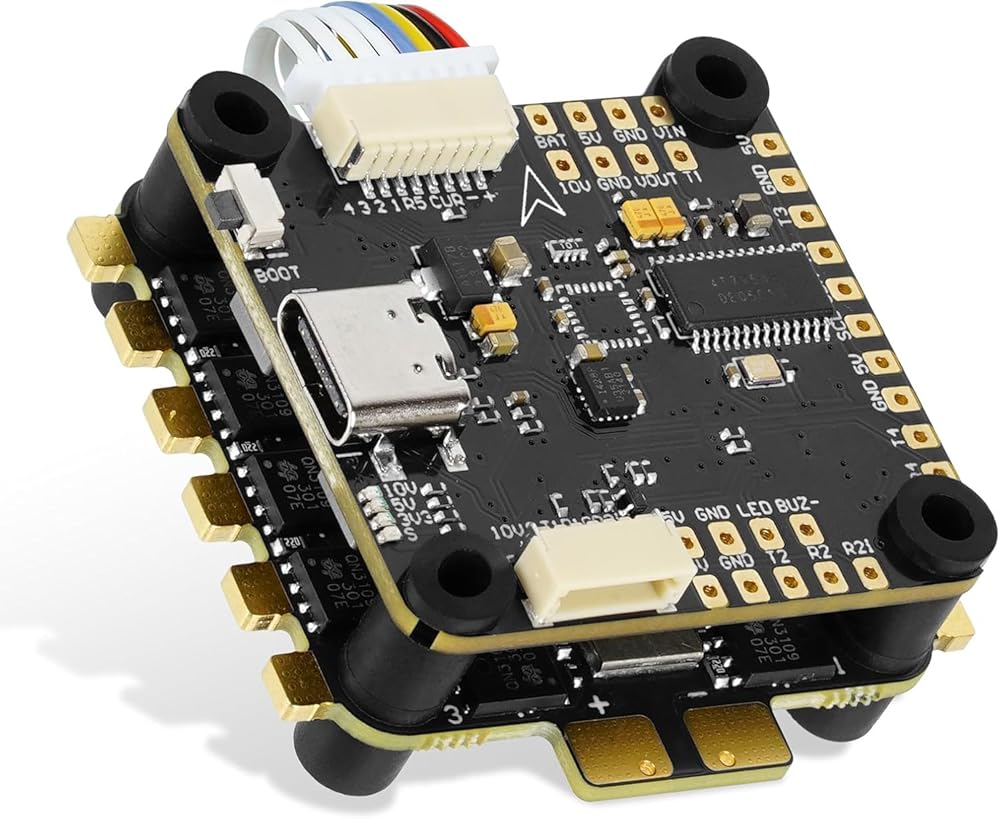

FLASH HOBBY F405 Flight Controller Stack 30 x 30 FPV Controller with 60A 4 in one 3~6S Brushless ESC for Quadcopter Fixed-Wing & Drone

KWD 34.500
Brand
FLASH HOBBY
Weight

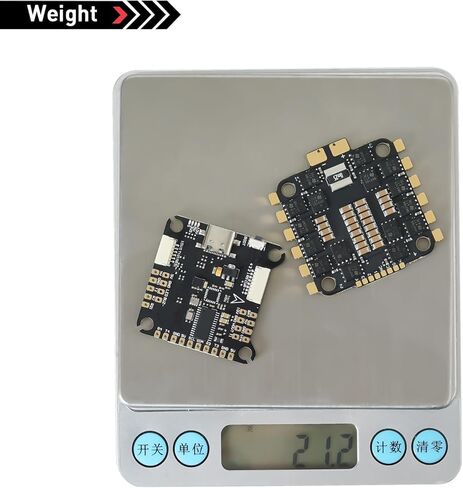

19 g
– 1 +

Special Features

  • [60A 4 in 1 ESC] Come with 60A brushless ESC, the continuous current of 4 in 1 60A ESC is 60A*4, the burst current is 65A for 5 seconds. FC stack is support shot300, 600 PWM control signal
  • [Large Space Pads] The ESC has large space pads to the motors, which makes you solder up your motors more easily and bring a smmothly flight experience

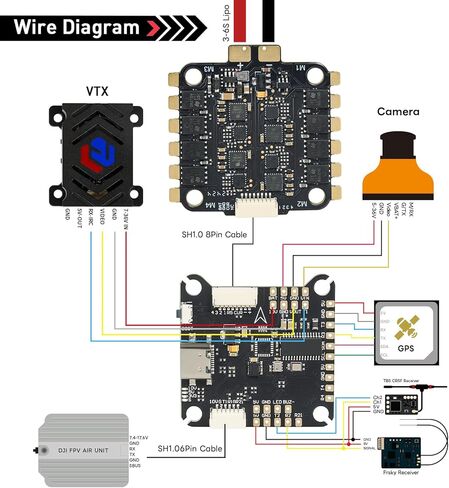

  • [Convenience at Night] Equipped with some pads to suport soldering up the LED strip and GPS, after you solder up them, you can fly your model at night and check where is it, which is very convenience
  • [Connect Way] Built-in type-c socket, you can connect the flight controller stack with your computer to change the data that you want. The firmware is Betaflight Configurator and INAV
  • [Parameter] Built with the firm STM32F405 MCU, MPU6000, Support Dshot300, 600 PWM control signal. Mounting size is 30.5 x 30.5mm and the hole diameter is 4mm, which is suitable for most models in the market

Description

Specification:
F405 Flight Controller Stack:
MCU:STM32F405
IMU(Gyro): ICM42688
Supported Flight Controller Firmware: BetaFlight(Default)
USB Port Type: Type-C
Weight: 7.5g

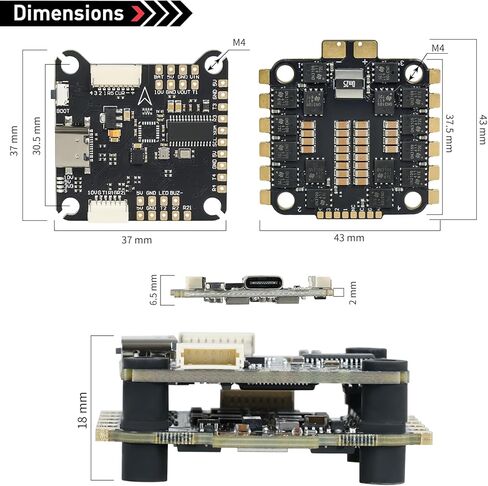

Mounting Size: 30.5*30.5mm
Dimension: 37(L) x 37(W) x 6.6(H)mm

FLASH HOBBY BLS 60A 4-in-1 ESC:
Firmware: BLS 16.7
Weight: 12g
Dimension:42.3(L) * 37(W) * 6.2mm(H)
Mounting Size:30.5 x 30.5mm( 4mm hole diameter)
ESC Protocol: DSHOT300/600
