SpecificationDimension: 125 x 61 x 28mm
Weight: 160g
Output Connector: PH2.0/BT2.0（compatible with A30）
Input Connector: XT60/Type-C（PD3.0）
Screen Size: 1.54-inch IPS display screen 240*240 resolution
Min Input Power: 100W (at max charger load)
Max Output Power: 78W
Max Charging Current: 3.0A x 6
Max Discharging Current: 0.5Ax 6
Input Voltage Range: 7-26V
Operating Temperature: 0°C-75°C
Battery Types: LiPo / LiHV / LiFe 1S
Functions: Charge / Discharge / Storage

InstructionsNever leave the charger unattended. Stop using it immediately if any issues arise and consult the manual or technical support.
Keep the charger away from dust, sand, moisture, rain, high temperatures, direct sunlight, and heavy vibrations.
Ensure the power supply voltage is within the 7-26V range. Do not connect both XT60 and Type-C connectors simultaneously.
Avoid using BT2.0 and PH2.0 on the same port for charging or discharging.
Remove all batteries from the charger before restarting.
Reinserting the Type-C connector too soon may prevent the charger from starting. Wait about 8 seconds before plugging it back in.
Place the charger on a heat-resistant, non-flammable, and insulated surface. Avoid using it on car seats, carpets, cardboard boxes, or similar surfaces. Keep liquids and metal particles.
away from the input ports and vents, and ensure flammable or explosive materials are not nearby.

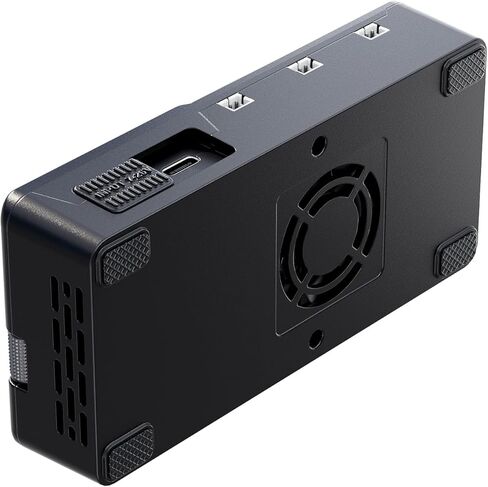

Do not use the charger in high-temperature environments, and keep the bottom ventilation clear to ensure proper airflow.
Ensure you understand the battery's specs and set the charger parameters correctly to avoid damage or dangerous situations like fires or explosions.
Remove the battery promptly after charging or discharging.
For any questions, contact our support team immediately to prevent potential damage.
IncludeW63 Charger x1
Type-C to C Charging Cable x1
User Manual x1
