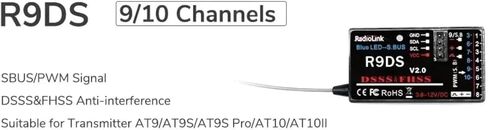

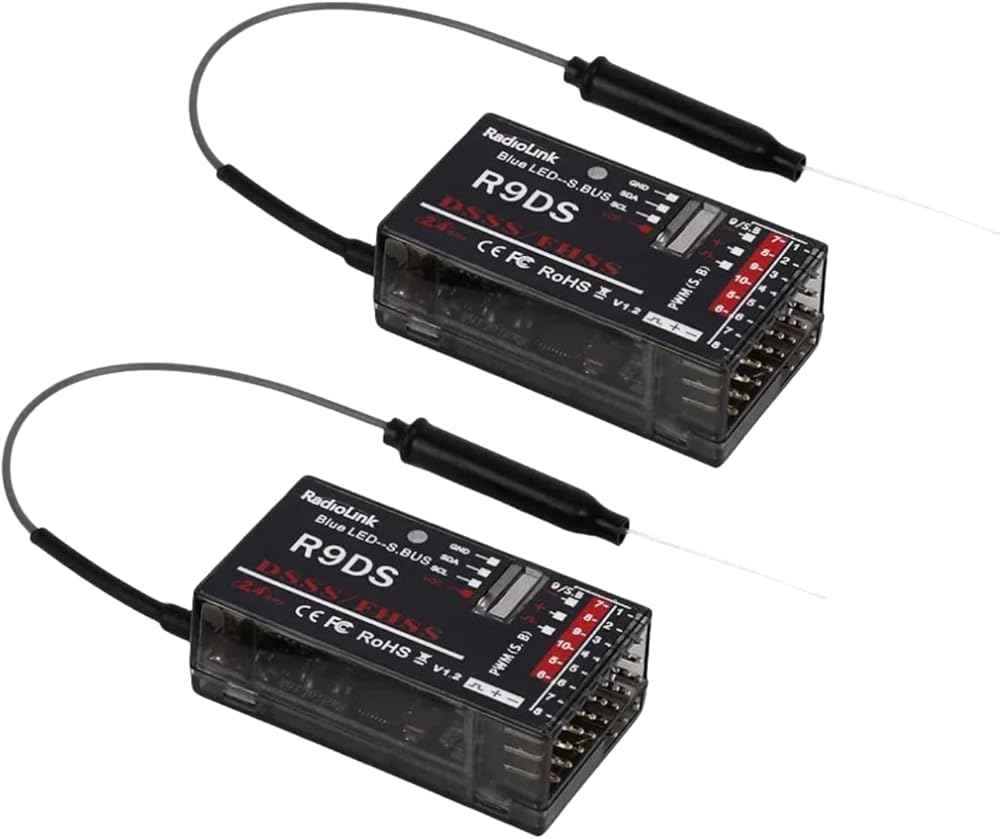

The RadioLink R9DS RC receiver 2-pack brings professional-grade control to your RC setup.
How to Match Code With Transmitter:
1. Place the transmitter and the receiver close to each other within 1 meter.
2. Turn on the transmitter, then power on the R9DS.
3. Connect CH3 of R9DS to ESC.
4.There is a black button on the R9DS, use a thin stick or pen press the binding button in one second until the receiver light starts blinking and release, after about 8 times blinking,match code success when receiver signal LED always on.
SBUS and PWM signal change：
Short press the ID SET switch two times within 1 second, the signal is changed from normal
PWM to SBUS. The red LED indicates the normal PWM and blue/purple LED indicates SBUS signal.
.Note:
1.RD9S only work with Radiolink transmitter : AT9S, AT9S Pro, AT9, AT10, AT10II
2.Short push the ID set switch two times within 1 second it can change signal, while the LED change to red, it indicates PWM signal output, the blue/purple LED indicates SBUS signal output.

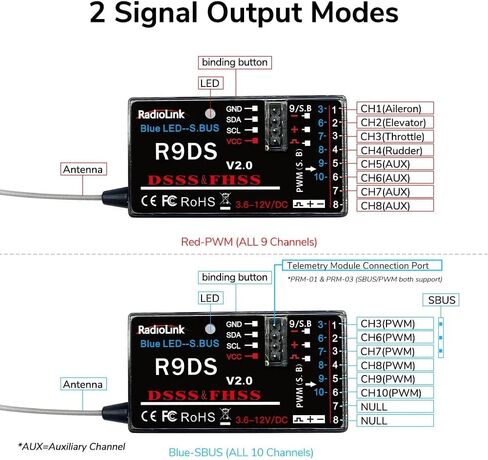

3.SBUS and PWM signal output, you can use 10 channels.Two signal working mode:
(1)PWM signal output working mode：red LED indicates PWM signal output, 9 channels Totally.
(2) SBUS signal output working mode: blue/purple LED indicates SBUS signal output, 10 channels totally.
SBUS and PWM signal possible working at the same time with SBUS signal output working mode.
CH9 output SBUS signal, the original CH1 output CH3 and original CH2 to CH6 output CH6 to CH10 PWM signal at the same time.
R9DS Receiver Specifications:
Signal: SBUS,PWM
Channel: PWM 9 channels, SBUS 10 channels
Control Distance: 900m on ground,1500m air
Working Voltage: 4.8-10V
Working Current: 38-45mA（input voltage: 5V）
Size: 43*24*15mm
Weight: 11g
