HOOYIJ 4 Pack Full Metal Gear TS90MD 9g Digital Micro RC Servo 270 Degree Mini Servos for Arduino RC Smart Car Helicopter Plane Boat DIY Project PWM500-2500（90°- 270° Controllable Angle )

Products Specifcation :
Products Name:TS90MD digital micro servo motor

Apply Environmental Conditon
Storage Temperature Range: -30°C～80°C
Operating Temperature Range: -25°C～70°C
Humidity Range: 65%±10%

Mechanical Specifications
Size: 22.7 x 12.2x 26.8mm / 0.89x0.48x1.05 in
Weight:13.5g±5%

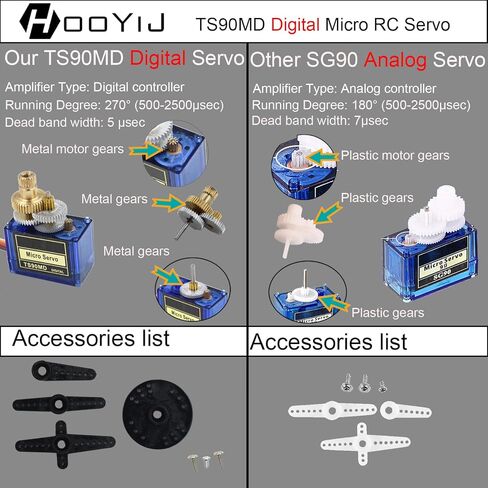

Gear type: Full Metal
Limit angle: 360°
Bearing: No
Horn gear spline: 20T (Diameter: 4.8mm /0.18 in , Height: 4.3mm/1.69in)
Horn type: Plastic, POM
Case: Engineering plastics (PBT)
Connector wire: 250mm±5mm / 9.84in±0.02in
Motor: Carbon brush motor
Splash water resistance: No

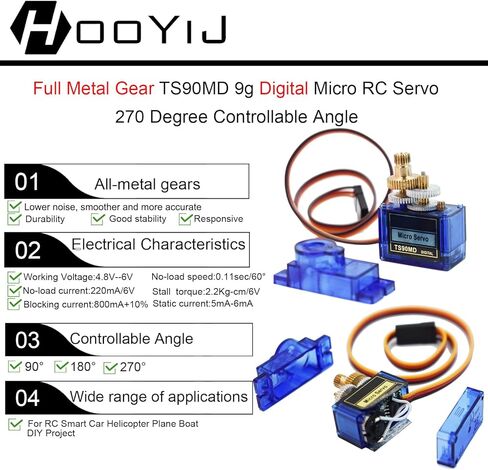

Electrical Characteristics
Operat voltage: 4.8V -6.0V
Idle current: ≤40mA (4.8V) , ≤40mA (6V)
Runnig current:≤200mA (4.8V) , ≤300mA (6V)
No load speed: 0.11sec/60° (4.8V) , 0.09sec/60°(6V)
No-load current : 220mA /6V
Peak stall torque: 2.2kg.cm(6V)
Stall current : Max 580mA ±10% (4.8V) , Max 800mA±10% (6V )

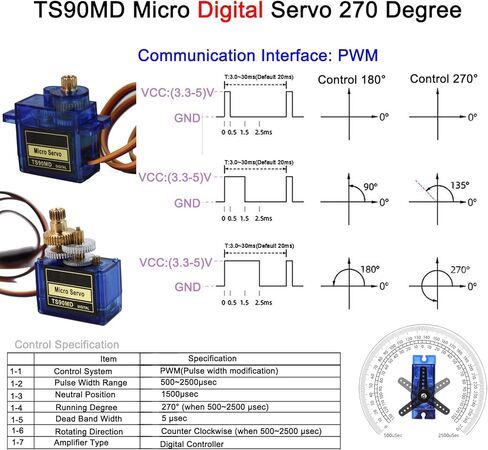

Control Characteristics
Command signal: Pulse width modification
Amplifier type: Digital controller
Signal Period : 20ms
Pulse width range: 500～2500μsec
Neutral position: 1500μsec
Running degree: 270°±3°(when 500～2500μsec)
Running degree: 135°±3°(when 500～1500μsec)
Running degree: 135°±3°(when 2500～1500μsec)
Dead band width: 5 μsec
Rotating direction: Counterclockwise (when 1000～2000μsec)

Connection:
Red wire: Positive +
Black wire: Negative -
Brown wire: Signal S

Package Includes:

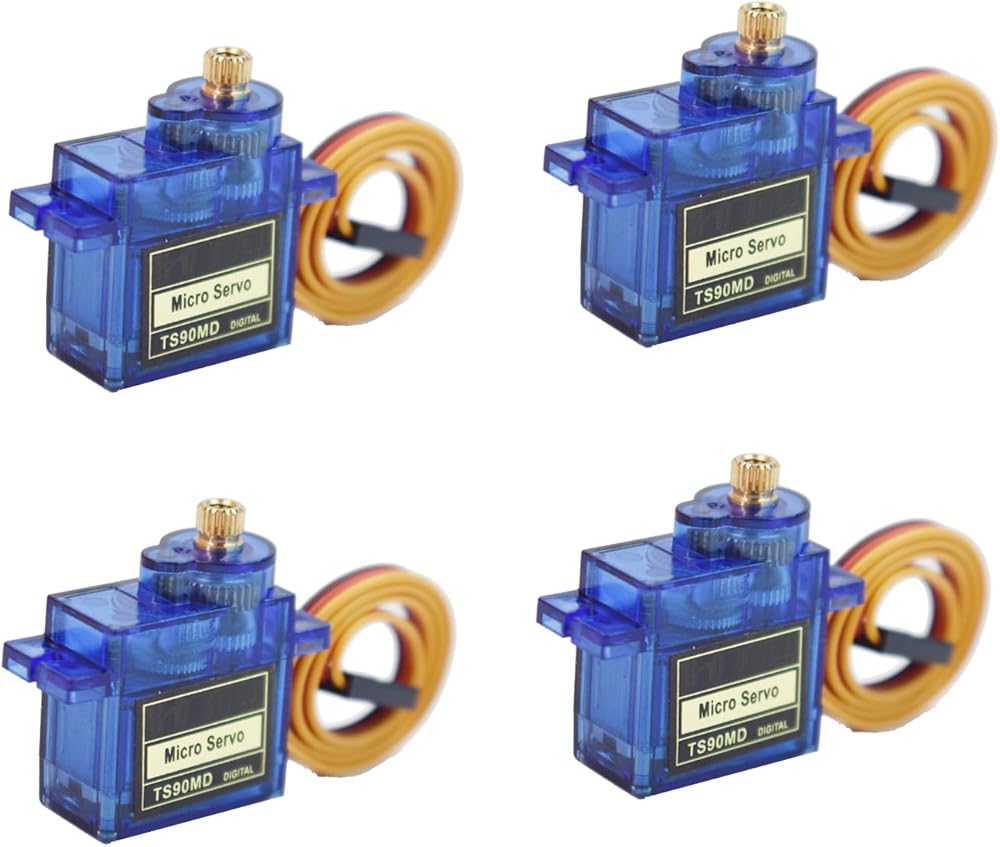

4 X TS90MD 9g Digital Micro RC Servo 270°
4 X Accessories Set

Fridendly Remind
Please use a standard PWM control signal, the signal period is 20ms, the high level time is 0.5-2.5ms.
The control angle of 270° TS90MD 9g servo can be adjusted. It can stop at any angle. Pulse width range is 500-2500μsec.
PWM500-2500 remote control can only have half of the stroke.
