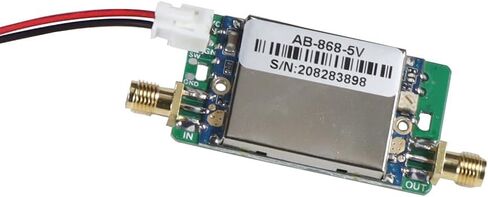

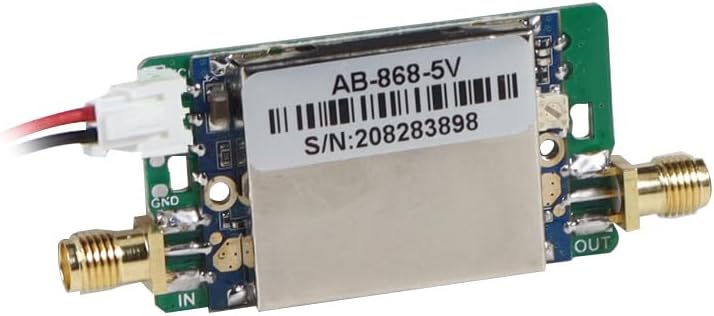

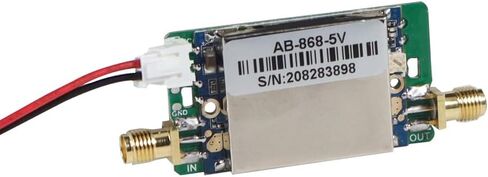

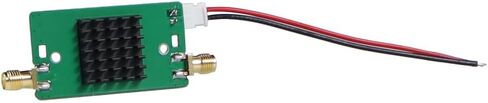

JMT Two-Way Lora Signal Booster, 863-870Mhz / 902-928Mhz Power Signal Amplifier Module WiFi Range Extender Transmitting & Receiving for Lora Router Ethernet RC Drone (863-870Mhz 902-928Mhz Module)

KWD 11.500
Brand
JMT
Weight
50 g
Color863-870Mhz 902-928Mhz Module
– 1 +

Special Features

  • * Applicable Frequency Band* -- Europe 863MHz-870MHz, US M902Mhz-928Mhz frequency bands(No Filter). Its compact size and convenient use make it easier to design products for high-power and long-distance applications in this frequency band.
  • * Performance * -- Built-in intelligent receiving/sending discrimination circuit, does not require front-end equipment to provide receiving/sending switching control signals.The transmission gain is manually adjustable, which is convenient for compatible wireless devices with different transmission powers.
  • * Operating Mode * -- This wireless range extender module works in the receiving state by default and amplifies the received signal. When the front-end equipment is detected to transmit external signals, it will instantly switch to the transmitting and amplifying state.The transmission gain is manually adjustable, which is convenient for compatible wireless devices with different transmission powers.
  • * Warm Tips * -- In order to ensure reliable switching, the transmit power of the front-end equipment needs to reserve at least 3dB margin, that is, the minimum transmit power of the front-end equipment cannot be lower than 1dBm, otherwise it may cause the instability of the receiving/transmitting switch.
  • * Filter Tips * -- The Amplifier Module have no filter, it need to be choiced seperately.

Description

JMT Two-Way Lora Signal Booster, 863-870Mhz + 902-928Mhz Power Signal Amplifier Module WiFi Range Extender Transmitting & Receiving for Lora Router Ethernet RC Drone

Europe 863MHz-870MHz, US M902Mhz-928Mhz frequency bands.

Features:
1) This 868MHz signal amplifier module is a two-way amplified TDD working mode ,that is the transmit power and receiving sensitivity will be amplified equally.
2) The receiving/sending link has a high degree of isolation, and the receiving link can withstand strong external interference without causing self-excitation of the loop.
3) Compatible with various modulation methods such as LORA and FSK/ASK/OOK/MSK/GFSK.

Basic Parameter:
1. Receiving gain: 11dB±2dB
2. Receiving noise figure: at most 2.0dB
3. Transmission gain: 5dB – 11dB (±2dB) adjustable
4. Recognition threshold for receiving and sending switching: -2dBm
5. Input power range: 1dBm-25dBm
6. Operating Voltage:The power supply voltage can be between 3.6V-6.0V, maximum transmission power increases as the supply voltage increases.
7. Maximum transmit power:31.5dBm (1.4w) at 3.7V supply voltage; 33.5dBm (2.3w) at 5.0V supply voltage; 34.5dBm (2.8w) at 6.0V supply voltage

Work status indication:
- Receiving : green light is on, blue light is off
- Transmitting : blue light is on, green light is off
- In TDD working mode, the blue light and green light will flash alternately

Working current:
RX status: 10mA (±3mA)
TX status: at most 800mA (3.7v power supply); at most 1000mA(5.0v power supply); at most 1500mA (6.0v power supply)
