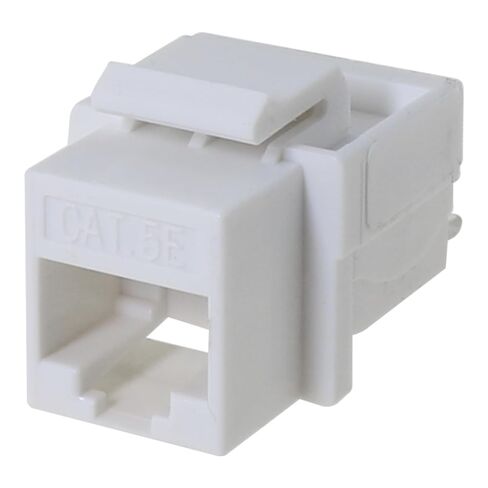

heyous 10PCS Cat5e Tool Free White RJ45 Ladder Jack Adapters Super Category 5 Network Module Connector for Internet Ethernet Cable Snap on Bracket with Color Coded Wiring Pattern

KWD 4
Brand
Heyous
Weight
59 g
– 1 +

Special Features

  • Material: Made of high impact polycarbonate to withstand daily wear and tear. Gold plated contacts and a simple snap on retaining clip ensure a secure and corrosion resistant connection. In addition to error free data transfer.
  • Function: For 5e Category 5 cable, the RJ-45 modular plug is an 8 position, 8 pole (8P8C) designed for computer networks.

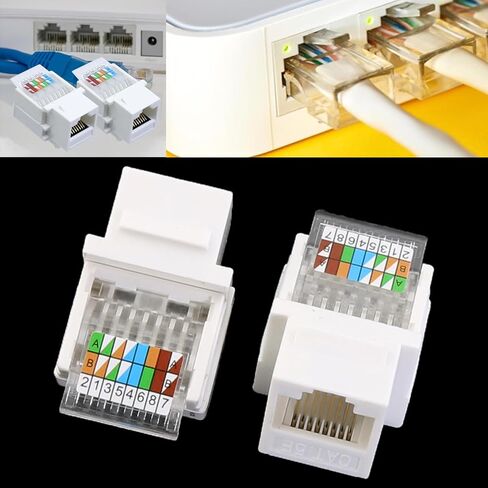

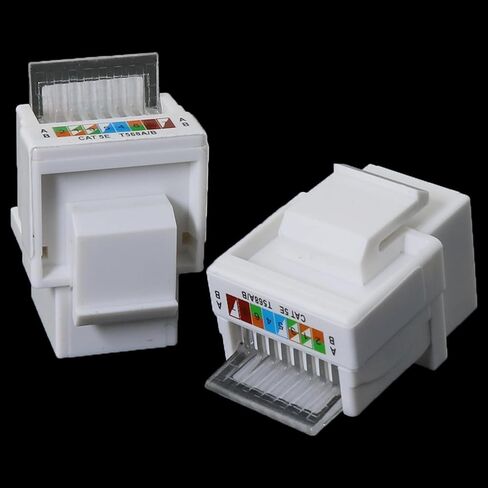

  • Use: The unique tool less design eliminates the need for crimping tools. Simply insert the wires according to color coding and press down on the cover.568A and 568B color wiring diagrams are integrated into the cover for easy installation.
  • Applications: for engineering network cabling, home network cabling, etc. Can be used with Cat5e, Category 5 Ethernet cable.
  • Packing: you will receive 10pcs Cat5e super category 5 network cable module

Description

Specifications:
DC resistance: Less than 300 milliwatts
Contact resistance: Less than 20 milliwatts
Voltage withstand strength: 1000V(AC750V) 1min without breakdown and flying arc
Insulation resistance: >/= 1000 milliwatts
IDC terminal: phosphor bronze, 22-26AWG wire
Plugs and receptacles inserted more than 1,000 times

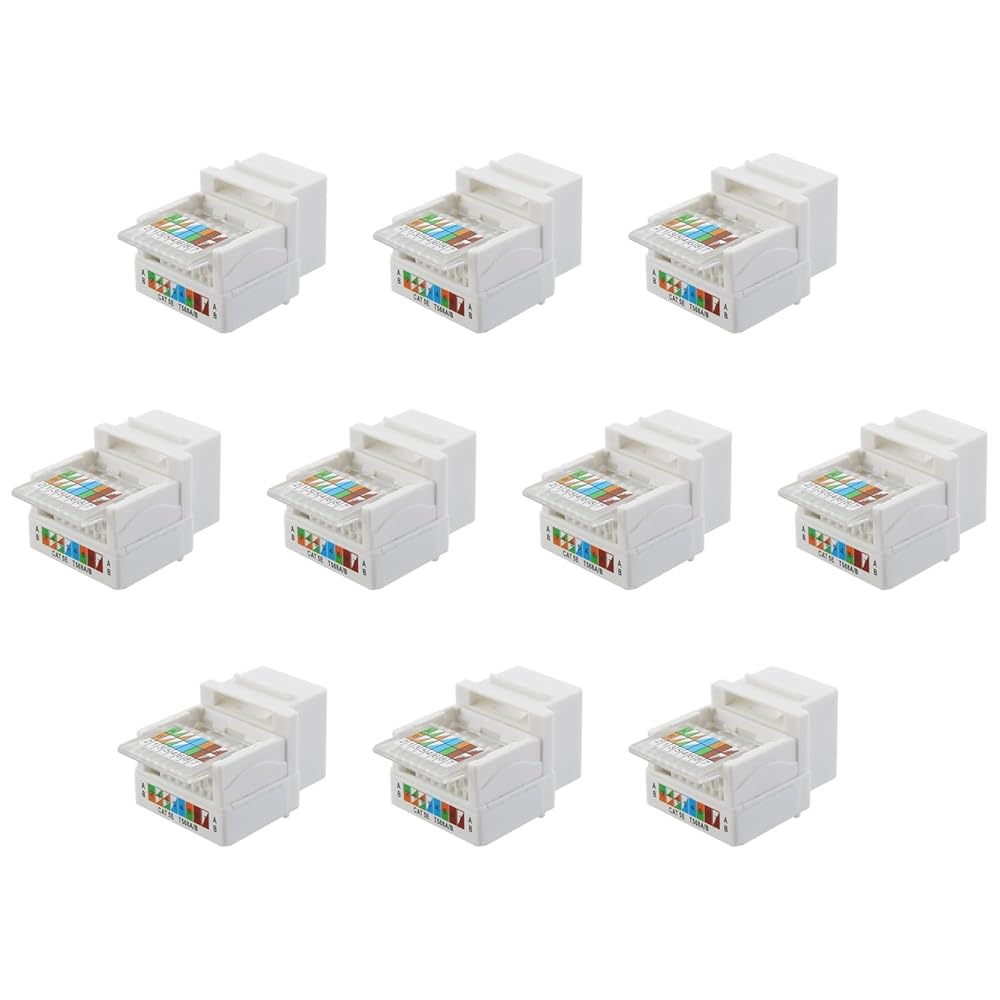

Package contents: 10pcs Cat5e white RJ45 ladder jack
Installation instructions:
1.Strip the cable jacket to expose about 3/4 inch of wires.
2.Insert two pairs of wires into the holes on the top cover.
3.Close the top cover and securely fasten the plug.
4.Remove the top cover and place the other 2 pairs of wires into the holes.
5.Close the top cover and fasten the plug securely.

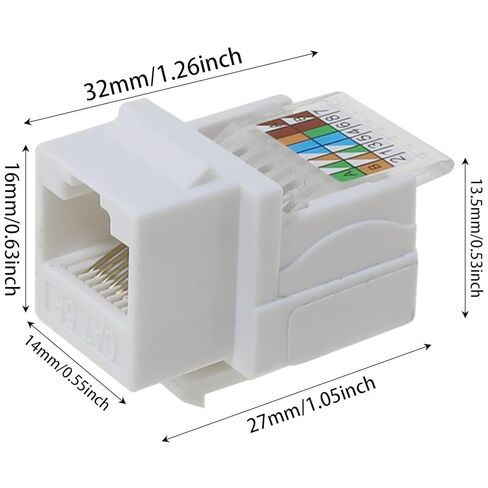

Note: Please allow 1 to 3mm error due to manual measurement.
