Feature
1. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
3. 264KB of SRAM, and 2MB of on-board Flash memory
4. Type-C connector, keeps it up to date, easier to use
5. Onboard 1.28inch 240×240 pixels 65K colorful IPS LCD display for clear color pictures
6. Battery recharge/discharge header, suitable for mobile devices

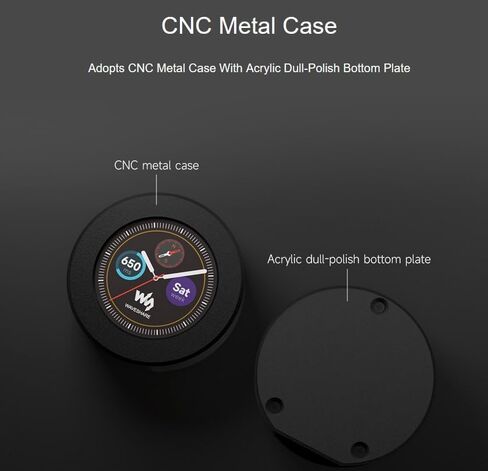

7. Adopts CNC metal case with Acrylic dull-polish bottom plate

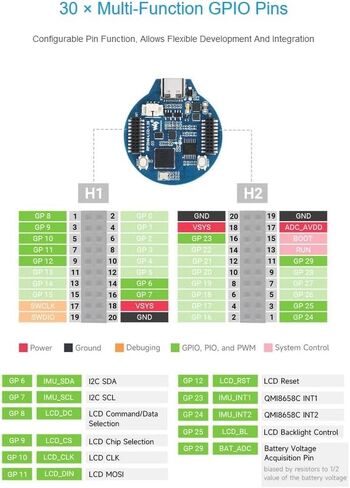

8. All GPIO pins are adapted through 1.27 pitch female headers (There are 30 pins in total, but some pins have been connected to the internal circuit, please refer to the wiki for details when multiplexing)
9. USB 1.1 with device and host support
10. Low-power sleep and dormant modes
11. Drag-and-drop programming using mass storage over USB
12. Accurate clock and timer on-chip
13. 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
14. Temperature sensor
15. Accelerated floating-point libraries on-chip
16. 8 × Programmable I/O (PIO) state machines for custom peripheral support

Provide Online Wiki Development Resources /User Manual : bit.ly/49nqbYJ

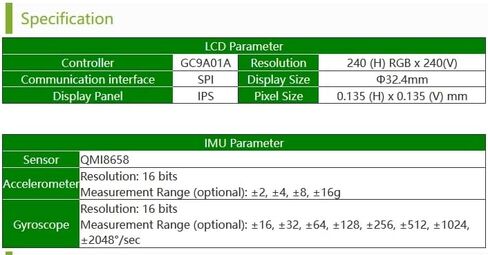

LCD Parameter
Controller: GC9A01A
Resolution: 240 (H) RGB x 240(V)
Communication interface: SPI
Display Size: Φ32.4mm
Display Panel: IPS
Pixel Size: 0.135 (H) x 0.135 (V) mm

Package Content
RP2040-LCD-1.28-B x1
