6pcs 4 Channel Logic Level Converter Model 3.3V to 5V, 5V to 3.3V Bi-Directional Shifter for IIC UART SPI Bus Signals Serial Communication

KWD 4
Brand
HJTOOK
Weight
15 g
– 1 +

Special Features

  • 4-Channel Logic Level Converter, for bidirection or unidirectional transformation between 5.0V high level logic and 3.3V low level logic.
  • Compatible with breadboard, can be directly inserted into the breadboard to use, conveniently applied to Arduino etc. projects .
  • Provides the feasibility of direct serial level communication between 5V and 3.3V in different equipment, playing a role in bridging.

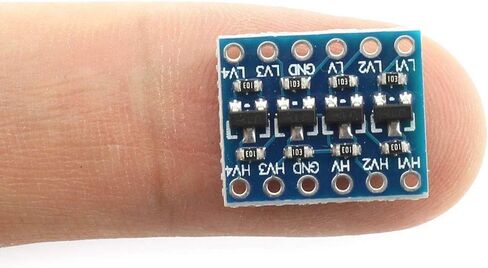

  • Small size module, 1.5x1.3cm, Max Stable Communication Baud Rate: 28800bps.
  • Realize the bilateral switching of UART, IIC, 1-WIRE, SPI etc. bus signals 3.3V-5V level, applied to SCM and downloader, application module serial communication etc.

Description

Product Description:

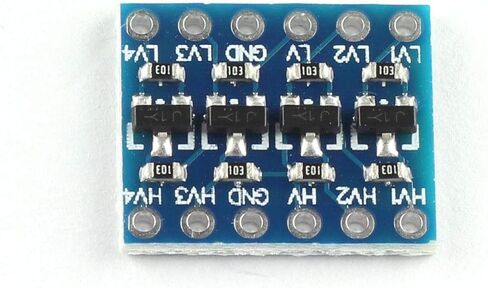

Product Name: 4-Channel Logic Level Converter
Module Size: 1.5x1.3cm

This module provides the feasibility in different equipment of 3.3V and 5.0V, playing a role in bridging, can realize the bilateral switching of UART, IIC, 1-WIRE, SPI etc. bus signals 3.3V-5V level.

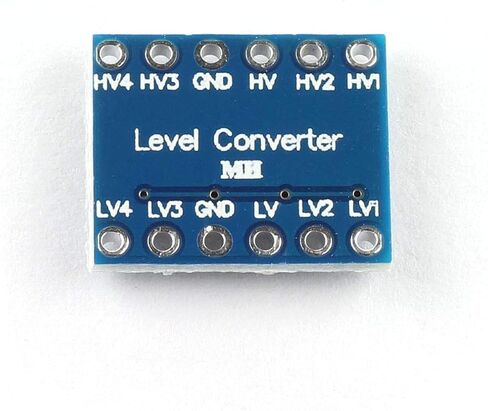

Wiring:
HV connect to 5V power supply
LV connect to 3.3V power supply
GND connect to negative power supply
LV1-LV4 input or output 3.3V TTL
HV1-HV4 input or output 5V TTL

Application:
5.0V SCM and 3.3V SCM Serial Communication
3.3V Serial Downloader and 5.0V SCM Serial Communication
5.0V SCM and 3.3V Application Modules Serial Communication

Compatibility:
AVCC connect to 5V System Power
ASCL connect to 5V System SCL
ASDA connect to 5V System SDA
AGND connect to 5V System GND
BVCC connect to 3V System Power
BSCL connect to 3V System SCL
BSDA connect to 3V System SDA
BGND connect to 3V System GND

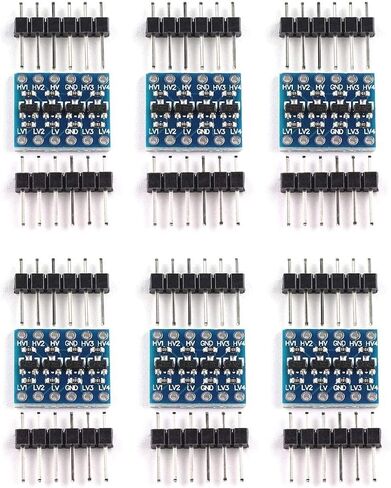

Package:
6pcs 4-Channel Logic Level Converter
6pcs Single Row Pin Header
