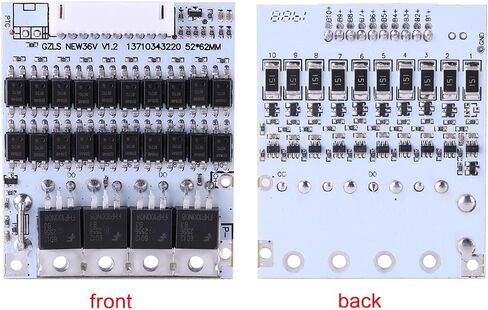

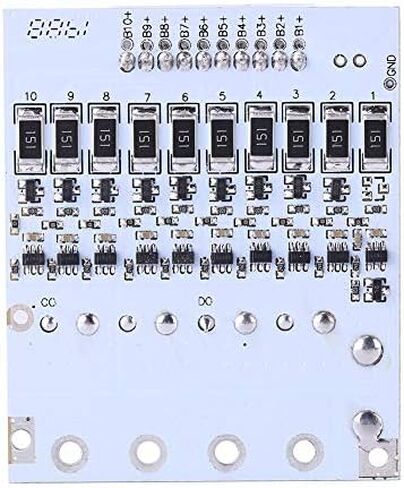

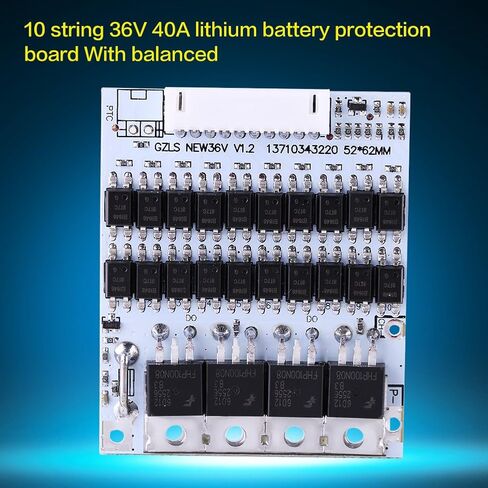

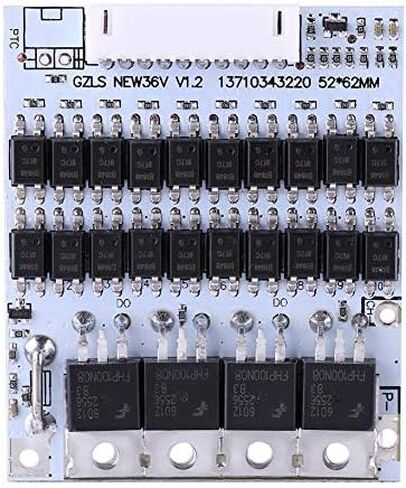

36V 40A Lithium Battery Board, 10s Battery Board with Balance for Ternary Cobalt Batteries

KWD 11
Weight
40 g
– 1 +

Special Features

  • [With Balance Function]: This lithium battery board has a balance function, which can achieve the same voltage and voltage, thereby improving the performance of the entire battery
  • [Charging and Discharging Separate Ports]: This 36v battery adopts a split port design, which requires separate charging and discharging positive and negative electrodes which is suitable for 10 lithium-ion batteries and can be used for ternary batteries
  • [Discharge ]: This 10s bluetooth has stable and discharge functions, such as over-discharge
  • [Batteries Must be Well Matched]: The better the battery consistency, the farther you can run, and the best performance of this battery board with balance
  • [Parallel and then Series]: The batteries should be connected in parallel and then connected in series, and ensure the welding is correct; Do not use screws to easily burn out the IC of this 10s battery board

Description

Features:
- The board is for 10 series Li-ion batteries, which can be used for ternary batteries, manganese batteries and cobalt batteries.

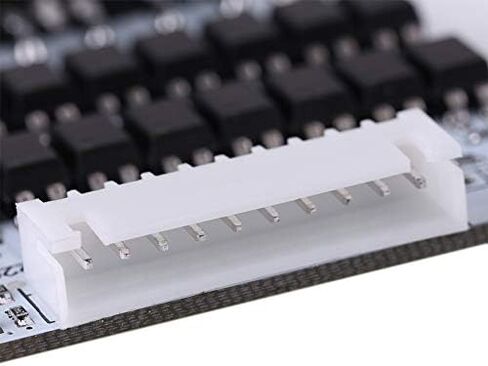

- Charging connector and discharging connector are separated, discharging current is 18A.
- Stable various protective functions for charging and discharging, such as overcharge , over-discharge and short circuit .
- It has balance function which would ensure each battery cell being fully charged at same time.
- Choosing the correct board and applying it appropriately is to the longevity your batteries.

Specifications:

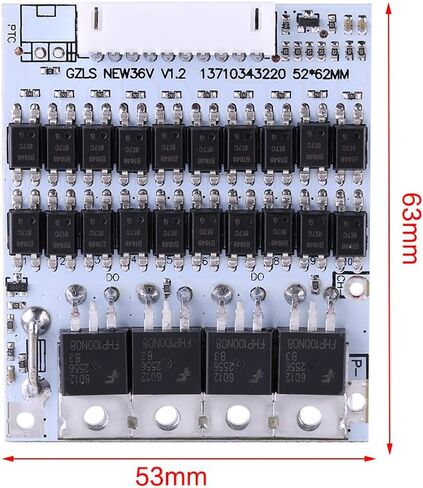

Size: 53*63mm/2.08*2.48"
Used for: 36V10Sternary/manganese /cobalt batteries
Single Overcharge Voltage: 4.25V±0.05V
Single Overcharge Recovery Voltage: 4.10-4.00V
Single Over-discharge Voltage: 2.8V ±0.1V
Single Over-discharge Recovery Voltage: 3.0V±0.1V
Consumption Current: ≤300UA
Short-circuit Current: 40A±3A
Short-circuit Time: 500MS
Temperature : 55/65/75℃
Discharge Current: 18A
. Instantaneous Current: 40A
Single Balance Voltage: 4.19V±0.02V
Single Balance Current: ≤55MA
Current: ≤10A

Package Includes:

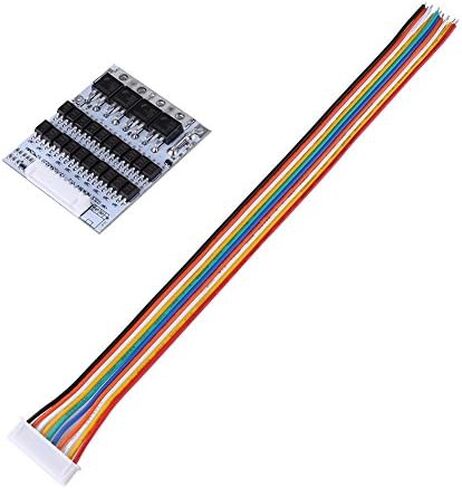

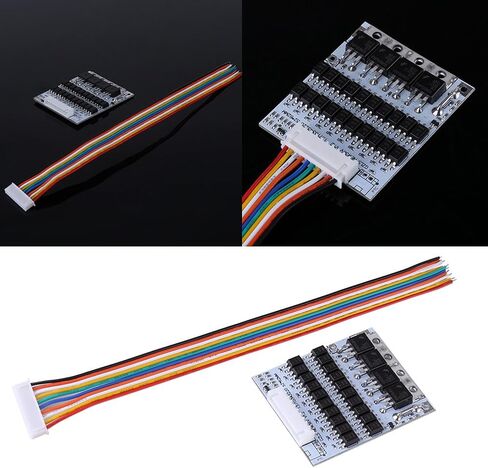

1 * Battery Board
