Features:
1. This module has a voltage display function that can display input voltage and output voltage
2. The test accuracy is high, and the output voltage can also be adjusted manually

How to Use:

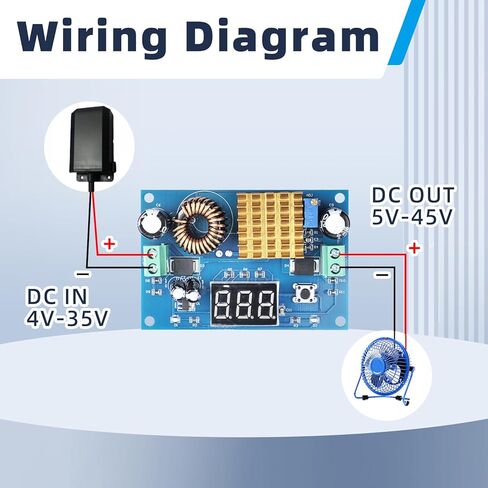

1. Connect the input end of the module to the power supply. The applicable power supply voltage is 4-35V. Please pay attention to the positive and negative poles;
2. Turn on the power switch, and the screen will display the boosted output voltage;
3. If the output voltage does not meet the working voltage of the load, the voltage can be adjusted through the potentiometer;
4. Connect the output end to the load, please pay attention to the positive and negative poles;
5. Press the voltage switch key to switch between output voltage and input voltage.

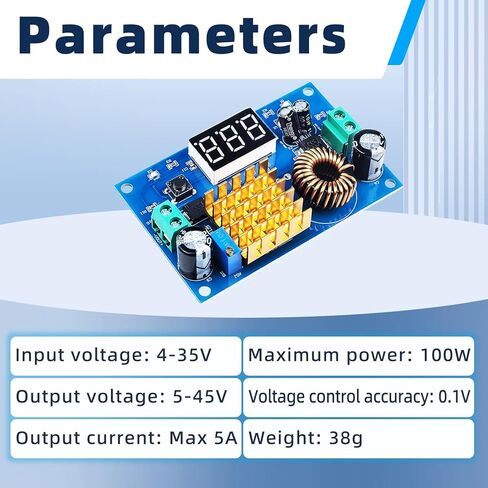

Specification:
Input voltage: 4-35V
Output voltage: 5-45V
Output current: Max 5A
Maximum power: 100W
Voltage control accuracy: 0.1V

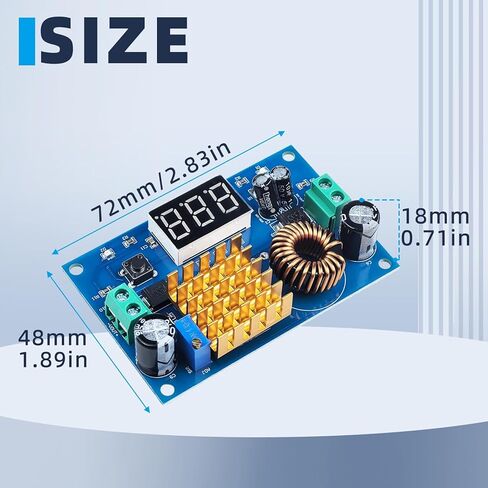

Size: about 72*48*18mm

Package Content:
1 * Boost Converter

Note:
1. This is a boost module so output voltage should be higher than input voltage.
2. Peak output current is less than 5A.
3. This kit requires professional knowledge and ability, please make sure you know how to use it.
