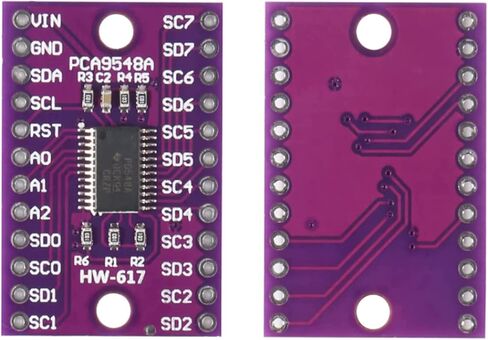

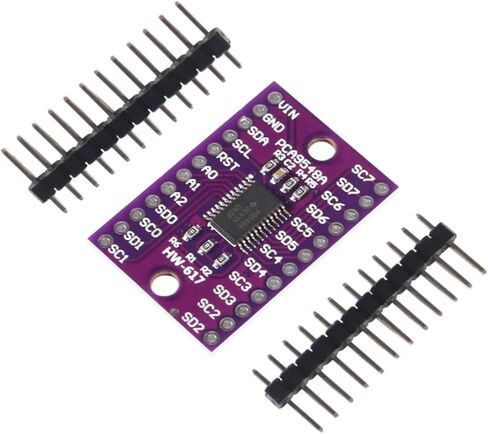

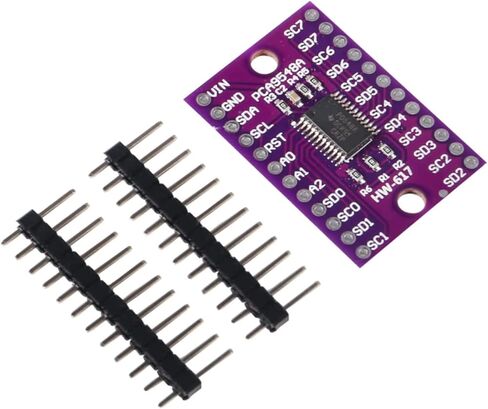

6pcs TCA9548A لوحة التوسع I2C IIC 8 لوحة انهيار تعدد القناة مع 20 نقطة/كابل

KWD 4
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

  • Chip: TCA9548A
  • Working Voltage: 1.65-5.5V
  • Interface: I2C IIC
  • Selectable I2C Address: 0x70-0x77
  • TCA9548A Adapter is Connected to An I2C Device with Multiple Identical Addresses on the Same I2C Port on the main control board for Normal Communication and Use
  • Instructions: The /RESET, SDA, SCL, A0, A1, and A2 Pins On the Board are Connected to the Pull-Up 10K Resistor, No Need to Connect Externally

وصف

Features:
The Adapter is Connected to an I2C Device with Multiple Identical Addresses on the Same I2C Port On the Main Control Board for Normal Communication and Use
8 I2C Interfaces On One Expander, and 8 Bidirectional Transfer Wwitches that Can be Controlled by I2C Bus
Compatible with IIC bus and system management bus (SMBus), active low reset input, support for hot insertion, low standby current, no glitch during power-up, support for voltages between 1.8V, 2.5V, 3.3V and 5V buses Level shifting
Depending on the contents of the programmable control registers, any single SCn/SDn channel or combination of channels can be selected.All I/O pins are 5V withstand voltage
Package Contents::
6x TCA9548A I2C IIC Multiplexer Breakout Board 8 Channel Expansion Board
1x 20pin Cable 20cm
