5Pcs RC Servo Tester 3CH Digital Multi ECS CCPM Consistency Speed Controller Checker Adjustment Steering Gear CCPM Master Checker Tester for RC Plane Boats Cars

KWD 4.500
Brand
Azuocn
Weight
46 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Contains 5 simple servo testers,Single tester size : 46 x 32 x 17 mm / 1.8inx 1.26in x 0.66in;Individual tester weight : 8g/0.28oz

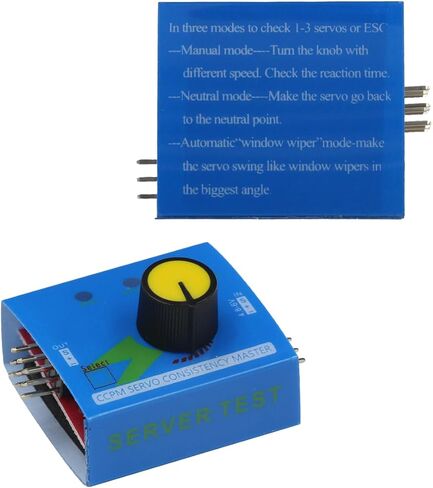

  • Adjustment mode: manual, automatic, center
  • This tester can be connected to three sets of servos or ESCs, single-chip microcomputer control, good stability, high precision, rotary knob can detect the servo.
  • If you connect an electronic governor (brushed or brushless), you can get rid of the remote control device for manual speed regulation, which is very practical to check the performance of the governor and motor, and there is no need to connect the remote control and receiver cumbersomely. It is equivalent to a manual regulator function, simulating the transmitter rudder by means of a knob.
  • Output: less than 15mA (5.0); Input: DC 4.8-6.0V; Output signal: 1.5ms±0.5ms

Description

Product Description:
The tester can be used as a signal generator for an electric speed controller (ESC), and you can test your motor system without the use of transmitters and receivers. The tester can connect up to 3 servos at the same time and test them, and 3 ESCs can be connected to test their reaction time separately.
Name: ESC Servo Tester
Output: ≤15mA (5.0)
Voltage consumption: DC4.8-6V
Output signal: 1.5ms±0.5ms

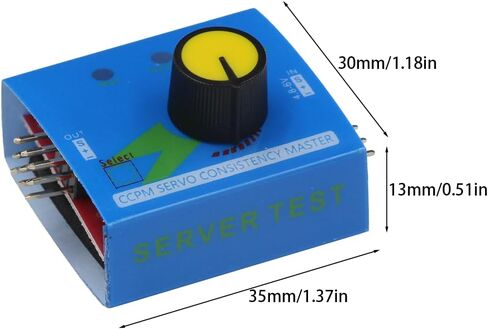

Dimensions: 46 x 32 x 17 mm / 1.8" x 1.26 "x 0.66".
Weight: 8g/0.28oz

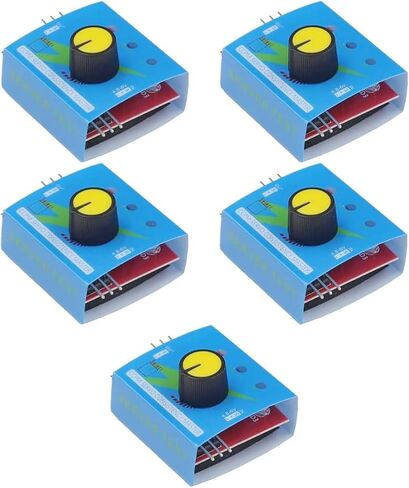

Commodities include: 5pcs RC tester
